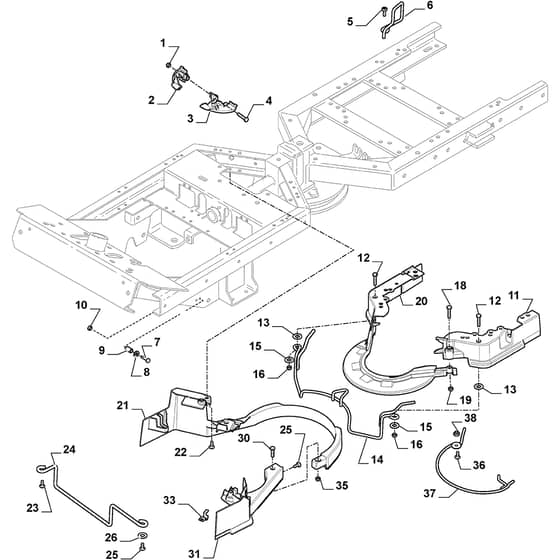

PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower Belt Protection Diagram

Name: PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower Belt Protection Diagram
SKU: park_520_dp_2f6226281_s16_belt_protection-group
Price: 1.29 GBP
Availability: InStock

Part No. park_520_dp_2f6226281_s16_belt_protection-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower Belt Protection Diagram

Description

Stiga PARK 520 DP Parts Diagram

Product Name - PARK 520 DP

Model Year - 2016-2017

Model Type - P 901 CH D

Art.N - 2F6226281/S16

Engine Model - Hatz 1B50V Diesel

	Part No.	Details
2	MO337600010/0 Available to backorder	Protection	£4.08 £3.40
3	MO337600011/0 Available to backorder	Protection	£3.92 £3.27
7	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
9	MO1134-1565-14 Available to backorder	Spacer	£1.84 £1.53
11	MO337060001/1 Available to backorder	Belt Cover	£6.90 £5.75
12	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
13	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
14	MO337785113/1 Available to backorder	Support	£58.62 £48.85
15	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
20	MO337060000/2 Available to backorder	Belt Cover	£7.46 £6.22
21	MO337060002/0 Available to backorder	Belt Cover	£11.12 £9.27
23	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
24	MO137294100/0 Available to backorder	Belt Guide	£26.96 £22.47
25	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
26	MO112523050/0 In stock	Washer	£1.57 £1.31
30	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
31	MO337060003/0 Available to backorder	Belt Cover	£6.76 £5.63
33	MO322545159/0 Available to backorder	Plate	£1.63 £1.36
35	MO112154510/0 In stock	Nut	£1.55 £1.29
36	MO112727796/0 Available to backorder	Screw	£1.63 £1.36
37	MO137294105/0 Available to backorder	Belt Guide	£32.38 £26.98
38	MO112154330/0 In stock	Nut	£1.55 £1.29
