PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower Assembly Parts Diagram

Description

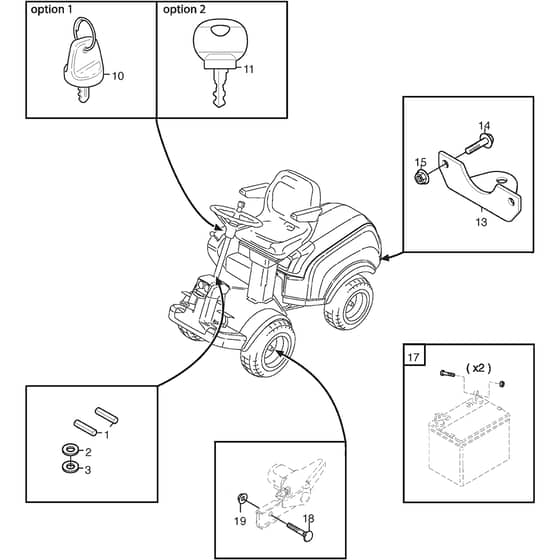

Stiga PARK 520 DP Parts Diagram

Product Name - PARK 520 DP

Model Year - 2016-2017

Model Type - P 901 CH D

Art.N - 2F6226281/S16

Engine Model - Hatz 1B50V Diesel

	Part No.	Details
1	MO9595-0262-00 In stock	Locating Pin	£1.79 £1.49
2	MO9699-0103-02 Available to backorder	Washer 1.0 mm	£2.12 £1.77
3	MO9699-0114-02 Available to backorder	Washer 1.0 mm	£1.97 £1.64
10	MO1134-4734-01 In stock	Ignition Key	£17.33 £14.44
11	MO118210027/0 Available to backorder	Ignition Key only for Diesel models	£34.98 £29.15
13	MO1134-5512-01 Available to backorder	Towing Plate	£20.40 £17.00
14	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
15	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
17	MO1134-6113-01 Available to backorder	Screw	£12.80 £10.67
18	MO9898-1035-16 Available to backorder	Screw	£2.82 £2.35
19	MO9739-1031-22 In stock	Nut	£1.97 £1.64
