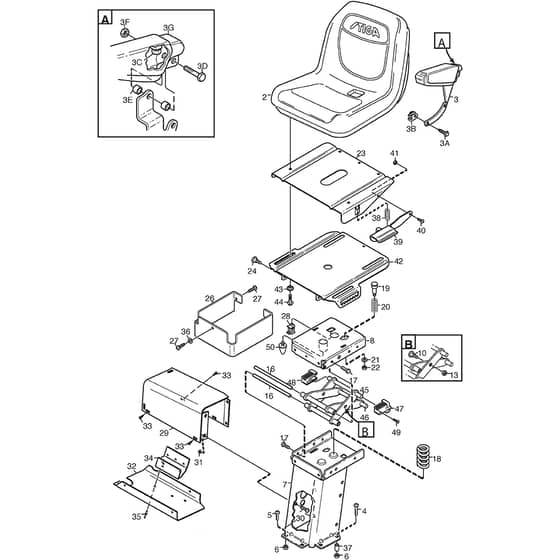

Stiga PARK 520 DP Parts Diagram

Product Name - PARK 520 DP

Model Year - 2014-2015

Model Type - P 901 CH D

Art.N - 13-6318-31

Engine Model - Hatz 1B50V Diesel

Be the first to review this product

0 product questions

	Part No.	Details
3	MO387185100/1 Available to backorder	Arm-Rest Assy	£218.21 £181.84
3	MO9997-1045-12 Available to backorder	Screw	£2.81 £2.34
3	MO112156602/0 Available to backorder	Lock Nut	£1.40 £1.17
3	MO1139-0010-01 Available to backorder	Screw	£3.17 £2.64
3	MO1139-0011-01 Available to backorder	Nut	£3.10 £2.58
3	MO1134-5094-01 Available to backorder	Spacer 3E on the drawing	£10.42 £8.68
4	MO9897-0880-12 Available to backorder	Screw L . 80 mm	£1.97 £1.64
7	MO1137-0057-01 Available to backorder	Seat Bracket Assy	£121.07 £100.89
8	MO387773509/0 Available to backorder	Bracket From 01-9-2014	£89.11 £74.26
8	MO1137-0058-01 Available to backorder	Upper Plate Assy To 31-8-2014	£87.28 £72.73
16	MO1137-0263-01 Available to backorder	Shaft	£9.28 £7.73
17	MO9958-0820-16 Available to backorder	Screw	£1.97 £1.64
18	MO1134-4160-01 Available to backorder	Spring	£24.64 £20.53
19	MO1134-4153-01 Available to backorder	Push Pin	£16.80 £14.00
20	MO1134-4159-01 Available to backorder	Spring	£13.19 £10.99
21	MO112523060/0 In stock	Washer	£1.55 £1.29
22	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
23	MO1134-6090-01 Available to backorder	Slide Plate-Upper	£98.54 £82.12
24	MO1134-0240-00 In stock	Screw	£8.80 £7.33
26	MO1137-0038-01 Available to backorder	Cover	£39.42 £32.85
28	MO1134-3156-01 Available to backorder	Switch	£43.64 £36.37
29	MO1134-3990-01 Available to backorder	Attachment-Side Panel	£175.97 £146.64
30	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
31	MO112293201/0 In stock	Nut	£1.69 £1.41
32	MO1134-4130-01 Available to backorder	Cover Lower	£39.42 £32.85
33	MO9840-8013-16 Available to backorder	Screw	£1.55 £1.29
34	MO1134-4135-01 Available to backorder	Relay Holder	£16.68 £13.90
35	MO9632-0522-00 Available to backorder	Pop Rivet	£2.12 £1.77
36	MO9699-0087-02 In stock	Washer	£2.12 £1.77
37	MO1134-1565-08 Available to backorder	Spacer	£8.65 £7.21
38	MO1134-3262-01 Available to backorder	Spring	£8.45 £7.04
39	MO1134-6073-01 Available to backorder	Handle Assy	£39.42 £32.85
40	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
41	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
42	MO387773513/0 Available to backorder	Bracket From 01-9-2014	£94.32 £78.60
42	MO1137-0055-01 Available to backorder	Slide Plate-Lower Assy To 31-8-2014	£97.14 £80.95
43	MO1134-6078-01 Available to backorder	Flange Washer	£5.48 £4.57
44	MO9959-0820-16 In stock	Screw	£1.55 £1.29
45	MO1137-0031-01 Available to backorder	Link Assy A	£64.75 £53.96
46	MO1137-0261-01 Available to backorder	Link Assy B	£64.75 £53.96
47	MO1137-0033-01 Available to backorder	Block	£2.95 £2.46
48	MO1137-0033-02 Available to backorder	Block	£2.95 £2.46
49	MO9838-9516-12 Available to backorder	Screw	£2.12 £1.77
50	MO1137-0064-01 Available to backorder	Rubber Cone	£40.54 £33.78
