PARK 520 DP - 2014-2015 - 13-6318-31 - Stiga Front Mower Body Works 02 Diagram

Name: PARK 520 DP - 2014-2015 - 13-6318-31 - Stiga Front Mower Body Works 02 Diagram
SKU: park_520_dp_13_6318_31_body_works_02-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

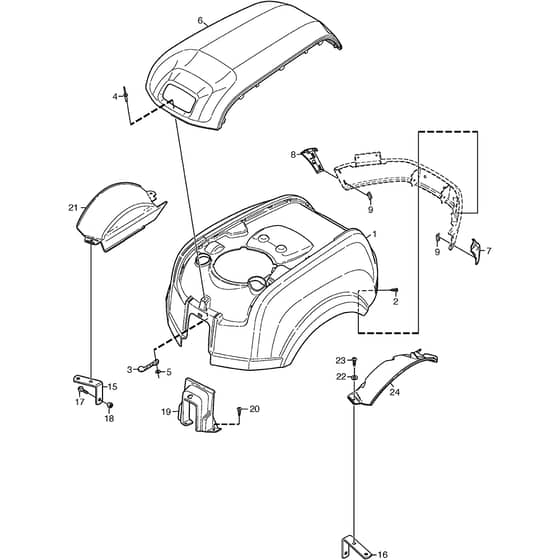

PARK 520 DP - 2014-2015 - 13-6318-31 - Stiga Front Mower Body Works 02 Diagram

Description

Stiga PARK 520 DP Parts Diagram

Product Name - PARK 520 DP

Model Year - 2014-2015

Model Type - P 901 CH D

Art.N - 13-6318-31

Engine Model - Hatz 1B50V Diesel

Be the first to review this product

0 product questions

	Part No.	Details
1	MO337076805/0 Available to backorder	Engine Hood To 31-August-2014	£309.70 £258.08
3	MO1134-9028-01 Available to backorder	Rubber Strap (3 Pcs) Sats 3 st.kit of 3	£25.86 £21.55
4	MO9632-0513-00 Available to backorder	Pop Rivet	£1.39 £1.16
5	MO9699-0120-02 Available to backorder	Washer	£2.40 £2.00
6	MO1134-6026-01 Available to backorder	Engine Cover	£132.41 £110.34
7	MO337110336/0 Available to backorder	Bumper End-Lh	£14.64 £12.20
8	MO1134-6027-02 Available to backorder	Bumper End-Rh	£14.51 £12.09
9	MO1134-6310-01 Available to backorder	Clip	£1.90 £1.58
15	MO1134-4012-03 Available to backorder	Support. Right	£18.43 £15.36
16	MO1134-4012-04 Available to backorder	Support. Left Not for Diesel Version	£18.43 £15.36
17	MO9959-0820-16 In stock	Screw	£1.55 £1.29
18	MO112293201/0 In stock	Nut	£1.69 £1.41
19	MO1134-6241-01 Available to backorder	Hood Support	£42.23 £35.19
21	MO337491256/0 Available to backorder	Inner Mud Guard-Rh (Park)	£104.18 £86.82
22	MO112523040/0 In stock	Washer Not for Diesel Version	£1.49 £1.24
23	MO9893-0616-16 Available to backorder	Screw Not for Diesel Version	£2.12 £1.77
24	MO337491257/0 Available to backorder	Inner Mud Guard-Lh (Park) Not for Diesel Version	£104.18 £86.82
30	MO1137-0020-02 Available to backorder	Spacer	£5.21 £4.34
32	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
33	MO9699-0099-02 Available to backorder	Washer	£1.82 £1.52
34	MO112154330/0 In stock	Nut	£1.55 £1.29
