PARK 500 WX - 2025 - 2F6130535/ST2 - Stiga Front Mower Regulator Rectifier Diagram

Description

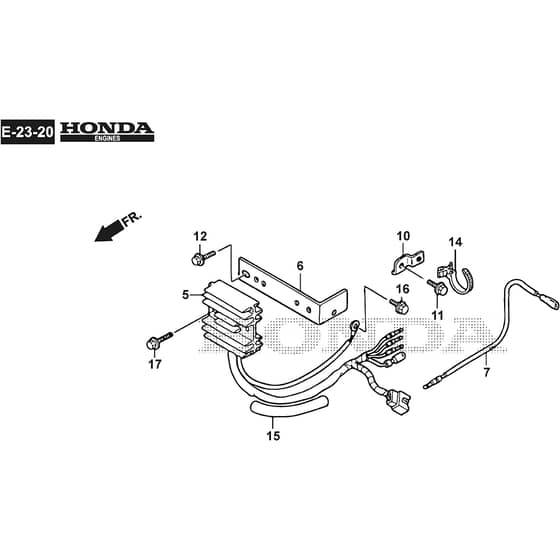

Stiga PARK 500 WX Parts Diagram

Product Name - PARK 500 WX Special

Model Year - 2025

Model Type - P 901 C4W

Art.N - 2F6130535/ST2

Engine Model - Honda GCV530

	Part No.	Details
1	HP31750-Z0A-861 Available to backorder	Rectifier Assy. Regulator	£203.16 £169.30
6	HP31758-Z0A-800 Available to backorder	Bracket. Regulator	£13.69 £11.41
7	HP32105-Z0A-000 Available to backorder	Harness Assy. Sub Wire	£12.02 £10.02
10	HP35806-752-630 Available to backorder	Base. Clip	£7.51 £6.26
11	HP90013-883-000 Available to backorder	Bolt. Flange. 6X12 (Ct200)	£4.34 £3.62
12	HP90014-952-000 Available to backorder	Bolt. Flange. 6X14 (Ct200)	£3.77 £3.14
14	HP90672-SB2-003 Available to backorder	Strap. Cable. 105mm (Black)	£7.92 £6.60
15	HP91406-ZB3-740 Available to backorder	Tube. Cord	£6.26 £5.22
16	HP95701-0600800 In stock	Bolt. Flange. 6X8	£1.37 £1.14
