PARK 500 WX - 2025 - 2F6130535/ST2 - Stiga Front Mower K574T Diagram

Description

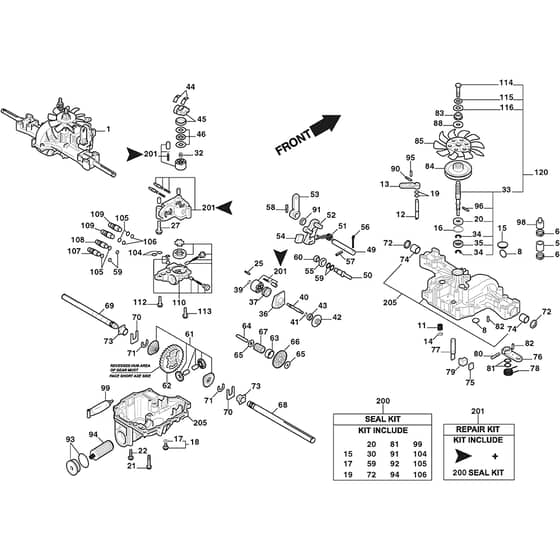

Stiga PARK 500 WX Parts Diagram

Product Name - PARK 500 WX Special

Model Year - 2025

Model Type - P 901 C4W

Art.N - 2F6130535/ST2

Engine Model - Honda GCV530

	Part No.	Details
5	MO1139-1301-01 Available to backorder	Tube	£10.88 £9.07
6	MO1139-1336-01 Available to backorder	Cobra Clip	£6.77 £5.64
7	MO1139-1306-01 Available to backorder	Adaptor	£6.26 £5.22
8	MO1139-1150-01 Available to backorder	Magnet	£8.24 £6.87
13	MO1139-1189-01 Available to backorder	By-Pass Lever	£9.18 £7.65
15	MO1139-1735-01 In stock	Bore Plug	£9.62 £8.02
16	MO1139-1104-01 Available to backorder	Snap Ring	£4.51 £3.76
17	MO1139-1103-01 Available to backorder	Washer	£6.30 £5.25
18	MO1139-1500-01 Available to backorder	Drain Bolt Kit Pos 17 incl.	£6.61 £5.51
20	MO1139-1119-01 Available to backorder	Seal 15357	£6.08 £5.07
25	MO1139-1158-01 Available to backorder	Pin	£4.51 £3.76
28	MO1139-1468-01 Available to backorder	Ids Valve	£13.87 £11.56
31	MO1139-1601-01 Available to backorder	Cylinder Block Kit (Pump)	£1,250.00 £1,041.67
32	MO1139-1245-01 Available to backorder	Pump Spring	£4.82 £4.02
33	MO1139-1725-01 Available to backorder	Pump Shaft Assy Pos 96 incl.	£143.89 £119.91
34	MO1139-1750-01 Available to backorder	E-Ring	£4.51 £3.76
35	MO1139-1110-01 Available to backorder	Ball Bearing	£17.98 £14.98
36	MO1139-1458-01 Available to backorder	Housing	£23.26 £19.38
37	MO1139-1438-01 Available to backorder	Bearing	£115.98 £96.65
38	MO1139-1717-01 Available to backorder	Cylinder Block (Motor	£1,250.00 £1,041.67
39	MO1139-1160-01 Available to backorder	Washer	£4.51 £3.76
40	MO1139-1353-01 Available to backorder	Motor Shaft	£39.62 £33.02
41	MO1139-1021-01 Available to backorder	Snap Ring	£4.51 £3.76
42	MO1139-1272-01 Available to backorder	Motor Gear	£23.20 £19.33
43	MO1139-1453-01 Available to backorder	Bearing	£18.77 £15.64
45	MO1139-1067-01 Available to backorder	Swash Plate Assy	£42.22 £35.18
46	MO1139-1508-01 Available to backorder	Thrust Bearing Kit	£69.31 £57.76
52	MO1139-1409-01 Available to backorder	Lever	£56.11 £46.76
53	MO1139-1325-01 Available to backorder	Control Lever	£27.17 £22.64
55	MO1139-1102-01 Available to backorder	Washer	£5.76 £4.80
56	MO1139-1355-01 Available to backorder	Cotter Pin	£4.51 £3.76
57	MO1139-1329-01 Available to backorder	Pin	£4.82 £4.02
58	MO1139-1285-01 Available to backorder	Pin	£4.51 £3.76
60	MO1139-1127-01 Available to backorder	Nut	£4.51 £3.76
205	MO1139-1751-01 Available to backorder	Lower Housing	£741.62 £618.02
