PARK 500 WX - 2025 - 2F6130535/ST2 - Stiga Front Mower Controls Diagram

Description

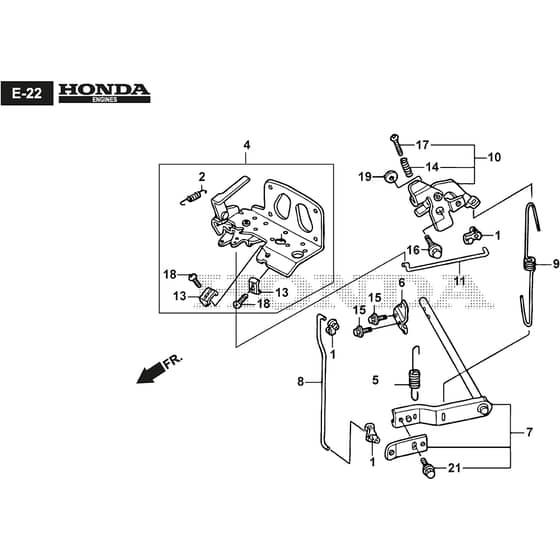

Stiga PARK 500 WX Parts Diagram

Product Name - PARK 500 WX Special

Model Year - 2025

Model Type - P 901 C4W

Art.N - 2F6130535/ST2

Engine Model - Honda GCV530

	Part No.	Details
1	HP16263-ZJ7-871 In stock	Rod. Joint	£3.35 £2.79
2	HP16268-Z0A-300 Available to backorder	Spring. Choke Return	£2.72 £2.27
4	HP16500-Z0A-800 Available to backorder	Control Assy. (2-Lever)	£70.92 £59.10
5	HP16534-Z0A-000 In stock	Spring. Starter	£2.29 £1.91
6	HP16542-Z0A-000 Available to backorder	Fork. Governor	£8.68 £7.23
7	HP16550-Z0A-000 Available to backorder	Arm Comp. Governor	£39.12 £32.60
8	HP16555-Z0A-000 Available to backorder	Rod. Governor	£4.27 £3.56
9	HP16561-Z0A-000 In stock	Spring. Governor	£5.40 £4.50
10	HP16565-Z0A-000 Available to backorder	Link Comp. Governor	£23.58 £19.65
11	HP16566-Z0A-000 Available to backorder	Rod. Governor Link	£6.84 £5.70
13	HP16576-891-000 Available to backorder	Holder. Cable	£3.89 £3.24
14	HP16584-883-300 Available to backorder	Spring. Control Adjusting	£4.80 £4.00
15	HP90002-892-000 Available to backorder	Bolt. Flange. 5X10	£2.46 £2.05
16	HP90015-Z0A-000 Available to backorder	Bolt. Flange. 6mm (Ct200)	£2.38 £1.98
17	HP90016-ZG9-N30 Available to backorder	Screw. Recessed. 5X25	£4.57 £3.81
18	HP93500-050160A Available to backorder	Screw. Pan. 5X16	£1.51 £1.26
19	HP94101-06000 Available to backorder	Washer. Plain. 6mm	£1.20 £1.00
