PARK 500 WX - 2023-2024 - 2F6130645/ST2 - Stiga Front Mower Cylinder Head Diagram

Description

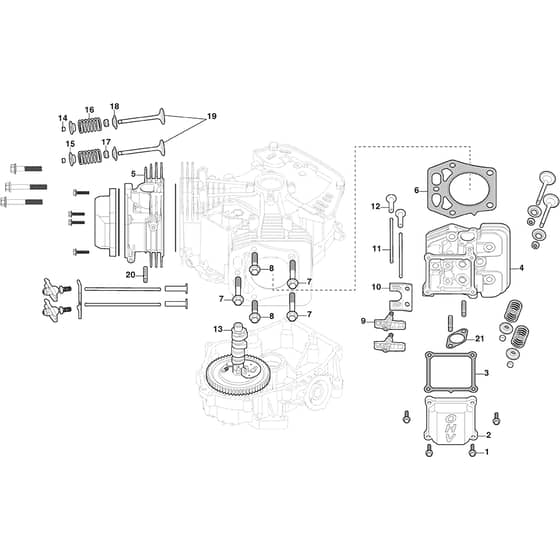

Stiga PARK 500 WX Parts Diagram

Product Name - PARK 500 WX

Model Year - 2023-2024

Model Type - P 901 C4W

Art.N - 2F6130645/ST2

Engine Model - ST 550

	Part No.	Details
1	MO118551535/0 In stock	Bolt	£2.24 £1.87
2	MO118551549/0 Available to backorder	Cover Comp. Head	£10.00 £8.33
3	MO118551550/0 Available to backorder	Gasket	£12.11 £10.09
4	MO118551546/1 Available to backorder	Cylinder Head	£147.79 £123.16
5	MO118551547/1 Available to backorder	Cylinder Head	£147.79 £123.16
6	MO118551627/0 Available to backorder	Gasket	£21.47 £17.89
9	MO118551558/0 Available to backorder	Equalizer Ass.Y	£9.01 £7.51
10	MO118551561/0 Available to backorder	Plate	£4.50 £3.75
11	MO118551559/0 Available to backorder	Push Rods Assy	£5.92 £4.93
12	MO118551560/0 Available to backorder	Valve Lifter	£12.80 £10.67
13	MO118551556/1 Available to backorder	Camshaft	£133.74 £111.45
14	MO118551247/0 Available to backorder	Valve Keeper	£1.55 £1.29
15	MO118551246/0 Available to backorder	Retainer	£4.64 £3.87
16	MO118550529/0 Available to backorder	Spring Valve	£6.05 £5.04
17	MO118551248/0 Available to backorder	Gasket	£8.29 £6.91
18	MO118551245/0 Available to backorder	Plate	£2.93 £2.44
19	MO118551616/0 Available to backorder	Valve Assy. Intake + Exhaust	£32.38 £26.98
21	MO118551272/0 Available to backorder	Muffler Gasket	£2.53 £2.11
