PARK 500 - 2022-2024 - 2F6120545/ST2P - Stiga Front Mower PTO Diagram

Description

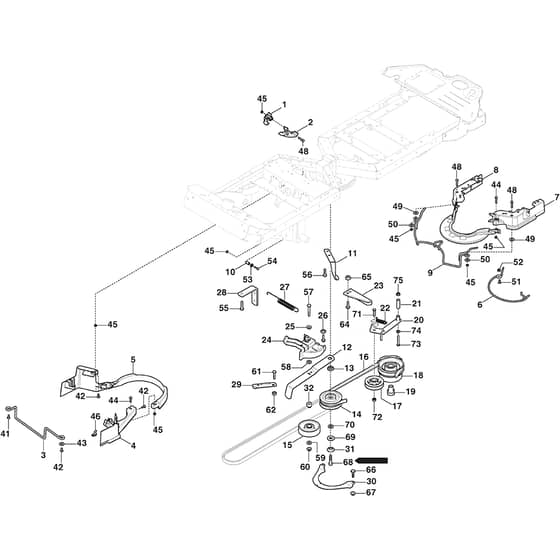

Stiga PARK 500 Parts Diagram

Product Name - PARK 500

Model Year - 2022-2024

Model Type - P 901 C

Art.N - 2F6120545/ST2P

Engine Model - ST 450

Be the first to review this product

0 product questions

	Part No.	Details
1	MO337600010/0 Available to backorder	Protection	£4.08 £3.40
2	MO337600011/0 Available to backorder	Protection	£3.94 £3.28
3	MO137294100/0 Available to backorder	Belt Guide	£26.96 £22.47
4	MO337060003/0 Available to backorder	Belt Cover	£6.76 £5.63
5	MO337060002/0 Available to backorder	Belt Cover	£11.12 £9.27
6	MO137294105/0 Available to backorder	Belt Guide	£32.38 £26.98
7	MO337060001/1 Available to backorder	Belt Cover	£6.90 £5.75
8	MO337060000/2 Available to backorder	Belt Cover	£7.46 £6.22
9	MO337785113/1 Available to backorder	Support	£58.62 £48.85
12	MO1137-1124-01 Available to backorder	Tension Wheel Arm	£81.66 £68.05
13	MO1134-5548-01 Available to backorder	Spacer	£13.93 £11.61
14	MO387605002/0 Available to backorder	Double Pulley Assy	£83.06 £69.22
15	MO387605007/0 Available to backorder	Tension Roller Assy	£59.12 £49.27
16	MO1134-9047-01 In stock	V-Belt Service code for Belt. 9585-0088-00	£43.18 £35.98
17	MO387605009/0 In stock	Tension Wheel	£50.68 £42.23
18	MO1134-7526-01 Available to backorder	Magnet Clutch	£270.96 £225.80
19	MO1134-5016-01 Available to backorder	Bushing	£29.56 £24.63
20	MO1134-3658-02 Available to backorder	Tension Arm	£89.39 £74.49
21	MO1134-1565-10 Available to backorder	Spacer	£8.23 £6.86
22	MO1134-3379-01 Available to backorder	Spring	£17.87 £14.89
23	MO387773575/0 Available to backorder	Bracket	£19.08 £15.90
24	MO337600000/1 Available to backorder	Protection	£7.61 £6.34
25	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
27	MO1134-5111-01 Available to backorder	Spring	£18.10 £15.08
28	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
29	MO337546547/0 Available to backorder	Plate	£6.76 £5.63
30	MO1134-3654-01 Available to backorder	Guard	£35.05 £29.21
31	MO1134-0222-00 Available to backorder	Washer	£16.88 £14.07
32	MO1134-1888-04 Available to backorder	Spacer	£9.00 £7.50
44	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
45	MO112154510/0 In stock	Nut	£1.55 £1.29
46	MO322545159/0 Available to backorder	Plate	£1.55 £1.29
48	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
49	MO112524010/0 Available to backorder	Washer	£1.82 £1.52
50	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
51	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
52	MO112154330/0 In stock	Nut	£1.55 £1.29
53	MO112523050/0 In stock	Washer	£1.55 £1.29
54	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
55	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
56	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
57	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
59	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
61	MO112793102/0 In stock	Screw	£1.55 £1.29
62	MO112293201/0 In stock	Nut	£1.69 £1.41
64	MO9959-0820-16 In stock	Screw	£1.55 £1.29
65	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
66	MO9959-0612-16 Available to backorder	Screw	£1.40 £1.17
67	MO112292102/0 In stock	Nut	£1.69 £1.41
68	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
69	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
70	MO112521360/0 In stock	Washer	£1.55 £1.29
71	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
72	MO9739-1031-22 In stock	Nut	£1.97 £1.64
73	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
