PARK 420 P - 2016-2019 - 2F6220511/S16 - Stiga Front Mower PTO Diagram

Description

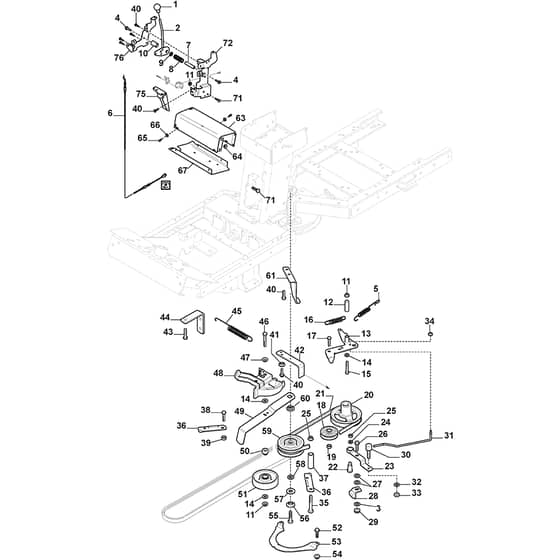

Stiga PARK 420 P Parts Diagram

Product Name - PARK 420 P

Model Year - 2016-2019

Model Type - P 901 CH

Art.N - 2F6220511/S16

Engine Model - B&S Intek 4155 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-2551-01 Available to backorder	Knob	£11.18 £9.32
3	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
4	MO9959-0820-16 In stock	Screw	£1.55 £1.29
5	MO4231-0013-00 In stock	Spring	£8.52 £7.10
6	MO1134-3573-03 Available to backorder	Pto Cable	£36.59 £30.49
7	MO1134-4065-01 Available to backorder	Control Shaft	£21.67 £18.06
8	MO1134-4079-01 Available to backorder	Spring	£8.45 £7.04
9	MO9695-0011-00 Available to backorder	Washer	£2.12 £1.77
10	MO1134-4080-03 Available to backorder	Control Sleeve	£8.45 £7.04
12	MO1134-1565-10 Available to backorder	Spacer	£8.23 £6.86
13	MO1134-2018-02 Available to backorder	Tension Arm	£39.42 £32.85
14	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
15	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
16	MO1135-3307-01 Available to backorder	Spring	£23.30 £19.42
17	MO112794300/0 Available to backorder	Screw	£1.82 £1.52
18	MO387605008/0 In stock	Tension Roller (Grey)	£35.20 £29.33
19	MO112295200/0 In stock	Nut	£1.40 £1.17
20	MO1137-0208-01 Available to backorder	Engine Pulley	£43.64 £36.37
21	MO1134-9173-01 In stock	Belt Replaced by Service Code. 1134-9173-01	£28.28 £23.57
22	MO1134-4163-02 Available to backorder	Shoulder Bolt	£10.27 £8.56
23	MO387318251/0 Available to backorder	Brake Arm	£30.97 £25.81
25	MO9739-1031-22 In stock	Nut	£1.97 £1.64
26	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
28	MO1134-4164-03 Available to backorder	Brake Pad	£30.97 £25.81
29	MO112155000/0 In stock	Nut	£1.55 £1.29
30	MO1134-4170-01 Available to backorder	Nippel	£16.75 £13.96
31	MO137033100/0 Available to backorder	Brake Rod	£22.25 £18.54
32	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
33	MO112154510/0 In stock	Nut	£1.55 £1.29
34	MO112604897/0 Available to backorder	Starlock	£1.55 £1.29
35	MO112794950/0 Available to backorder	Screw	£3.94 £3.28
36	MO337546547/0 Available to backorder	Plate	£6.76 £5.63
37	MO1134-0041-03 Available to backorder	Bushing	£11.27 £9.39
38	MO112793102/0 In stock	Screw	£1.55 £1.29
39	MO112293201/0 In stock	Nut	£1.69 £1.41
40	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
41	MO325160039/0 Available to backorder	Spacer	£1.55 £1.29
42	MO1134-3958-01 Available to backorder	Belt Guide	£17.04 £14.20
43	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
44	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
45	MO1134-5111-01 Available to backorder	Spring	£18.10 £15.08
46	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
47	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
48	MO337600000/1 Available to backorder	Protection	£7.61 £6.34
49	MO1137-1124-01 Available to backorder	Tension Wheel Arm	£81.66 £68.05
50	MO1134-1888-04 Available to backorder	Spacer	£9.00 £7.50
51	MO387605007/0 Available to backorder	Tension Roller Assy	£59.12 £49.27
52	MO9959-0612-16 Available to backorder	Screw	£1.40 £1.17
53	MO1134-3654-01 Available to backorder	Guard	£35.05 £29.21
54	MO112292102/0 In stock	Nut	£1.69 £1.41
55	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
56	MO1134-0222-00 Available to backorder	Washer	£16.88 £14.07
57	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
58	MO112521360/0 In stock	Washer	£1.55 £1.29
59	MO387605002/0 Available to backorder	Centre Belt Pulley	£83.06 £69.22
60	MO1134-5548-01 Available to backorder	Spacer	£13.93 £11.61
63	MO1134-3990-01 Available to backorder	Attachment-Side Panel	£175.97 £146.64
64	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
65	MO9840-8013-16 Available to backorder	Screw	£1.55 £1.29
66	MO9699-0099-02 Available to backorder	Washer	£1.82 £1.52
67	MO1134-4130-01 Available to backorder	Cover Lower	£39.42 £32.85
71	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
72	MO1134-4156-01 Available to backorder	Panel Bracket-Inner	£59.12 £49.27
75	MO1134-6328-01 Available to backorder	Panel Bracket-Front	£20.56 £17.13
76	MO1134-6327-01 Available to backorder	Front Plate	£21.47 £17.89
