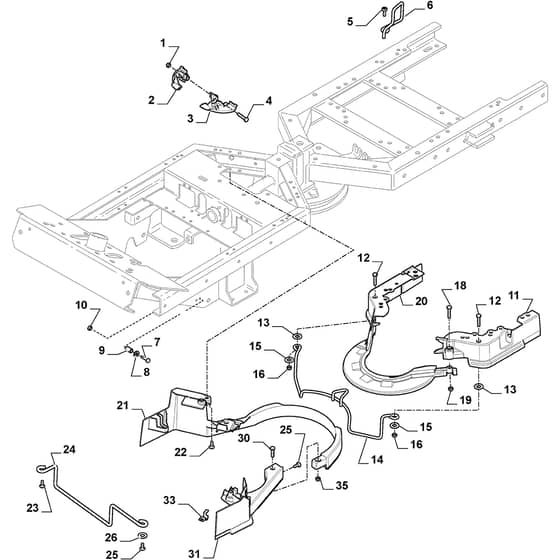

PARK 420 P - 2015 - 13-6320-11 - Stiga Front Mower Belt Protection Diagram

Name: PARK 420 P - 2015 - 13-6320-11 - Stiga Front Mower Belt Protection Diagram
SKU: park_420_p_13_6320_11_belt_protection-group
Price: 1.29 GBP
Availability: InStock

Part No. park_420_p_13_6320_11_belt_protection-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 420 P - 2015 - 13-6320-11 - Stiga Front Mower Belt Protection Diagram

Description

Stiga PARK 420 P Parts Diagram

Product Name - PARK 420 P

Model Year - 2015

Model Type - P 901 CH

Art.N - 13-6320-11

Engine Model - B&S PowerBuilt 4155 AVS

	Part No.	Details
2	MO337600010/0 Available to backorder	Protection	£4.08 £3.40
3	MO337600011/0 Available to backorder	Protection	£3.92 £3.27
5	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
7	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
8	MO112523050/0 In stock	Washer	£1.57 £1.31
9	MO1134-1565-14 Available to backorder	Spacer	£1.84 £1.53
10	MO112154510/0 In stock	Nut	£1.55 £1.29
11	MO337060001/1 Available to backorder	Belt Cover	£6.90 £5.75
12	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
13	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
14	MO337785100/0 Available to backorder	Support	£56.32 £46.93
15	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
20	MO337060000/2 Available to backorder	Belt Cover	£7.46 £6.22
21	MO337060002/0 Available to backorder	Belt Cover	£11.12 £9.27
23	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
24	MO137294100/0 Available to backorder	Belt Guide	£26.96 £22.47
30	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
31	MO337060003/0 Available to backorder	Belt Cover	£6.76 £5.63
33	MO322545159/0 Available to backorder	Plate	£1.63 £1.36
