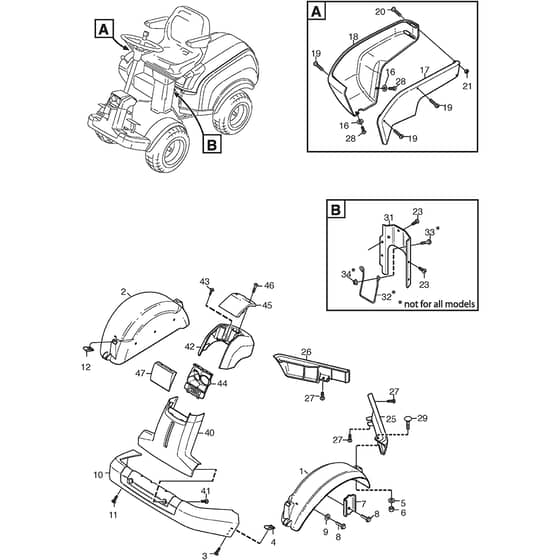

Stiga PARK 420 LM Parts Diagram

Product Name - PARK 420 LM

Model Year - 2014-2015

Model Type - P 901 CH

Art.N - 13-6384-12

Engine Model - B&S PowerBuilt 3130 AVS

	Part No.	Details
1	MO1137-0048-01 Available to backorder	Mud Guard. Front-Lh	£115.98 £96.65
2	MO1137-0048-02 Available to backorder	Mud Guard. Front-Rh	£115.42 £96.18
5	MO112523040/0 In stock	Washer	£1.55 £1.29
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO1137-0088-01 Available to backorder	Support Plate	£2.24 £1.87
8	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
9	MO112523060/0 In stock	Washer	£1.55 £1.29
10	MO1137-0049-01 Available to backorder	Front Bumper	£43.63 £36.36
12	MO1134-4176-01 Available to backorder	Clips	£4.78 £3.98
16	MO9699-0099-02 Available to backorder	Washer	£1.84 £1.53
17	MO1134-4360-01 Available to backorder	Cover-Inner	£64.75 £53.96
18	MO1134-3979-01 Available to backorder	Cover-Outer	£102.06 £85.05
21	MO112154330/0 In stock	Nut	£1.55 £1.29
25	MO1134-3970-05 Available to backorder	Moulding-Left (Grey)	£57.71 £48.09
27	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
28	MO9840-8013-16 Available to backorder	Screw	£1.55 £1.29
29	MO112815200/0 In stock	Screw	£1.55 £1.29
31	MO1134-6461-01 Available to backorder	Rear Plate	£33.79 £28.16
34	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
40	MO1137-0050-01 Available to backorder	Front Panel-Lower	£109.22 £91.02
42	MO1137-0051-01 Available to backorder	Front Panel-Upper	£22.58 £18.82
43	MO9946-0525-16 Available to backorder	Screw	£2.11 £1.76
44	MO1137-0052-01 Available to backorder	Lamp Holder	£5.92 £4.93
45	MO337110330/0 Available to backorder	Top Panel	£5.87 £4.89
46	MO112728697/0 In stock	Screw	£1.55 £1.29
47	MO1137-0054-01 Available to backorder	Lamp Glass	£8.02 £6.68
