PARK 420 - 2016-2017 - 2F6020421/S16 - Stiga Front Mower Transmission Diagram

Description

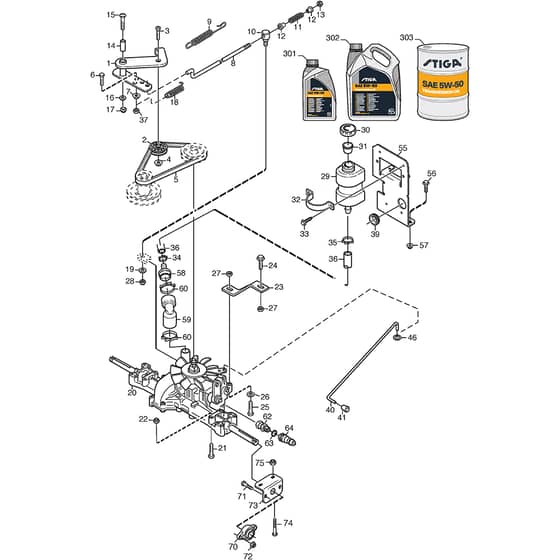

Stiga PARK 420 Parts Diagram

Product Name - PARK 420

Model Year - 2016-2017

Model Type - P 901 CH

Art.N - 2F6020421/S16

Engine Model - B&S PowerBuilt 3130 AVS

	Part No.	Details
1	MO387205001/0 Available to backorder	Tension Arm	£45.04 £37.53
2	MO387605028/0 In stock	Tension Roller	£44.70 £37.25

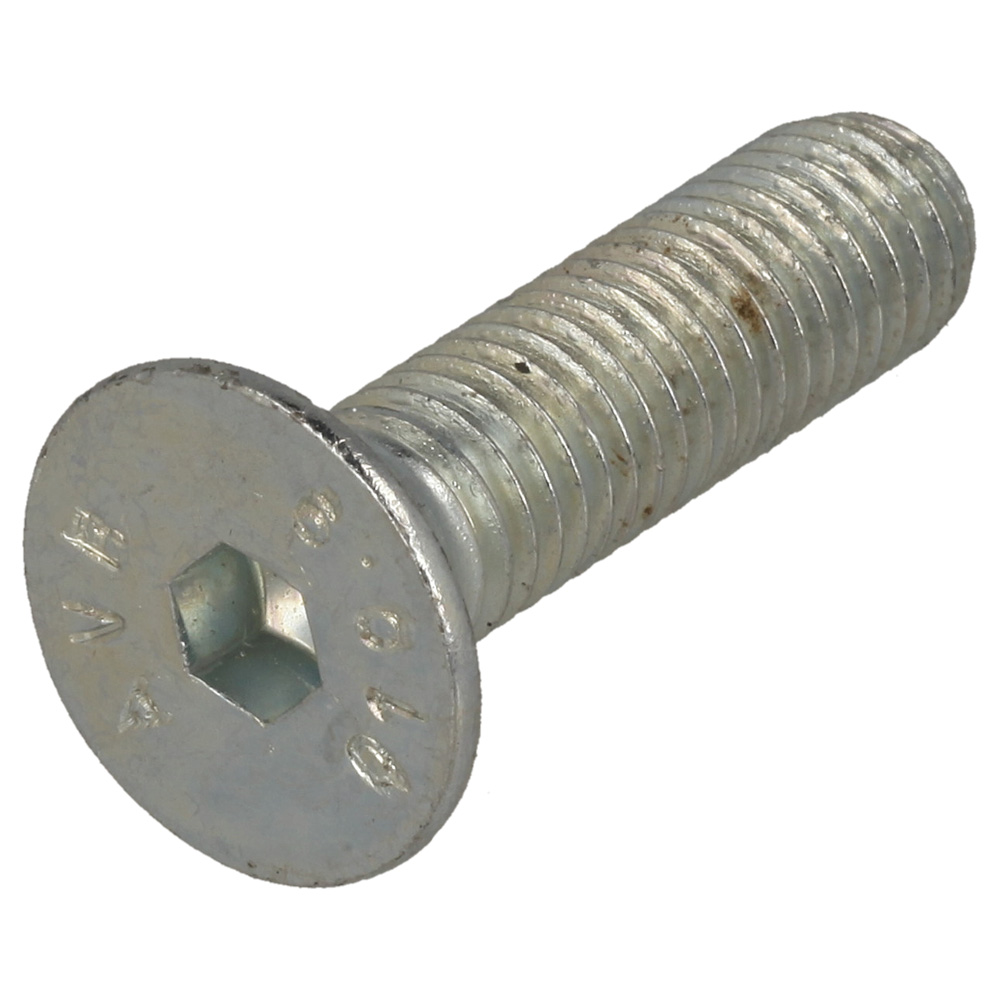

3	MO112794117/0 Available to backorder	Screw	£1.63 £1.36
4	MO112295200/0 In stock	Nut	£1.39 £1.16
5	MO1134-9058-01 In stock	Drive Belt Replaced by Service Code. 1134-9058-01	£19.50 £16.25
6	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
7	MO112292102/0 In stock	Nut	£1.70 £1.42
8	MO1134-3377-02 Available to backorder	Control Rod	£16.46 £13.72
9	MO4231-0013-00 In stock	Spring	£8.53 £7.11
10	MO1134-4171-01 Available to backorder	Pivot Pin	£7.96 £6.63
11	MO1134-4183-01 Available to backorder	Spring	£8.22 £6.85
12	MO1134-3456-01 Available to backorder	Bushing	£5.76 £4.80
14	MO1134-1565-08 Available to backorder	Spacer	£8.66 £7.22
15	MO112794988/0 Available to backorder	Screw	£6.19 £5.16
16	MO112523060/0 In stock	Washer	£1.55 £1.29
18	MO1134-6414-01 In stock	Spring	£5.34 £4.45
19	MO112523040/0 In stock	Washer	£1.55 £1.29
20	MO1137-0126-01 Available to backorder	Transaxle K57V Kanzaki K57V	£1,116.37 £930.31
23	MO1134-3913-01 Available to backorder	Strut	£17.17 £14.31
24	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
25	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
26	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
29	MO1134-2765-02 Available to backorder	Oil Tank	£43.63 £36.36
30	MO1134-2777-02 Available to backorder	Filler Cap	£16.40 £13.67
31	MO1134-3734-01 Available to backorder	Vent Plug	£13.09 £10.91
32	MO1134-2778-01 Available to backorder	Band	£13.81 £11.51
33	MO9852-8013-16 Available to backorder	Screw	£2.11 £1.76

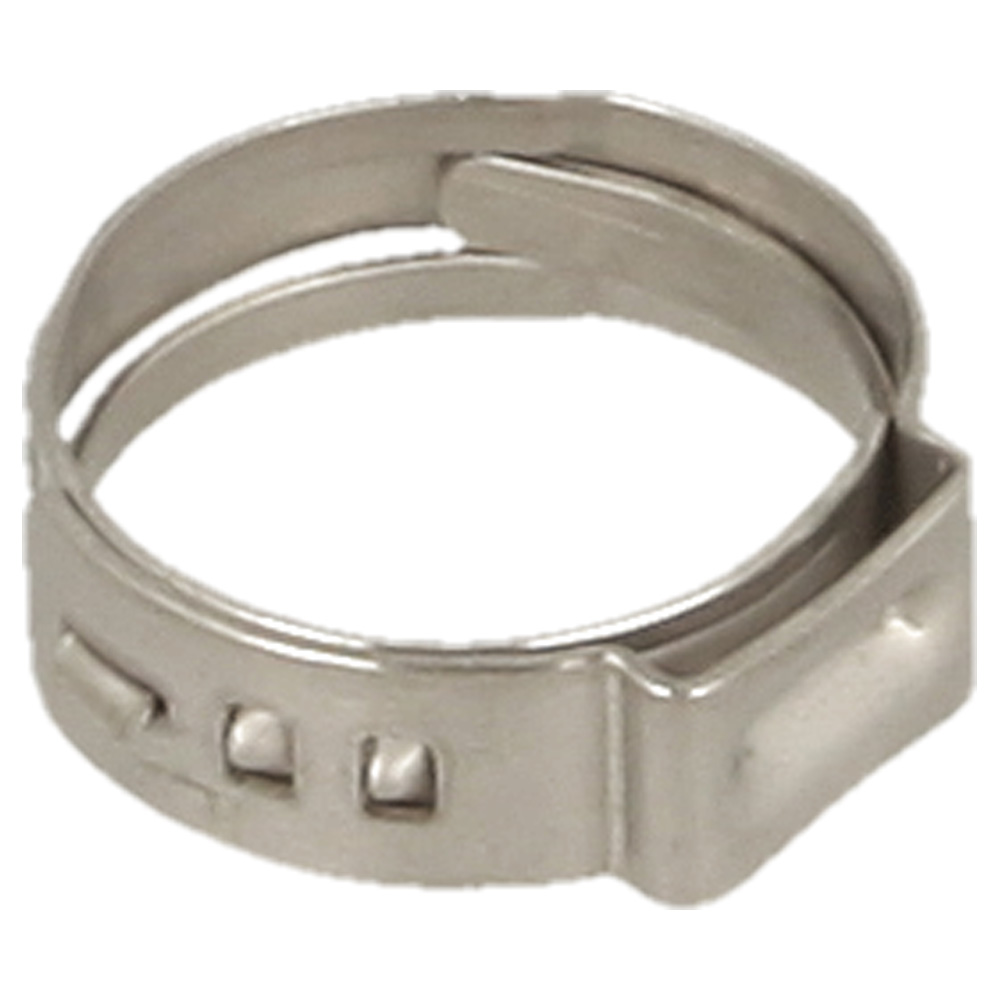

35	MO9578-0023-04 Available to backorder	Hose Clamp 15 x 8	£6.05 £5.04
35	MO9578-0036-01 Available to backorder	Hose Clamp	£3.66 £3.05
36	MO1134-2779-03 Available to backorder	Tube L . 290 mm	£9.65 £8.04
37	MO112154510/0 In stock	Nut	£1.55 £1.29
39	MO1134-3203-01 Available to backorder	Grommet	£5.22 £4.35
40	MO1134-4015-01 Available to backorder	Pull Rod	£11.26 £9.38
41	MO1134-4014-01 Available to backorder	Knob	£4.78 £3.98
46	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
56	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
58	MO1134-6051-01 Available to backorder	Hose Nipple	£6.26 £5.22
59	MO1134-6050-01 Available to backorder	Elbow	£31.12 £25.93
62	MO1134-7245-01 Available to backorder	Hydraulic Coupling-Straight	£13.50 £11.25
63	MO1134-4948-01 Available to backorder	Washer	£2.69 £2.24
64	MO112375007/0 Available to backorder	Quick Coupling-Male	£18.64 £15.53
70	MO1137-1122-01 Available to backorder	Flange Bearing Unit	£64.75 £53.96
71	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
72	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
73	MO1137-1123-01 Available to backorder	Bracket	£21.28 £17.73
74	MO9960-0860-12 Available to backorder	Screw	£1.97 £1.64
75	MO112155000/0 In stock	Nut	£1.55 £1.29
301	MO1111-9281-01 Available to backorder	Transmission Oil Sae 5W-50 1.4L	£29.47 £24.56
302	MO1111-9282-01 In stock	Transmission Oil Sae 5W-50 5L	£100.91 £84.09
303	MO1111-9300-01 Available to backorder	Transmission Oil Sae 5W-50 60L	£945.30 £787.75
