PARK 420 - 2016-2017 - 2F6020421/S16 - Stiga Front Mower Pedal Lift Diagram

Name: PARK 420 - 2016-2017 - 2F6020421/S16 - Stiga Front Mower Pedal Lift Diagram
SKU: park_420_2f6020421_s16_pedal_lift-group
Price: 1.29 GBP
Availability: InStock

Part No. park_420_2f6020421_s16_pedal_lift-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 420 - 2016-2017 - 2F6020421/S16 - Stiga Front Mower Pedal Lift Diagram

Description

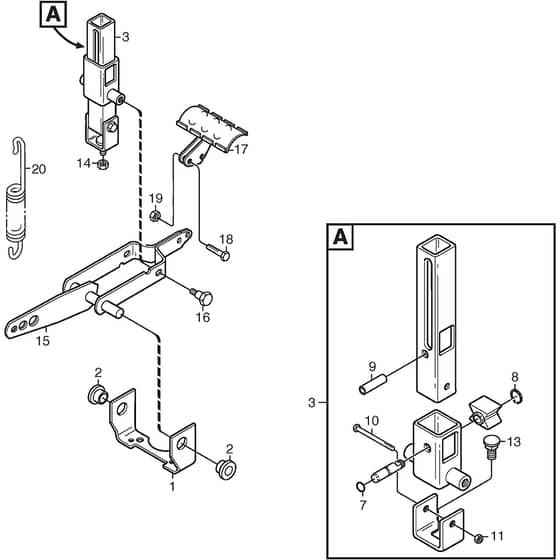

Stiga PARK 420 Parts Diagram

Product Name - PARK 420

Model Year - 2016-2017

Model Type - P 901 CH

Art.N - 2F6020421/S16

Engine Model - B&S PowerBuilt 3130 AVS

	Part No.	Details
1	MO1134-4117-01 Available to backorder	Bracket	£30.98 £25.82
2	MO1134-2684-01 Available to backorder	Bearing	£6.77 £5.64
3	MO1134-4945-01 Available to backorder	Lift Catch Assy	£118.96 £99.13
8	MO9650-0039-04 Available to backorder	Lock Ring	£2.11 £1.76
9	MO9595-0276-01 Available to backorder	Locating Pin	£3.10 £2.58
10	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
11	MO112154510/0 In stock	Nut	£1.55 £1.29
13	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
14	MO112155000/0 In stock	Nut	£1.55 £1.29
15	MO387256055/0 Available to backorder	Lift Fork	£93.62 £78.02
16	MO1134-0240-00 In stock	Screw	£8.80 £7.33
20	MO4231-0013-00 In stock	Spring	£8.53 £7.11
