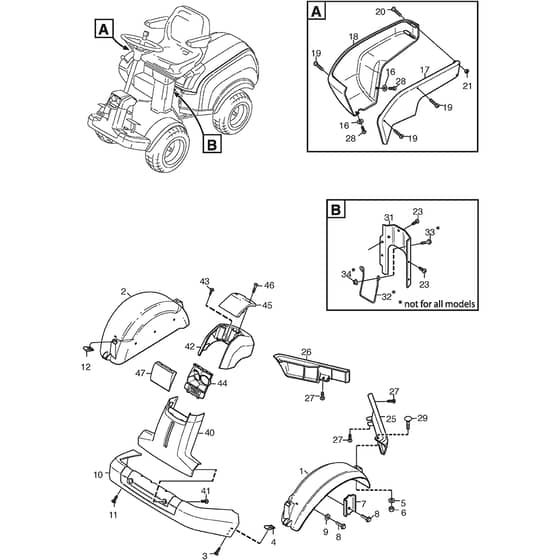

PARK 420 - 2016-2017 - 2F6020421/S16 - Stiga Front Mower Body Works 01 Diagram

Name: PARK 420 - 2016-2017 - 2F6020421/S16 - Stiga Front Mower Body Works 01 Diagram
SKU: park_420_2f6020421_s16_body_works_01-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 420 - 2016-2017 - 2F6020421/S16 - Stiga Front Mower Body Works 01 Diagram

Description

Stiga PARK 420 Parts Diagram

Product Name - PARK 420

Model Year - 2016-2017

Model Type - P 901 CH

Art.N - 2F6020421/S16

Engine Model - B&S PowerBuilt 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO337491251/0 Available to backorder	Mud Guard. Front-Lh	£109.79 £91.49
2	MO337491250/0 Available to backorder	Mud Guard. Front-Rh	£115.43 £96.19
5	MO112523040/0 In stock	Washer	£1.49 £1.24
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO1137-0088-01 Available to backorder	Support Plate	£2.26 £1.88
8	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
9	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
10	MO337502507/0 Available to backorder	Front Bumper	£43.64 £36.37
12	MO1134-4176-01 Available to backorder	Clips	£4.78 £3.98
16	MO9699-0099-02 Available to backorder	Washer	£1.82 £1.52
17	MO1134-4360-01 Available to backorder	Cover-Inner	£64.75 £53.96
18	MO1134-3979-01 Available to backorder	Cover-Outer	£102.06 £85.05
20	MO9950-0570-12 Available to backorder	Screw	£2.96 £2.47
21	MO112154330/0 In stock	Nut	£1.55 £1.29
25	MO337110331/0 Available to backorder	Moulding-Left (Grey)	£56.32 £46.93
26	MO337110332/0 Available to backorder	Moulding Right-Grey	£53.50 £44.58
27	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
28	MO9840-8013-16 Available to backorder	Screw	£1.55 £1.29
29	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
31	MO1134-6461-01 Available to backorder	Rear Plate	£33.79 £28.16
40	MO1137-0050-01 Available to backorder	Front Panel-Lower	£109.21 £91.01
42	MO1137-0051-01 Available to backorder	Front Panel-Upper	£22.57 £18.81
43	MO9946-0525-16 Available to backorder	Screw	£2.12 £1.77
44	MO337110329/0 Available to backorder	Lamp Holder	£6.19 £5.16
45	MO337110330/0 Available to backorder	Top Panel	£5.87 £4.89
46	MO112728697/0 In stock	Screw	£1.55 £1.29
47	MO1137-0054-01 Available to backorder	Lamp Glass	£8.02 £6.68
