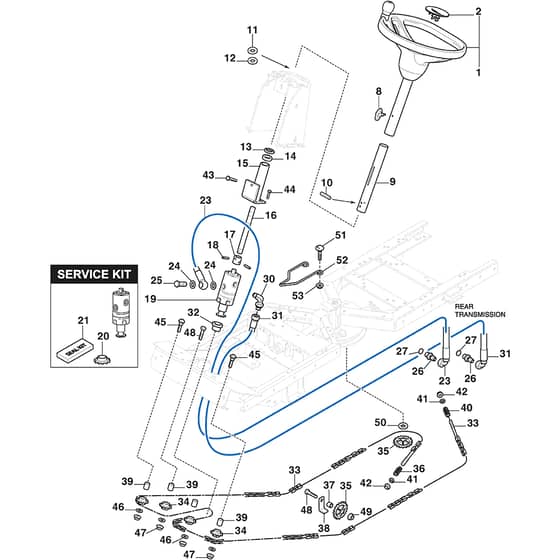

PARK 345 PWX - 2021 - 2F6130535/ST1P - Stiga Front Mower Steering Diagram

Name: PARK 345 PWX - 2021 - 2F6130535/ST1P - Stiga Front Mower Steering Diagram
SKU: park_345_pwx_2f6130535_st1p_steering-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 345 PWX - 2021 - 2F6130535/ST1P - Stiga Front Mower Steering Diagram

Description

Stiga PARK 345 PWX Parts Diagram

Product Name - PARK 345 PWX

Model Year - 2021

Model Type - P 901 C 4W

Art.N - 2F6130535/ST1P

Engine Model - Honda GCV 530

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1137-1000-01 Available to backorder	Steering Plate Cover	£14.35 £11.96
8	MO337394201/0 Available to backorder	Wing Nut	£13.24 £11.03
9	MO387520119/0 Available to backorder	Steering Column.Lower	£76.02 £63.35
10	MO9595-0262-00 Available to backorder	Locating Pin	£1.69 £1.41
11	MO9699-0103-02 Available to backorder	Washer	£2.12 £1.77
12	MO9699-0114-02 Available to backorder	Washer	£1.97 £1.64
13	MO9695-0011-00 Available to backorder	Washer	£2.12 £1.77
14	MO9549-0017-00 Available to backorder	Ball Bearing	£11.82 £9.85
15	MO387650005/1 Available to backorder	Steering Column Assy Replaced code 387650005.0	£66.16 £55.13
16	MO137033111/0 Available to backorder	Steering Rod	£46.46 £38.72
17	MO1134-4118-01 Available to backorder	Coupling	£22.10 £18.42
18	MO9595-0256-01 Available to backorder	Locating Pin	£2.12 £1.77
19	MO187305502/0 Available to backorder	Steering Booster	£1,121.47 £934.56
20	MO1139-2106-01 Available to backorder	Pinion (Steering Booster)	£147.80 £123.17
21	MO1139-2124-01 Available to backorder	Seal Kit-Steering Booster	£161.89 £134.91
23	MO1137-0214-03 Available to backorder	Hydraulic Hose	£100.66 £83.88
24	MO1134-4948-02 Available to backorder	Washer	£2.12 £1.77
25	MO1134-6323-01 Available to backorder	Banjo Bolt 3.8	£9.14 £7.62
26	MO1134-4282-01 Available to backorder	Hydraulic Nipple	£45.04 £37.53
27	MO9404-0028-01 Available to backorder	O-Ring	£5.22 £4.35
30	MO1134-7073-01 Available to backorder	Hydraulic Coupling 90	£39.42 £32.85
31	MO1137-0195-02 Available to backorder	Hydraulic Hose	£95.74 £79.78
32	MO137038014/0 Available to backorder	Bushing	£12.38 £10.32
33	MO387106407/1 Available to backorder	Steering Chain Assy	£302.66 £252.22
34	MO1134-2816-01 In stock	Sprocket	£10.36 £8.63
35	MO1134-3547-01 In stock	Sprocket	£12.67 £10.56
36	MO1134-3817-01 In stock	Spring	Was £12.67 £10.56 Special Price £7.94 £6.62
37	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
38	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
39	MO1134-0041-02 In stock	Bushing	£9.72 £8.10
40	MO1134-3817-02 Available to backorder	Spring	£12.25 £10.21
41	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
42	MO112155000/0 In stock	Nut	£1.55 £1.29
43	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
44	MO9939-0612-16 Available to backorder	Screw	£1.97 £1.64
45	MO9897-1040-12 Available to backorder	Screw	£3.24 £2.70
46	MO112521360/0 In stock	Washer	£1.55 £1.29
48	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
49	MO9739-1031-22 In stock	Nut	£1.97 £1.64
51	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
52	MO137295200/0 Available to backorder	Guide	£20.28 £16.90
53	MO112292102/0 In stock	Use 112292102.0	£1.69 £1.41
