PARK 345 PWX - 2021 - 2F6130535/ST1 - Stiga Front Mower PTO Diagram

Name: PARK 345 PWX - 2021 - 2F6130535/ST1 - Stiga Front Mower PTO Diagram
SKU: park_345_pwx_2f6130535_st1_pto-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

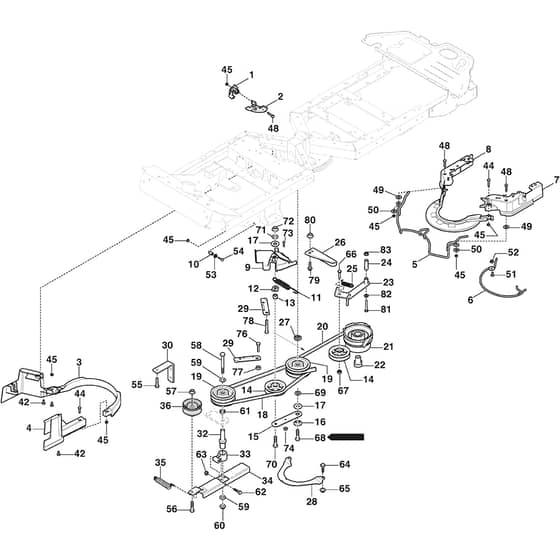

PARK 345 PWX - 2021 - 2F6130535/ST1 - Stiga Front Mower PTO Diagram

Description

Stiga PARK 345 PWX Parts Diagram

Product Name - PARK 345 PWX

Model Year - 2021

Model Type - P 901 C 4W

Art.N - 2F6130535/ST1

Engine Model - Honda GCV 530

Be the first to review this product

0 product questions

	Part No.	Details
1	MO337600010/0 Available to backorder	Protection	£4.08 £3.40
2	MO337600011/0 Available to backorder	Protection	£3.94 £3.28
3	MO337060002/0 Available to backorder	Belt Cover	£11.12 £9.27
4	MO337060036/1 Available to backorder	Belt Cover	£6.90 £5.75
5	MO337785113/1 Available to backorder	Support	£58.62 £48.85
6	MO137294105/0 Available to backorder	Belt Guide	£32.38 £26.98
7	MO337060001/1 Available to backorder	Belt Cover	£6.90 £5.75
8	MO337060000/2 Available to backorder	Belt Cover	£7.46 £6.22
9	MO337600001/2 Available to backorder	Protection	£9.28 £7.73
10	MO1134-1565-14 Available to backorder	Spacer	£1.82 £1.52
11	MO1134-5713-04 Available to backorder	Spring	£7.61 £6.34
12	MO337546545/0 Available to backorder	Spring	£5.21 £4.34
13	MO1134-1888-06 Available to backorder	Spacer	£8.94 £7.45
14	MO387605009/0 In stock	Tension Wheel	£50.68 £42.23
15	MO1134-1730-02 In stock	Tensioning Wheel Arm	Was £40.10 £33.42 Special Price £24.55 £20.46
16	MO1134-0222-00 Available to backorder	Washer	£16.88 £14.07
17	MO137038000/0 Available to backorder	Bush	£5.06 £4.22
18	MO1134-9239-01 In stock	Drive Belt Replacing Service code. 1134-9239-01	£62.56 £52.13
19	MO387605002/0 Available to backorder	Double Pulley Assy	£83.06 £69.22
20	MO1134-9047-01 In stock	V-Belt Service code for Belt. 9585-0088-00	£43.18 £35.98
21	MO1134-7526-01 Available to backorder	Magnet Clutch	£270.96 £225.80
22	MO1134-5016-01 Available to backorder	Bushing	£29.56 £24.63
23	MO1134-3658-02 Available to backorder	Tension Arm	£89.39 £74.49
24	MO1134-1565-10 Available to backorder	Spacer	£8.23 £6.86
25	MO1134-3379-01 Available to backorder	Spring	£17.87 £14.89
26	MO387773575/0 Available to backorder	Bracket	£19.08 £15.90
27	MO1134-5548-01 Available to backorder	Spacer	£13.93 £11.61
28	MO1134-3654-01 Available to backorder	Guard	£35.05 £29.21
29	MO337546547/0 Available to backorder	Plate	£6.76 £5.63
30	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
32	MO1134-5663-01 Available to backorder	Shaft	£46.46 £38.72
33	MO1134-6314-01 Available to backorder	Tension Arm Attachment	£8.34 £6.95
34	MO1134-5660-01 Available to backorder	Tension Arm Assy	£45.04 £37.53
35	MO1134-5824-01 In stock	Spring	£5.48 £4.57
36	MO387605013/0 In stock	Tension Roller Assy	£42.23 £35.19
42	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
44	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
48	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
49	MO112524010/0 Available to backorder	Washer	£1.82 £1.52
50	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
51	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
52	MO112154330/0 In stock	Nut	£1.55 £1.29
53	MO112523050/0 In stock	Washer	£1.55 £1.29
54	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
55	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
56	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
58	MO9997-1011-06 Available to backorder	Screw	£10.98 £9.15
59	MO9699-0030-02 In stock	Washer	£1.97 £1.64
60	MO9739-1031-22 In stock	Nut	£1.97 £1.64
61	MO1134-0052-00 Available to backorder	Spacer	£8.52 £7.10
62	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
63	MO112154510/0 In stock	Nut	£1.55 £1.29
64	MO9959-0612-16 Available to backorder	Screw	£1.40 £1.17
83	MO112154220/0 Available to backorder	Self-Lock Flanged Nut M8	£1.55 £1.29
