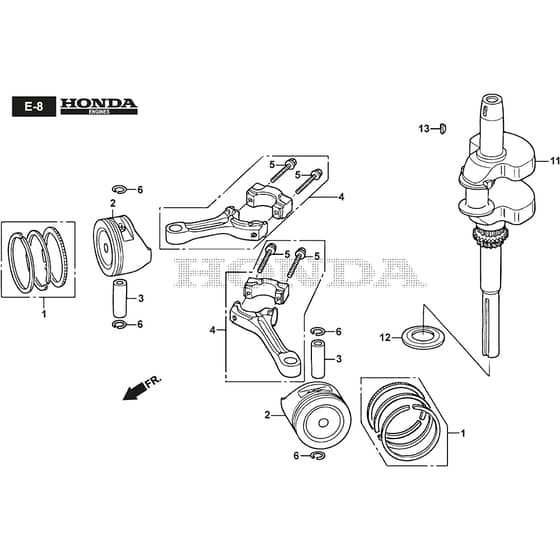

PARK 345 PWX - 2021 - 2F6130535/ST1 - Stiga Front Mower Piston Diagram

Description

Stiga PARK 345 PWX Parts Diagram

Product Name - PARK 345 PWX

Model Year - 2021

Model Type - P 901 C 4W

Art.N - 2F6130535/ST1

Engine Model - Honda GCV 530

	Part No.	Details
2	HP13101-Z0A-L30 Available to backorder	Piston (Std.)	£73.56 £61.30
3	HP13111-ZJ1-840 Available to backorder	Pin. Piston	£17.35 £14.46
4	HP13200-Z0A-003 Available to backorder	Rod Assy. Connecting	£114.36 £95.30
5	HP90001-ZN1-000 Available to backorder	Bolt. Connecting Rod. 6X37	£11.50 £9.58
6	HP90551-ZE1-000 Available to backorder	Clip. Piston Pin. 18mm	£1.87 £1.56
11	HP13310-Z0A-000 Available to backorder	Crankshaft Comp.	£236.64 £197.20
12	HP90401-Z0A-000 Available to backorder	Washer. Thrust	£8.00 £6.67
13	MO118552246/0 Available to backorder	Woodruff Key 25 X 18	£5.47 £4.56
