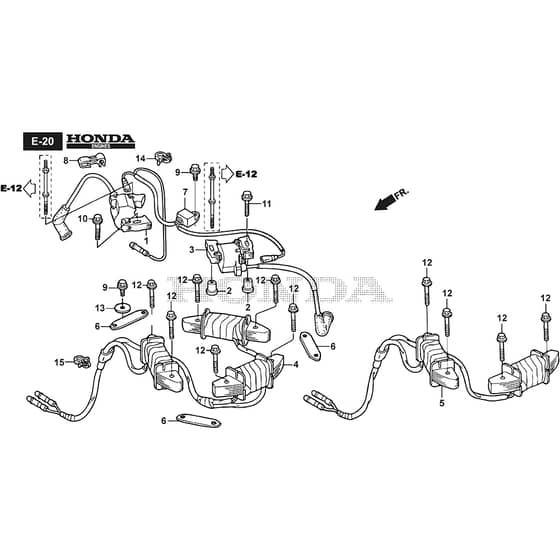

PARK 345 PWX - 2021 - 2F6130535/ST1 - Stiga Front Mower Ignition Coil Diagram

Description

Stiga PARK 345 PWX Parts Diagram

Product Name - PARK 345 PWX

Model Year - 2021

Model Type - P 901 C 4W

Art.N - 2F6130535/ST1

Engine Model - Honda GCV 530

	Part No.	Details
1	HP30500-Z0A-033 Available to backorder	Coil Assy. Ignition (#1)	£71.51 £59.59
2	HP30509-Z0A-000 In stock	Collar. Ignition Coil	Was £3.94 £3.28 Special Price £3.37 £2.81
3	HP30550-Z0A-033 In stock	Coil Assy. Ignition (#2)	£71.51 £59.59
5	HP31630-Z0A-811 Available to backorder	Coil Assy. Charge (12V.12A)	£192.84 £160.70
7	HP31740-Z0A-003 Available to backorder	Diode Assy. Engine Stop	£34.55 £28.79
8	HP32768-PJ7-000 Available to backorder	Clamp. Center Cord	£7.15 £5.96
9	HP90013-883-000 Available to backorder	Bolt. Flange. 6X12 (Ct200)	£4.34 £3.62
10	HP90015-883-000 Available to backorder	Bolt. Flange. 6X28 (Ct200)	£3.71 £3.09
13	HP90136-428-870 Available to backorder	Washer. Tank Setting	£3.83 £3.19
14	HP90654-SA4-003 Available to backorder	Clip. Wire Harness. 6mm (White)	£6.74 £5.62
