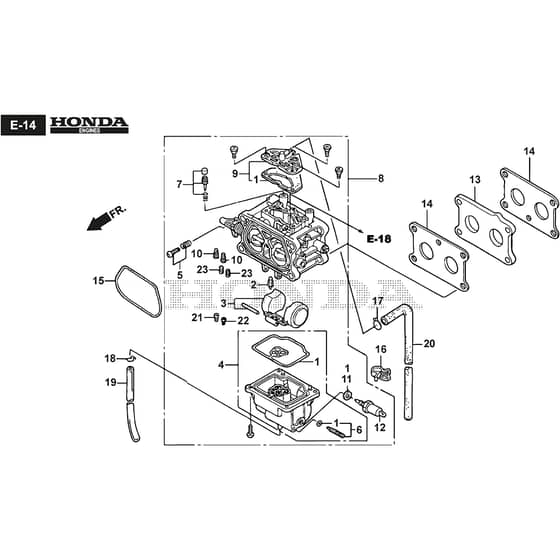

PARK 345 PWX - 2021 - 2F6130535/ST1 - Stiga Front Mower Carburettor Diagram

Name: PARK 345 PWX - 2021 - 2F6130535/ST1 - Stiga Front Mower Carburettor Diagram
SKU: park_345_pwx_2f6130535_st1_carburettor-group
Price: 0.88 GBP
Availability: InStock

Part No. park_345_pwx_2f6130535_st1_carburettor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 345 PWX - 2021 - 2F6130535/ST1 - Stiga Front Mower Carburettor Diagram

Description

Stiga PARK 345 PWX Parts Diagram

Product Name - PARK 345 PWX

Model Year - 2021

Model Type - P 901 C 4W

Art.N - 2F6130535/ST1

Engine Model - Honda GCV 530

	Part No.	Details
1	HP16010-Z0A-L32 Available to backorder	Gasket Set	£24.43 £20.36
2	HP16011-Z0A-004 Available to backorder	Valve. Float	£28.32 £23.60
3	HP16013-Z0A-004 Available to backorder	Float Set	£27.49 £22.91
4	HP16015-Z0A-802 Available to backorder	Chamber Set. Float	£67.56 £56.30
5	HP16016-Z0A-004 Available to backorder	Screw Set	£14.17 £11.81
6	HP16024-Z0A-004 Available to backorder	Screw Set. Drain	£14.17 £11.81
7	HP16028-Z0A-L32 Available to backorder	Screw Set. Pilot	£19.20 £16.00
8	HP16100-Z0A-L32 In stock	Carburetor Assy. (Bw02D A)	£283.32 £236.10
9	HP16139-Z0A-L32 Available to backorder	Cover Set. Air Vent	£48.79 £40.66
10	HP16168-Z0A-004 In stock	Cap	£6.46 £5.38
11	HP16178-Z0A-802 Available to backorder	Gasket	£6.76 £5.63
12	HP16200-Z0A-802 Available to backorder	Valve Assy. Solenoid	£69.72 £58.10
13	HP16211-Z0A-000 Available to backorder	Insulator. Carburetor	£12.40 £10.33
14	HP16212-Z0A-000 In stock	Packing. Insulator	£5.40 £4.50
15	HP17228-Z0A-003 In stock	Packing. Air Cleaner	£3.47 £2.89
16	HP90659-680-013 Available to backorder	Clip. Wire Harness	£6.74 £5.62
17	HP95002-02080 In stock	Clip. Tube (B8)	£1.19 £0.99
18	HP95002-02650 Available to backorder	Clip. Tube (B6.5)	£1.06 £0.88
19	HP95003-070-3031 Available to backorder	Tube. Vinyl. 4X7X300 (95003-07001-60M)	£1.60 £1.33
20	HP95005-454-0020S Available to backorder	Tube. 4.5X400 (95005-45001-20M)	£7.48 £6.23
21	HP99131-Z0A-0920 Available to backorder	Jet. Main. #92.5	£26.75 £22.29
22	HP99131-Z0A-0930 Available to backorder	Jet. Main. #93.8	£26.75 £22.29
23	HP99135-Z0A-0370 Available to backorder	Jet. Pilot. #37.5	£28.40 £23.67
24	HP16017-Z0A-801 Available to backorder	Screw	£5.59 £4.66
