PARK 340 X - 2016-2017 - 2F6130511/S16 - Stiga Front Mower Seat Diagram

Name: PARK 340 X - 2016-2017 - 2F6130511/S16 - Stiga Front Mower Seat Diagram
SKU: park_340_x_2f6130511_s16_seat-group
Price: 1.29 GBP
Availability: InStock

Part No. park_340_x_2f6130511_s16_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

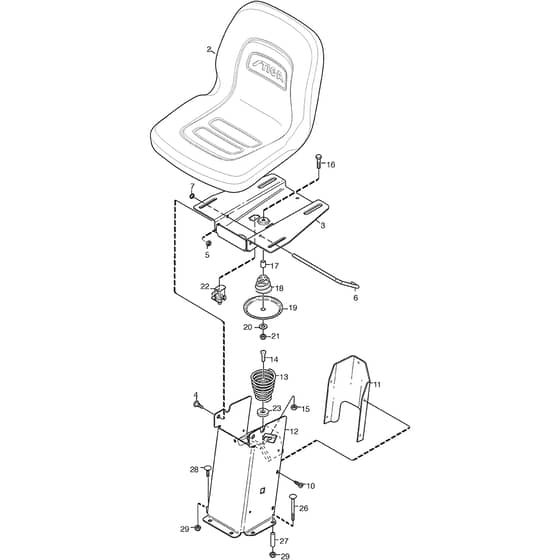

PARK 340 X - 2016-2017 - 2F6130511/S16 - Stiga Front Mower Seat Diagram

Description

Stiga PARK 340 X Parts Diagram

Product Name - PARK 340 X

Model Year - 2016-2017

Model Type - P 901 C 4W

Art.N - 2F6130511/S16

Engine Model - B&S Intek 4155 AVS

	Part No.	Details
1	MO137722604/0 Available to backorder	Seat	£337.86 £281.55
3	MO1134-5301-01 Available to backorder	Upper Seat Bracket	£109.09 £90.91
4	MO1134-0240-00 In stock	Screw	£8.80 £7.33
6	MO1134-5454-01 Available to backorder	Catch	£10.85 £9.04
7	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
10	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
11	MO1134-5300-01 Available to backorder	Rear Plate. Yellow	£45.04 £37.53
12	MO1134-5296-04 Available to backorder	Seat Bracket (Yellow)	£154.85 £129.04
13	MO137430116/0 In stock	Spring	£25.36 £21.13
14	MO9924-1235-19 Available to backorder	Screw	£3.79 £3.16
15	MO112156603/0 Available to backorder	Nut	£1.63 £1.36
16	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
17	MO1134-1565-06 Available to backorder	Spacer	£10.98 £9.15
18	MO1134-5302-01 Available to backorder	Spring	£8.53 £7.11
19	MO1134-5299-01 Available to backorder	Push Plate	£17.60 £14.67
20	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
22	MO1134-3156-02 Available to backorder	Switch	£46.48 £38.73
23	MO137160001/0 Available to backorder	Spacer	£12.40 £10.33
26	MO9897-0880-12 Available to backorder	Screw L . 80 mm	£1.97 £1.64
27	MO1134-1565-08 Available to backorder	Spacer	£8.66 £7.22
28	MO9897-0820-16 Available to backorder	Screw L . 20 mm	£1.97 £1.64
29	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
