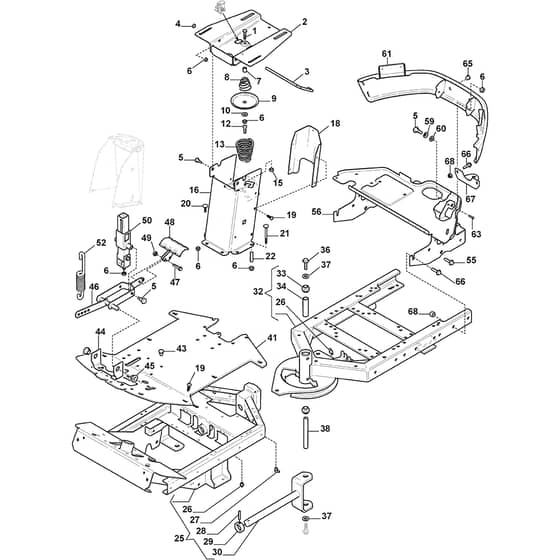

PARK 340 PX - 2018-2019 - 2F6130511/S18 - Stiga Front Mower Frame Diagram

Name: PARK 340 PX - 2018-2019 - 2F6130511/S18 - Stiga Front Mower Frame Diagram
SKU: park_340_px_2f6130511_s18_frame-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 340 PX - 2018-2019 - 2F6130511/S18 - Stiga Front Mower Frame Diagram

Description

Stiga PARK 340 PX Parts Diagram

Product Name - PARK 340 PX

Model Year - 2018-2019

Model Type - P 901 C 4W

Art.N - 2F6130511/S18

Engine Model - B&S Intek 4155 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
2	MO1134-5301-01 Available to backorder	Upper Seat Bracket	£109.09 £90.91
3	MO1134-5454-01 Available to backorder	Catch	£10.84 £9.03
4	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
5	MO1134-0240-00 In stock	Screw	£8.80 £7.33
6	MO112155000/0 In stock	Nut	£1.55 £1.29
7	MO1134-1565-06 Available to backorder	Spacer	£10.98 £9.15
8	MO1134-5302-01 Available to backorder	Spring	£8.52 £7.10
9	MO1134-5299-01 Available to backorder	Push Plate	£17.60 £14.67
10	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
12	MO9924-1235-19 Available to backorder	Screw	£3.79 £3.16
13	MO137430116/0 Available to backorder	Spring	£25.34 £21.12
15	MO112156603/0 Available to backorder	Nut	£1.55 £1.29
16	MO1134-5296-04 Available to backorder	Seat Bracket (Yellow)	£154.85 £129.04
18	MO1134-5300-01 Available to backorder	Rear Plate. Yellow	£45.04 £37.53
19	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
20	MO9897-0820-16 Available to backorder	Screw L . 20 mm	£1.97 £1.64
21	MO9897-0880-12 Available to backorder	Screw L . 80 mm	£1.97 £1.64
22	MO1134-1565-08 Available to backorder	Spacer	£8.65 £7.21
25	MO387800039/0 Available to backorder	Frame-Front	£929.10 £774.25
26	MO112379511/0 Available to backorder	Grease Dispenser Rak.straight	£1.55 £1.29
27	MO9501-0504-01 Available to backorder	Grease Nipple M6 90 90°	£3.24 £2.70
28	MO9595-0262-00 Available to backorder	Locating Pin	£1.69 £1.41
29	MO1134-0031-00 Available to backorder	Pivot Shaft Stop	£24.36 £20.30
30	MO1137-1119-02 Available to backorder	Fork	£168.92 £140.77
32	MO1134-6466-02 Available to backorder	Frame-Rear Assy	£438.08 £365.07
33	MO9547-0001-00 Available to backorder	Bearing	£29.56 £24.63
34	MO1134-5705-01 Available to backorder	Spacer	£22.81 £19.01
36	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
37	MO112521360/0 In stock	Washer	£1.55 £1.29
38	MO1134-5988-01 Available to backorder	Centre Shaft	£22.38 £18.65
41	MO1134-6586-01 Available to backorder	Floor Plate	£168.92 £140.77
43	MO9403-0048-70 Available to backorder	Cover Plug	£9.28 £7.73
44	MO1134-4117-01 Available to backorder	Bracket	£30.97 £25.81
45	MO1134-2684-01 Available to backorder	Bearing	£6.76 £5.63
46	MO387256053/0 Available to backorder	Lift Fork	£75.31 £62.76
47	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
48	MO1134-4938-01 Available to backorder	Lift Pedal	£24.01 £20.01
49	MO112292102/0 In stock	Nut	£1.69 £1.41
50	MO1134-4945-01 Available to backorder	Lift Catch Assy	£118.94 £99.12
52	MO4231-0013-00 In stock	Spring	£8.52 £7.10
55	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
56	MO1134-5944-01 Available to backorder	Tank Shelf Assy	£274.51 £228.76
59	MO9665-0002-00 Available to backorder	Washer	£2.26 £1.88
60	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
61	MO387457003/0 Available to backorder	Rear Bumper	£225.24 £187.70
63	MO9943-0516-16 In stock	Screw	£1.22 £1.02
65	MO1134-4100-01 Available to backorder	Plug	£4.37 £3.64
66	MO9959-0820-16 In stock	Screw	£1.55 £1.29
67	MO1134-5512-01 Available to backorder	Towing Plate	£20.40 £17.00
68	MO112154220/0 Available to backorder	Self-Lock Flanged Nut M8	£1.55 £1.29
