PARK 340 PWX - 2020 - 2F6130641/ST1 - Stiga Front Mower Engine Diagram

Name: PARK 340 PWX - 2020 - 2F6130641/ST1 - Stiga Front Mower Engine Diagram
SKU: park_340_pwx_2f6130641_st1_engine-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

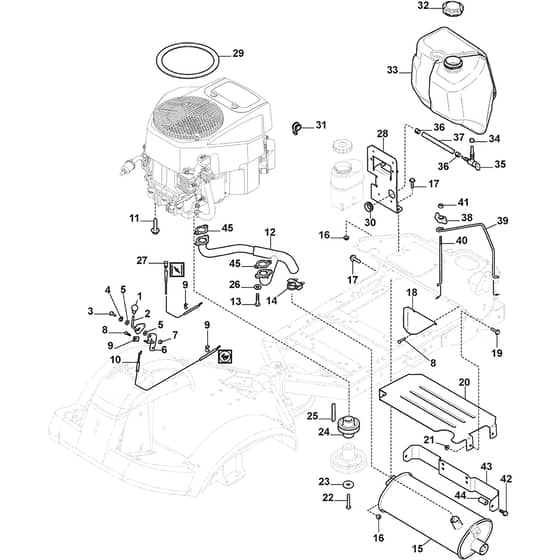

PARK 340 PWX - 2020 - 2F6130641/ST1 - Stiga Front Mower Engine Diagram

Description

Stiga PARK 340 PWX Parts Diagram

Product Name - PARK 340 PWX

Model Year - 2020

Model Type - P 901 C 4W

Art.N - 2F6130641/ST1

Engine Model - ST550

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-4078-01 Available to backorder	Knob	£5.48 £4.57
2	MO1134-5465-02 Available to backorder	Throttle Control Lever	£17.17 £14.31
3	MO1134-0240-00 In stock	Screw	£8.80 £7.33
4	MO9665-0002-00 Available to backorder	Washer	£2.26 £1.88
5	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
6	MO1134-5464-01 Available to backorder	Bracket	£27.31 £22.76
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO9943-0516-16 In stock	Screw	£1.22 £1.02
9	MO9500-9991-00 Available to backorder	Wire Clamp	£7.03 £5.86
10	MO187000205/1 Available to backorder	Throttle Control	£40.33 £33.61
11	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
12	MO387869535/0 Available to backorder	Exhaust Connection	£153.44 £127.87
13	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
14	MO9578-0011-01 Available to backorder	Tube Clamp	£14.22 £11.85
15	MO187751507/0 Available to backorder	Muffler Assy	£344.89 £287.41
16	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
17	MO9959-0820-16 In stock	Screw	£1.55 £1.29
18	MO1134-6234-01 Available to backorder	Heat Deflector	£17.53 £14.61
19	MO9959-0612-16 Available to backorder	Screw	£1.40 £1.17
20	MO1134-6251-01 Available to backorder	Heat Deflector	£38.00 £31.67
21	MO112292102/0 In stock	Nut	£1.69 £1.41
22	MO9987-5332-16 Available to backorder	Screw	£2.12 £1.77
23	MO1134-5017-02 Available to backorder	Washer	£2.81 £2.34
24	MO1137-0206-01 Available to backorder	Engine Belt Pulley	£32.38 £26.98
25	MO9600-0251-01 Available to backorder	Key	£6.47 £5.39
26	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
27	MO137090201/0 Available to backorder	Choke Control	£69.97 £58.31
29	MO125730031/0 Available to backorder	Intake Separator	£30.97 £25.81
30	MO1134-3203-01 Available to backorder	Grommet	£5.21 £4.34
31	MO1134-0994-02 Available to backorder	Tube Clamp	£6.76 £5.63
32	MO125795001/1 In stock	Cap	£7.96 £6.63
33	MO1134-5938-01 Available to backorder	Fuel Tank	£131.62 £109.68
34	MO337260156/0 In stock	Gasket	£8.66 £7.22
35	MO118563206/0 In stock	Fuel Shut-Off Valve	£23.65 £19.71
36	MO9578-0023-02 Available to backorder	Hose Clamp	£6.47 £5.39
37	MO1134-2975-15 Available to backorder	Fuel Tube Cutting length 1.1 mt	£16.09 £13.41
38	MO1134-4481-02 Available to backorder	Wing Nut	£5.76 £4.80
39	MO1134-5942-01 Available to backorder	Tank Loop	£9.16 £7.63
40	MO1134-5996-01 Available to backorder	Tank Loop	£6.62 £5.52
41	MO112154510/0 In stock	Nut	£1.55 £1.29
42	MO9945-0825-16 In stock	Screw	£2.40 £2.00
43	MO387602503/0 Available to backorder	Protection	£53.50 £44.58
44	MO1134-1565-09 Available to backorder	Spacer	£14.22 £11.85
45	MO118551272/0 Available to backorder	Muffler Gasket	£2.53 £2.11
