PARK 340 PWX - 2018-2019 - 2F6130621/S18 - Stiga Front Mower Steering Diagram

Description

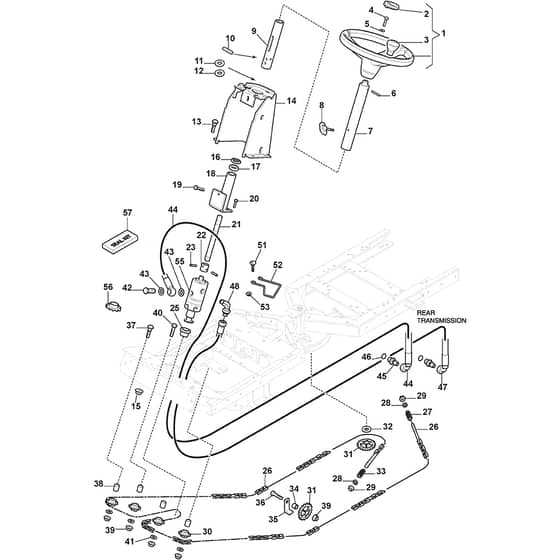

Stiga PARK 340 PWX Parts Diagram

Product Name - PARK 340 PWX

Model Year - 2018-2019

Model Type - P 901 C 4W

Art.N - 2F6130621/S18

Engine Model - B&S Vanguard 18

	Part No.	Details
1	MO337961200/0 Available to backorder	Steering Wheel	£344.90 £287.42
2	MO337580550/0 Available to backorder	Steering Plate	£8.72 £7.27
3	MO187593701/0 Available to backorder	Knob	£47.87 £39.89
4	MO112793102/0 In stock	Screw	£1.55 £1.29
5	MO112583500/0 In stock	Grower	£1.55 £1.29
6	MO112620299/0 Available to backorder	Elastic Pin	£1.84 £1.53
7	MO387520101/2 Available to backorder	Steering Column From S.N 20AA1FMV000001	£92.90 £77.42
8	MO337394201/0 Available to backorder	Wing Nut	£13.25 £11.04
9	MO387520119/0 Available to backorder	Steering Column.Lower	£76.02 £63.35
10	MO9595-0262-00 In stock	Locating Pin 0.5 mm	£1.79 £1.49
11	MO9699-0103-02 Available to backorder	Washer 1.0 mm	£2.12 £1.77
12	MO9699-0114-02 Available to backorder	Washer 1.0 mm	£1.97 £1.64
13	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
14	MO387785241/1 Available to backorder	Steering Console (Yellow) From S.N 19KA1FMV000150	£102.77 £85.64
14	MO387785241/0 Available to backorder	Steering Console (Yellow)	£102.77 £85.64
15	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
16	MO9695-0011-00 Available to backorder	Washer	£2.12 £1.77
17	MO9549-0017-00 Available to backorder	Ball Bearing	£11.82 £9.85
18	MO387650007/1 Available to backorder	Steering Column Assy	£66.16 £55.13
19	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
20	MO9939-0612-16 Available to backorder	Screw	£1.97 £1.64
21	MO137033111/0 Available to backorder	Steering Rod	£46.48 £38.73
22	MO1134-4118-01 Available to backorder	Coupling	£22.10 £18.42
23	MO9595-0256-01 Available to backorder	Locating Pin	£2.11 £1.76
25	MO137038014/0 Available to backorder	Bushing	£12.38 £10.32
26	MO387106407/1 Available to backorder	Steering Chain Assy	£302.66 £252.22
27	MO1134-3817-02 Available to backorder	Spring L . 33 mm	£12.25 £10.21
28	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
29	MO112155000/0 In stock	Nut	£1.55 £1.29
30	MO1134-2816-01 In stock	Sprocket	£10.37 £8.64
31	MO1134-3547-01 In stock	Sprocket	£12.67 £10.56
33	MO1134-3817-01 In stock	Spring L . 58 mm	Was £12.67 £10.56 Special Price £7.94 £6.62
34	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
35	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
36	MO112794300/0 Available to backorder	Screw	£1.84 £1.53
37	MO9897-1040-12 Available to backorder	Screw	£3.25 £2.71
38	MO1134-0041-02 In stock	Bushing	£9.73 £8.11
39	MO9739-1031-22 In stock	Nut	£1.97 £1.64
40	MO112794900/0 Available to backorder	Screw	£1.79 £1.49
41	MO112521360/0 In stock	Washer	£1.55 £1.29
42	MO1134-6323-01 Available to backorder	Banjo Bolt 3.8	£10.14 £8.45
43	MO1134-4948-02 Available to backorder	Washer	£2.11 £1.76
44	MO1137-0214-03 Available to backorder	Hydraulic Hose L . 2050 mm	£100.64 £83.87
45	MO1134-4282-01 Available to backorder	Hydraulic Nipple	£45.04 £37.53
46	MO9404-0028-01 Available to backorder	O-Ring	£5.22 £4.35
47	MO1137-0195-02 Available to backorder	Hydraulic Hose L . 1740 mm	£95.74 £79.78
48	MO1134-7073-01 Available to backorder	Hydraulic Coupling 90	£39.42 £32.85
51	MO112815200/0 In stock	Screw	£1.55 £1.29
52	MO137295200/0 Available to backorder	Guide	£20.29 £16.91
53	MO112292102/0 In stock	Nut	£1.70 £1.42
55	MO187305502/0 Available to backorder	Steering Booster 100 cc	£1,121.47 £934.56
56	MO1139-2106-01 Available to backorder	Pinion (Steering Booster)	£147.80 £123.17
57	MO1139-2124-01 Available to backorder	Seal Kit-Steering Booster	£161.89 £134.91
