PARK 340 PWX - 2018-2019 - 2F6130621/S18 - Stiga Front Mower K574F Diagram

Name: PARK 340 PWX - 2018-2019 - 2F6130621/S18 - Stiga Front Mower K574F Diagram
SKU: park_340_pwx_2f6130621_s18_k574f-group
Price: 1.01 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 340 PWX - 2018-2019 - 2F6130621/S18 - Stiga Front Mower K574F Diagram

Description

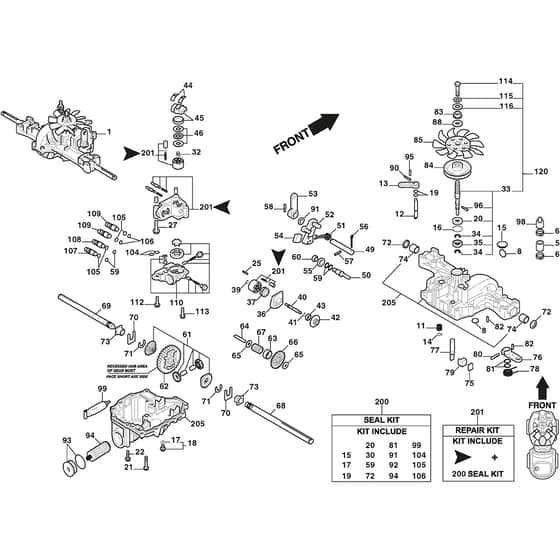

Stiga PARK 340 PWX Parts Diagram

Product Name - PARK 340 PWX

Model Year - 2018-2019

Model Type - P 901 C 4W

Art.N - 2F6130621/S18

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1137-0125-01 Available to backorder	Transaxle K574F	£2,293.92 £1,911.60
5	MO1139-1301-01 Available to backorder	Tube	£10.90 £9.08
6	MO1139-1336-01 Available to backorder	Cobra Clip	£6.76 £5.63
7	MO1139-1306-01 Available to backorder	Adaptor	£6.26 £5.22
8	MO1139-1150-01 Available to backorder	Magnet	£8.24 £6.87
11	MO1139-1347-01 Available to backorder	Spring	£4.52 £3.77
13	MO1139-1189-01 Available to backorder	By-Pass Lever	£9.19 £7.66
14	MO1139-1161-01 Available to backorder	Ring	£1.55 £1.29
15	MO1139-1735-01 In stock	Bore Plug	£9.61 £8.01
16	MO1139-1104-01 Available to backorder	Snap Ring	£4.52 £3.77
17	MO1139-1103-01 Available to backorder	Washer	£6.31 £5.26
18	MO1139-1500-01 Available to backorder	Drain Bolt Kit	£6.60 £5.50
20	MO1139-1119-01 Available to backorder	Seal 15357	£6.10 £5.08
25	MO1139-1158-01 Available to backorder	Pin	£4.52 £3.77
32	MO1139-1245-01 Available to backorder	Pump Spring	£4.81 £4.01
33	MO1139-1725-01 Available to backorder	Pump Shaft Assy	£143.88 £119.90
34	MO1139-1750-01 Available to backorder	Ring	£4.52 £3.77
35	MO1139-1110-01 Available to backorder	Ball Bearing	£17.98 £14.98
36	MO1139-1458-01 Available to backorder	Housing	£23.27 £19.39
37	MO1139-1438-01 Available to backorder	Bearing	£115.99 £96.66
39	MO1139-1160-01 Available to backorder	Washer	£4.52 £3.77
40	MO1139-1353-01 Available to backorder	Motor Shaft	£39.61 £33.01
41	MO1139-1021-01 Available to backorder	Snap Ring	£4.52 £3.77
42	MO1139-1272-01 Available to backorder	Motor Gear	£23.20 £19.33
43	MO1139-1453-01 Available to backorder	Bearing	£18.77 £15.64
45	MO1139-2691-01 Available to backorder	Swash Plate	£45.26 £37.72
46	MO1139-1508-01 Available to backorder	Thrust Bearing Kit	£69.31 £57.76
51	MO1139-1407-01 Available to backorder	Torsion Spring	£12.16 £10.13
52	MO1139-1409-01 Available to backorder	Lever	£56.11 £46.76
53	MO1139-1325-01 Available to backorder	Control Lever	£27.17 £22.64
55	MO1139-1102-01 Available to backorder	Washer	£5.76 £4.80
56	MO1139-1355-01 Available to backorder	Cotter Pin	£4.52 £3.77
57	MO1139-1329-01 Available to backorder	Pin	£4.82 £4.02
58	MO1139-1285-01 Available to backorder	Pin	£4.52 £3.77
60	MO1139-1127-01 Available to backorder	Nut	£4.52 £3.77
61	MO1139-1404-01 Available to backorder	Diff.Gear Kit	£73.56 £61.30
62	MO1139-1258-01 Available to backorder	Final Gear	£111.76 £93.13
63	MO1139-1255-01 Available to backorder	Collar	£9.89 £8.24
64	MO1139-1256-01 Available to backorder	Reduction Shaft	£14.70 £12.25
65	MO1139-1398-01 Available to backorder	Washer	£5.22 £4.35
67	MO1139-1361-01 Available to backorder	Final Pinion Gear	£25.18 £20.98
68	MO1139-1344-01 Available to backorder	Axle Shaft-Rh	£82.06 £68.38
69	MO1139-1345-01 Available to backorder	Axle Shaft-Lh	£102.17 £85.14
70	MO1139-1078-01 Available to backorder	Thrust Washer	£12.04 £10.03
71	MO1139-1163-01 Available to backorder	Ring	£4.52 £3.77
72	MO1139-1080-01 In stock	Seal 19328	£13.30 £11.08
73	MO1139-1164-01 Available to backorder	Bushing	£6.60 £5.50
74	MO1139-1414-01 Available to backorder	Bushing	£6.26 £5.22
75	MO1139-1260-01 Available to backorder	Brake Shoe	£4.52 £3.77
76	MO1139-1261-01 Available to backorder	Brake Arm	£10.04 £8.37
77	MO1139-1320-01 Available to backorder	Brake Shaft	£47.80 £39.83
78	MO1139-1411-01 Available to backorder	Return Spring	£9.23 £7.69
79	MO1139-1264-01 Available to backorder	Brake Actuator	£5.62 £4.68
80	MO1139-1282-01 Available to backorder	Pin	£5.04 £4.20
83	MO1139-1248-01 Available to backorder	Spline Collar	£8.52 £7.10
84	MO1139-1469-01 In stock	Pulley 1A6460-25800	£92.86 £77.38
85	MO1134-4190-01 In stock	Fan	£21.12 £17.60
88	MO1139-1276-01 Available to backorder	Collar	£6.92 £5.77
89	MO1139-1166-01 Available to backorder	Pin	£4.94 £4.12
91	TT1A646024440 Available to backorder	Seal Ring Order Gasket Kit	£7.32 £6.10
92	MO1139-1534-01 Available to backorder	O-Ring	£1.21 £1.01
93	MO1139-1510-01 Available to backorder	Cap Kit	£9.56 £7.97
94	MO1139-1186-01 In stock	Filter	£93.36 £77.80
95	MO1139-1279-01 Available to backorder	Pin	£4.52 £3.77
96	MO1139-1148-01 Available to backorder	Pin	£4.52 £3.77
99	MO1139-1443-01 Available to backorder	Sealant (Tube)	£38.20 £31.83
105	MO1139-0239-01 Available to backorder	Packing	£4.81 £4.01
106	MO1139-1168-01 Available to backorder	Packing	£5.76 £4.80
108	MO1139-1460-01 Available to backorder	Piping	£51.86 £43.22
109	MO1139-1464-01 Available to backorder	Connector	£58.01 £48.34
110	MO1139-1526-01 Available to backorder	Pump Case Kit	£643.63 £536.36
114	MO1139-1719-01 Available to backorder	Bolt	£8.24 £6.87
200	MO1139-2744-01 Available to backorder	Seal Kit	£295.63 £246.36
205	MO1139-1751-01 Available to backorder	Housing Lower	£741.62 £618.02
