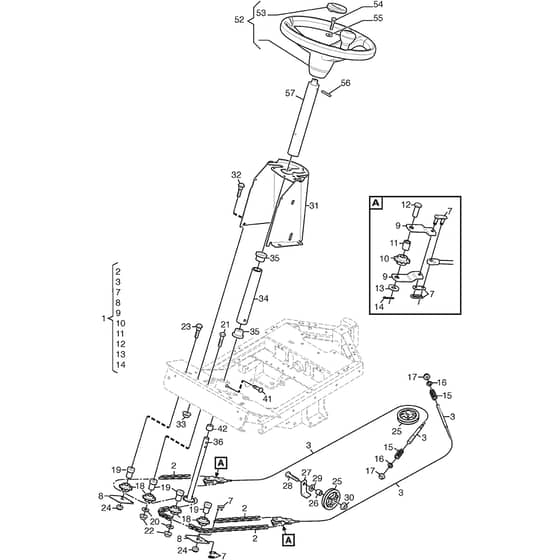

PARK 340 MX - 2015 - 2F6130520/S15 - Stiga Front Mower Steering Diagram

Name: PARK 340 MX - 2015 - 2F6130520/S15 - Stiga Front Mower Steering Diagram
SKU: park_340_mx_2f6130520_s15_steering-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 340 MX - 2015 - 2F6130520/S15 - Stiga Front Mower Steering Diagram

Description

Stiga PARK 340 MX Parts Diagram

Product Name - PARK 340 MX

Model Year - 2015

Model Type - P 901 C 4W

Art.N - 2F6130520/S15

Engine Model - PowerBuilt 4155 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387106410/1 Available to backorder	Steering Chain Assy	£170.17 £141.81
2	MO187000355/0 Available to backorder	Chain 129 länk	£32.38 £26.98
3	MO1134-9099-01 Available to backorder	Steering Wire Sats vä+hö.kit L+R	£61.93 £51.61
7	MO187060100/1 In stock	Chain Lock	£6.76 £5.63
8	MO1134-5652-01 Available to backorder	Attachment	£5.06 £4.22
9	MO1134-5651-01 Available to backorder	Bracket	£12.20 £10.17
11	MO1134-0041-02 In stock	Bushing	£9.72 £8.10

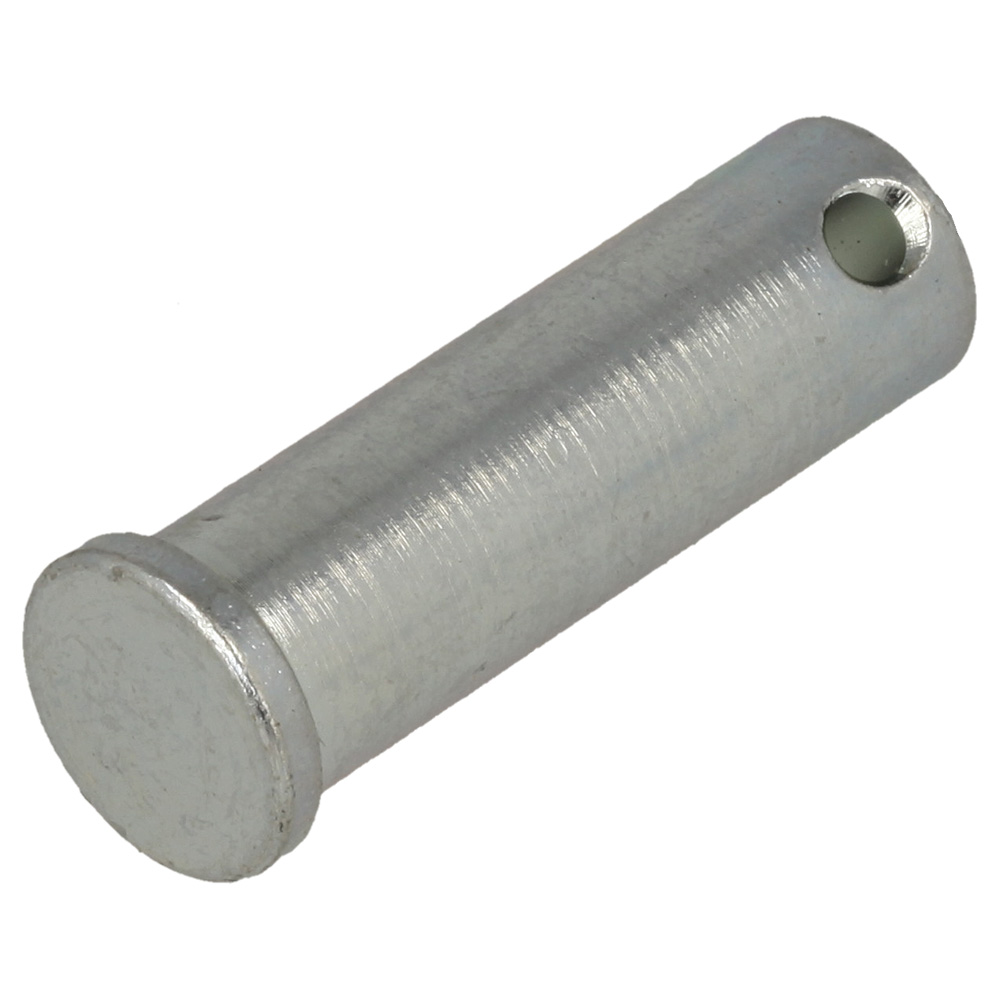

12	MO1134-4817-01 Available to backorder	Pin	£12.67 £10.56
14	MO9599-0054-02 Available to backorder	Split Pin	£1.97 £1.64
15	MO1134-3817-01 In stock	Spring	Was £12.67 £10.56 Special Price £7.94 £6.62
16	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
17	MO112155000/0 In stock	Nut	£1.55 £1.29
18	MO1134-2816-01 In stock	Sprocket	£10.36 £8.63
19	MO1134-5653-01 Available to backorder	Spacer	£10.56 £8.80
21	MO112692395/2 In stock	Screw	£3.24 £2.70
23	MO9897-1060-12 Available to backorder	Screw	£3.52 £2.93
24	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
25	MO1134-9025-01 Available to backorder	Steering Pulley Sats 2 st.kit of 2	£20.69 £17.24
26	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
27	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
28	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
29	MO112521360/0 In stock	Washer	£1.55 £1.29
30	MO9739-1031-22 In stock	Nut	£1.97 £1.64
31	MO1134-5349-01 Available to backorder	Steering Console (Yellow) 1-00	£104.87 £87.39
32	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
33	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
34	MO1134-1305-05 Available to backorder	Steering Column.Lower	£44.56 £37.13
35	MO1134-1901-01 Available to backorder	Bearing	£11.96 £9.97
36	MO1137-0079-04 Available to backorder	Steering Rod Assy	£44.92 £37.43
41	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
42	MO1134-2837-03 Available to backorder	Spacer	£11.06 £9.22
52	MO337961200/0 Available to backorder	Steering Wheel	£344.89 £287.41
53	MO337580550/0 Available to backorder	Steering Plate	£8.74 £7.28
54	MO112793102/0 Available to backorder	Screw	£1.55 £1.29
55	MO112583500/0 In stock	Grower	£1.55 £1.29
56	MO112620299/0 Available to backorder	Elastic Pin	£1.82 £1.52
57	MO387520127/0 Available to backorder	Steering Rod	£97.14 £80.95
