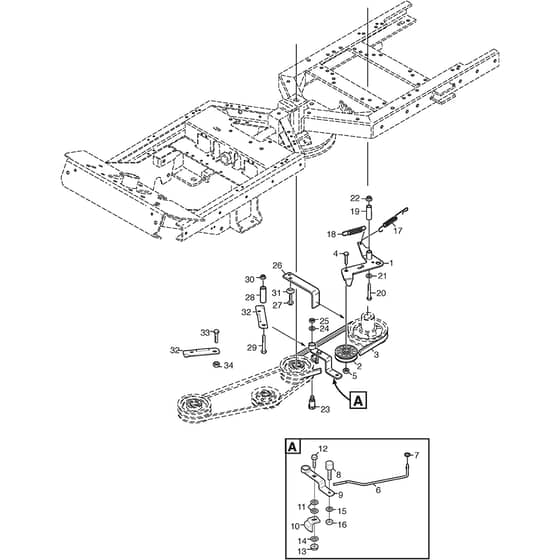

PARK 340 MX - 2015 - 2F6130520/S15 - Stiga Front Mower PTO 01 Diagram

Name: PARK 340 MX - 2015 - 2F6130520/S15 - Stiga Front Mower PTO 01 Diagram
SKU: park_340_mx_2f6130520_s15_pto_01-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 340 MX - 2015 - 2F6130520/S15 - Stiga Front Mower PTO 01 Diagram

Description

Stiga PARK 340 MX Parts Diagram

Product Name - PARK 340 MX

Model Year - 2015

Model Type - P 901 C 4W

Art.N - 2F6130520/S15

Engine Model - PowerBuilt 4155 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-2018-02 Available to backorder	Tension Arm	£39.42 £32.85
2	MO387605008/0 In stock	Tension Roller (Grey) Sats 1 st.kit of 1	£35.20 £29.33
3	MO1134-9173-01 In stock	Drive Belt Replaced by Service Code. 1134-9071-01	£28.28 £23.57
4	MO112794300/0 Available to backorder	Screw	£1.82 £1.52
5	MO112295200/0 In stock	Nut	£1.40 £1.17
6	MO137033100/0 Available to backorder	Brake Rod	£22.25 £18.54
7	MO112604897/0 Available to backorder	Starlock	£1.55 £1.29
8	MO1134-4170-01 Available to backorder	Nippel	£16.75 £13.96
9	MO1134-4111-01 In stock	Brake Arm	£29.84 £24.87
10	MO1134-4164-03 Available to backorder	Brake Pad	£30.97 £25.81
12	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
13	MO112155000/0 In stock	Nut	£1.55 £1.29
14	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
15	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
16	MO112154510/0 In stock	Nut	£1.55 £1.29
17	MO4231-0013-00 In stock	Spring	£8.52 £7.10
18	MO1135-3307-01 Available to backorder	Brake Spring	£23.30 £19.42
19	MO1134-1565-10 Available to backorder	Spacer	£8.23 £6.86
20	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
21	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
22	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
23	MO1134-4163-02 Available to backorder	Shoulder Bolt	£10.27 £8.56
24	MO112521360/0 In stock	Washer	£1.55 £1.29
26	MO1134-3958-01 Available to backorder	Belt Guide	£17.04 £14.20
27	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
28	MO1134-0041-03 Available to backorder	Bushing	£11.27 £9.39
29	MO112794950/0 Available to backorder	Screw	£3.94 £3.28
30	MO9739-1031-22 In stock	Nut	£1.97 £1.64
31	MO325160039/0 Available to backorder	Spacer	£1.55 £1.29
32	MO337546547/0 Available to backorder	Plate	£6.76 £5.63
33	MO112793102/0 In stock	Screw	£1.55 £1.29
34	MO112293201/0 In stock	Nut	£1.69 £1.41
