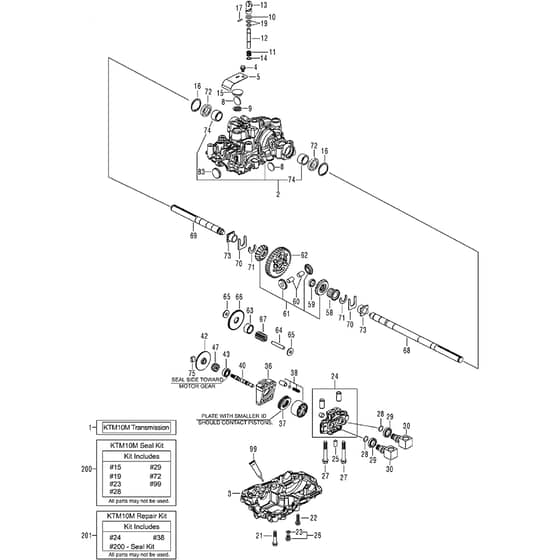

PARK 340 MX - 2015 - 2F6130520/S15 - Stiga Front Mower KTM10M Diagram

Description

Stiga PARK 340 MX Parts Diagram

Product Name - PARK 340 MX

Model Year - 2015

Model Type - P 901 C 4W

Art.N - 2F6130520/S15

Engine Model - PowerBuilt 4155 AVS

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1139-1417-01 Available to backorder	Housing-Upper Inkl. pos 74 _ KTM10M	£815.78 £679.82
3	MO1139-1418-01 Available to backorder	Housing-Lower KTM10M	£247.55 £206.29
4	MO1139-1733-01 Available to backorder	Bolt KTM10M	£4.52 £3.77
5	MO1139-1384-01 Available to backorder	Skid Plate KTM10M	£17.82 £14.85
8	MO1139-1150-01 Available to backorder	Magnet KTM10M	£8.24 £6.87
9	MO1139-1341-01 Available to backorder	Magnet Holder KTM10M	£5.62 £4.68
10	MO1139-1388-01 Available to backorder	Washer KTM10M	£4.97 £4.14
13	MO1139-1189-01 Available to backorder	By-Pass Lever KTM10M	£9.19 £7.66
15	MO1139-1397-01 Available to backorder	Sealing Cap KTM10M	£46.68 £38.90
16	MO1139-1444-01 Available to backorder	Ring KTM10M	£7.58 £6.32
19	MO1139-1114-01 Available to backorder	O-Ring KTM10M	£4.81 £4.01
21	MO1139-1741-01 Available to backorder	Bolt KTM10M	£4.81 £4.01
23	MO1139-1103-01 Available to backorder	Washer KTM10M	£6.31 £5.26
24	MO1139-1419-02 Available to backorder	Center Case KTM10M	£707.30 £589.42
26	MO1139-1500-01 Available to backorder	Drain Bolt Kit KTM10M	£6.60 £5.50
27	MO1139-1449-01 Available to backorder	Bolt KTM10M	£4.08 £3.40
28	MO1139-1446-01 Available to backorder	Packing KTM10M	£6.26 £5.22
29	MO1139-1447-01 Available to backorder	Seal KTM10M	£17.54 £14.62
36	MO1139-1504-01 Available to backorder	Motor Housing KTM10M	£82.06 £68.38
37	MO1139-1438-01 Available to backorder	Bearing KTM10M	£115.99 £96.66
38	MO1139-1139-01 Available to backorder	Cylinder Block Assy KTM10M	£229.15 £190.96
43	MO1139-1453-01 Available to backorder	Bearing KTM10M	£18.77 £15.64
47	MO1139-1425-01 Available to backorder	Motor Gear KTM10M	£162.67 £135.56
58	MO1139-1330-01 Available to backorder	Collar KTM10M	£20.65 £17.21
59	MO1139-1435-01 Available to backorder	Collar. Axle KTM10M	£29.71 £24.76
60	MO1139-1440-01 Available to backorder	Pin KTM10M	£5.66 £4.72
61	MO1139-1439-01 Available to backorder	Differential Gear Kit KTM10M	£176.82 £147.35
62	MO1139-1429-01 Available to backorder	Final Gear KTM10M	£488.04 £406.70
64	MO1139-1256-01 Available to backorder	Reduction Shaft KTM10M	£14.70 £12.25
65	MO1139-1398-01 Available to backorder	Washer KTM10M	£5.22 £4.35
67	MO1139-1361-01 Available to backorder	Final Pinion Gear KTM10M	£25.18 £20.98
68	MO1139-1432-01 Available to backorder	Axle KTM10M	£629.51 £524.59
69	MO1139-1431-01 Available to backorder	Axle KTM10M	£389.02 £324.18
70	MO1139-1194-01 Available to backorder	Thrust Washer KTM10M	£6.80 £5.67
71	MO1139-1155-01 Available to backorder	Ring KTM10M	£4.52 £3.77
72	MO1139-1044-01 Available to backorder	Seal 25.4428 KTM10M	£23.06 £19.22
73	MO1139-1156-01 Available to backorder	Bushing KTM10M	£9.41 £7.84
74	MO1139-1415-01 Available to backorder	Bushing KTM10M	£9.47 £7.89
75	MO1139-1260-01 Available to backorder	Brake Shoe KTM10M	£4.52 £3.77
83	MO1139-1450-01 Available to backorder	Sealing Cap KTM10M	£23.34 £19.45
99	MO1139-1443-01 Available to backorder	Sealant (Tube) KTM10M	£38.20 £31.83
200	MO1139-1436-01 Available to backorder	Seal Kit KTM10M	£117.06 £97.55
