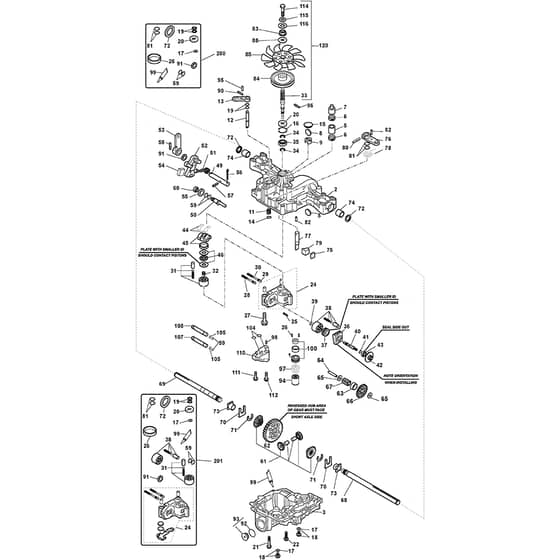

PARK 340 MX - 2015 - 2F6130520/S15 - Stiga Front Mower K574G Diagram

Description

Stiga PARK 340 MX Parts Diagram

Product Name - PARK 340 MX

Model Year - 2015

Model Type - P 901 C 4W

Art.N - 2F6130520/S15

Engine Model - PowerBuilt 4155 AVS

	Part No.	Details
1	MO1137-0124-01 Available to backorder	Transaxle K574G	£1,975.33 £1,646.11
5	MO1139-1301-01 Available to backorder	Tube	£10.88 £9.07
6	MO1139-1336-01 Available to backorder	Cobra Clip	£6.77 £5.64
7	MO1139-1306-01 Available to backorder	Adaptor	£6.26 £5.22
8	MO1139-1150-01 Available to backorder	Magnet	£8.24 £6.87
9	MO1139-1341-01 Available to backorder	Magnet Holder	£5.60 £4.67
11	MO1139-1347-01 Available to backorder	Spring	£4.51 £3.76
13	MO1139-1189-01 Available to backorder	By-Pass Lever	£9.18 £7.65
14	MO1139-1161-01 Available to backorder	Ring	£1.55 £1.29
15	MO1139-1735-01 In stock	Bore Plug	£9.62 £8.02
16	MO1139-1104-01 Available to backorder	Snap Ring	£4.51 £3.76
17	MO1139-1103-01 Available to backorder	Washer	£6.30 £5.25
18	MO1139-1500-01 Available to backorder	Drain Bolt Kit Pos 17 incl.	£6.61 £5.51
20	MO1139-1119-01 Available to backorder	Seal 15357	£6.08 £5.07
24	MO1139-1487-01 Available to backorder	Center Case	£565.84 £471.53
25	MO1139-1158-01 Available to backorder	Pin	£4.51 £3.76
28	MO1139-1468-01 Available to backorder	Ids Valve	£13.87 £11.56
30	TT168T2084770 Available to backorder	Filter	£2.69 £2.24
31	MO1139-1601-01 Available to backorder	Cylinder Block Kit	£1,250.00 £1,041.67
32	MO1139-1245-01 Available to backorder	Pump Spring	£4.82 £4.02
34	MO1139-1750-01 Available to backorder	Ring	£4.51 £3.76
35	MO1139-1110-01 Available to backorder	Ball Bearing	£17.98 £14.98
36	MO1139-1458-01 Available to backorder	Housing	£23.26 £19.38
37	MO1139-1438-01 Available to backorder	Bearing	£115.98 £96.65
39	MO1139-1160-01 Available to backorder	Washer	£4.51 £3.76
40	MO1139-1353-01 Available to backorder	Motor Shaft	£39.62 £33.02
41	MO1139-1021-01 Available to backorder	Snap Ring	£4.51 £3.76
42	MO1139-1272-01 Available to backorder	Motor Gear	£23.20 £19.33
43	MO1139-1453-01 Available to backorder	Bearing	£18.77 £15.64
45	MO1139-2691-01 Available to backorder	Swash Plate	£45.28 £37.73
46	MO1139-1508-01 Available to backorder	Thrust Bearing Kit	£69.31 £57.76
52	MO1139-1409-01 Available to backorder	Lever	£56.11 £46.76
53	MO1139-1325-01 Available to backorder	Control Lever	£27.17 £22.64
55	MO1139-1102-01 Available to backorder	Washer	£5.76 £4.80
56	MO1139-1355-01 Available to backorder	Cotter Pin	£4.51 £3.76
57	MO1139-1329-01 Available to backorder	Pin	£4.82 £4.02
58	MO1139-1285-01 Available to backorder	Pin	£4.51 £3.76
60	MO1139-1127-01 Available to backorder	Nut	£4.51 £3.76
61	MO1139-1404-01 Available to backorder	Diff.Gear Kit	£73.57 £61.31
62	MO1139-1258-01 Available to backorder	Final Gear	£111.76 £93.13
63	MO1139-1255-01 Available to backorder	Collar	£9.89 £8.24
64	MO1139-1256-01 Available to backorder	Reduction Shaft	£14.70 £12.25
65	MO1139-1398-01 Available to backorder	Washer	£5.22 £4.35
67	MO1139-1361-01 Available to backorder	Final Pinion Gear	£25.18 £20.98
68	MO1139-1344-01 In stock	Axle Shaft-Rh	£82.06 £68.38
69	MO1139-1345-01 In stock	Axle Shaft-Lh	£102.17 £85.14
70	MO1139-1078-01 Available to backorder	Thrust Washer	£12.05 £10.04
71	MO1139-1163-01 Available to backorder	Ring	£4.51 £3.76
72	MO1139-1080-01 In stock	Seal 19328	£13.28 £11.07
73	MO1139-1164-01 Available to backorder	Bushing	£6.61 £5.51
74	MO1139-1414-01 Available to backorder	Bushing	£6.30 £5.25
75	MO1139-1260-01 Available to backorder	Brake Shoe	£4.51 £3.76
76	MO1139-1261-01 Available to backorder	Brake Arm	£10.03 £8.36
77	MO1139-1320-01 Available to backorder	Brake Shaft	£47.81 £39.84
78	MO1139-1411-01 Available to backorder	Return Spring	£9.23 £7.69
79	MO1139-1264-01 Available to backorder	Brake Actuator	£5.60 £4.67
80	MO1139-1282-01 Available to backorder	Pin	£5.04 £4.20
83	MO1139-1248-01 Available to backorder	Spline Collar	£8.53 £7.11
84	MO1139-1469-01 In stock	Pulley 1A6460-25800	£92.86 £77.38
85	MO1134-4190-01 In stock	Fan	£21.12 £17.60
88	MO1139-1276-01 Available to backorder	Collar	£6.91 £5.76
89	MO1139-1166-01 Available to backorder	Pin	£4.96 £4.13
91	TT1A646024440 Available to backorder	Seal Ring	£7.56 £6.30
92	MO1139-1534-01 Available to backorder	O-Ring	£1.39 £1.16
93	MO1139-1510-01 Available to backorder	Cap Kit Pos 92 incl.	£9.55 £7.96
94	MO1139-1488-01 Available to backorder	Filter	£48.08 £40.07
95	MO1139-1279-01 Available to backorder	Pin	£4.51 £3.76
96	MO1139-1148-01 Available to backorder	Pin	£4.51 £3.76
97	MO1139-1492-01 Available to backorder	Charge Spring	£4.93 £4.11
99	MO1139-1443-01 Available to backorder	Sealant (Tube)	£38.21 £31.84
100	MO1139-1608-01 Available to backorder	Charge Pump Kit Pos 101 - 102 incl.	£66.80 £55.67
104	MO1139-1013-01 Available to backorder	O-Ring	£5.47 £4.56
105	MO1139-0239-01 Available to backorder	Packing	£4.82 £4.02
108	MO1139-1460-01 Available to backorder	Piping	£51.86 £43.22
114	MO1139-1719-01 Available to backorder	Bolt	£8.24 £6.87
120	MO1139-1726-01 Available to backorder	Pump Shaft Kit Pos 33. 114 - 116 incl.	£139.42 £116.18
200	MO1139-2746-01 Available to backorder	Seal Kit	£420.26 £350.22
201	MO1139-1507-01 Available to backorder	Repair Kit	£1,756.43 £1,463.69
