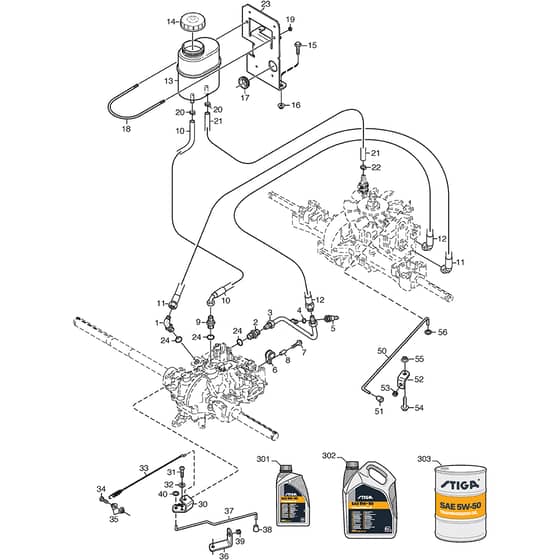

PARK 340 MWX - 2015-2017 - 2F6130620/S15 - Stiga Front Mower Transmission 02 Diagram

Name: PARK 340 MWX - 2015-2017 - 2F6130620/S15 - Stiga Front Mower Transmission 02 Diagram
SKU: park_340_mwx_2f6130620_s15_transmission_02-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 340 MWX - 2015-2017 - 2F6130620/S15 - Stiga Front Mower Transmission 02 Diagram

Description

Stiga PARK 340 MWX Parts Diagram

Product Name - PARK 340 MWX

Model Year - 2015-2017

Model Type - P 901 C 4W

Art.N - 2F6130620/S15

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1134-5875-01 Available to backorder	Hydraulic Coupling 3.4"	£63.23 £52.69
3	MO1134-6039-01 Available to backorder	Hydraulic Pipe Assy	£190.04 £158.37
4	MO1134-4948-01 Available to backorder	Washer 1.4"	£2.68 £2.23
5	MO1134-6042-01 Available to backorder	Quick Coupling-Male	£30.97 £25.81
6	MO9578-0028-01 Available to backorder	Tube Clamp	£9.43 £7.86
7	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
8	MO1134-1565-09 Available to backorder	Spacer	£14.22 £11.85
9	MO1134-5809-01 Available to backorder	Hydraulic Coupling 3.4" x 9.16"	£17.60 £14.67
10	MO387869523/1 Available to backorder	Hydraulic Hose L . 1400 mm	£81.66 £68.05
11	MO387869529/1 Available to backorder	Hydraulic Hose L . 1275 mm	£94.32 £78.60
12	MO1137-0212-01 Available to backorder	Hydraulic Hose L . 1210 mm	£85.16 £70.97
13	MO387735257/1 Available to backorder	Hydraulic Oil Tank Assy Incl. Pos. 14	£119.18 £99.32
14	MO1137-0272-01 Available to backorder	Tank Cap	£32.38 £26.98
15	MO9959-0820-16 In stock	Screw	£1.55 £1.29
17	MO1134-3203-01 Available to backorder	Grommet	£5.21 £4.34
18	MO1134-5943-01 Available to backorder	Tank Loop	£7.31 £6.09
19	MO112154510/0 In stock	Nut	£1.55 £1.29
20	MO9578-0036-01 Available to backorder	Hose Clamp 14.6 - 17.8	£3.67 £3.06
21	MO1134-2779-03 Available to backorder	Tube L . 260 mm	£9.30 £7.75
22	MO9578-0023-04 Available to backorder	Hose Clamp 15*8	£6.05 £5.04
24	MO9404-0029-01 Available to backorder	O-Ring	£5.06 £4.22
31	MO9939-0612-16 Available to backorder	Screw	£1.97 £1.64
32	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
33	MO137065320/0 Available to backorder	Wire	£19.85 £16.54
34	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
35	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
36	MO1134-6084-01 Available to backorder	Control Bracket	£9.72 £8.10
37	MO1134-6083-01 Available to backorder	Control Rod	£7.19 £5.99
39	MO1134-2790-01 Available to backorder	Cable Protection	£6.47 £5.39
50	MO1134-4015-01 Available to backorder	Pull Rod	£11.27 £9.39
51	MO1134-4014-01 Available to backorder	Knob	£4.78 £3.98
56	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
301	MO1111-9281-01 Available to backorder	Transmission Oil Sae 5W-50 1.4L	£29.47 £24.56
302	MO1111-9282-01 In stock	Transmission Oil Sae 5W-50 5L	£100.91 £84.09
303	MO1111-9300-01 Available to backorder	Transmission Oil Sae 5W-50 60L	£945.29 £787.74
