PARK 340 MWX - 2015-2017 - 2F6130620/S15 - Stiga Front Mower Transmission 01 Diagram

Name: PARK 340 MWX - 2015-2017 - 2F6130620/S15 - Stiga Front Mower Transmission 01 Diagram
SKU: park_340_mwx_2f6130620_s15_transmission_01-group
Price: 1.16 GBP
Availability: InStock

Part No. park_340_mwx_2f6130620_s15_transmission_01-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 340 MWX - 2015-2017 - 2F6130620/S15 - Stiga Front Mower Transmission 01 Diagram

Description

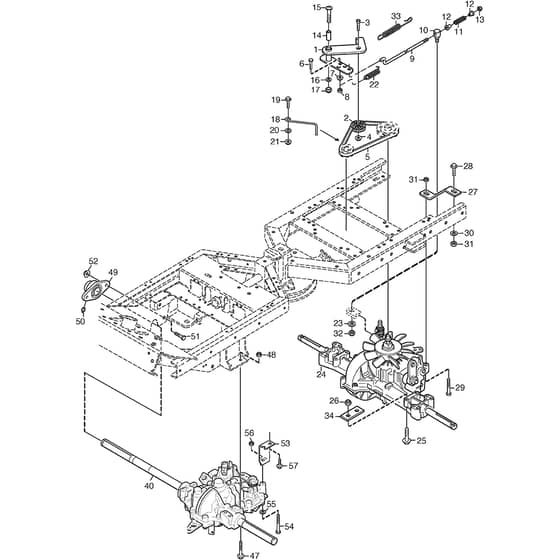

Stiga PARK 340 MWX Parts Diagram

Product Name - PARK 340 MWX

Model Year - 2015-2017

Model Type - P 901 C 4W

Art.N - 2F6130620/S15

Engine Model - B&S Vanguard 18

	Part No.	Details
1	MO387205001/0 Available to backorder	Tension Arm	£45.04 £37.53
2	MO387605028/0 In stock	Tension Roller	£44.70 £37.25
3	MO112794117/0 Available to backorder	Screw	£1.63 £1.36
4	MO112295200/0 In stock	Nut	£1.39 £1.16
5	MO1134-9058-01 In stock	Drive Belt Replaced by Service Code. 1134-9058-01	£19.50 £16.25
6	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
7	MO112292102/0 In stock	Nut	£1.70 £1.42
9	MO1134-3377-02 Available to backorder	Control Rod	£16.46 £13.72
10	MO1134-4171-01 Available to backorder	Pivot Pin	£7.96 £6.63
11	MO1134-4183-01 Available to backorder	Spring	£8.22 £6.85
12	MO1134-3456-01 Available to backorder	Bushing	£5.76 £4.80
14	MO1134-1565-08 Available to backorder	Spacer	£8.66 £7.22
15	MO112794988/0 Available to backorder	Screw	£6.19 £5.16
18	MO1134-3289-02 Available to backorder	Belt Guide	£21.12 £17.60
19	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
20	MO112523060/0 In stock	Washer	£1.55 £1.29
21	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
22	MO1134-6414-01 In stock	Spring	£5.34 £4.45
23	MO112523040/0 In stock	Washer	£1.55 £1.29
24	MO1137-0124-01 Available to backorder	Transaxle K574G	£1,975.33 £1,646.11
24	MO1137-0125-01 Available to backorder	Transaxle K574F	£2,293.92 £1,911.60
27	MO1134-3913-01 Available to backorder	Strut	£17.17 £14.31
28	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
29	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
32	MO112154510/0 In stock	Nut	£1.55 £1.29
33	MO4231-0013-00 In stock	Spring	£8.53 £7.11
34	MO1134-3376-01 Available to backorder	Spacer Plate	£16.13 £13.44
47	MO9960-0860-12 Available to backorder	Screw	£1.97 £1.64
49	MO1134-5703-01 Available to backorder	Flange Bearing Unit Incl. pos. 50	£29.57 £24.64
50	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
51	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
52	MO9731-1031-22 Available to backorder	Nut	£2.22 £1.85
53	MO1134-5670-01 Available to backorder	Strut	£19.42 £16.18
54	MO112692050/0 In stock	Screw	£1.84 £1.53
55	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
56	MO112155000/0 In stock	Nut	£1.55 £1.29
57	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
