PARK 340 MWX - 2015-2017 - 2F6130620/S15 - Stiga Front Mower Engine Diagram

Description

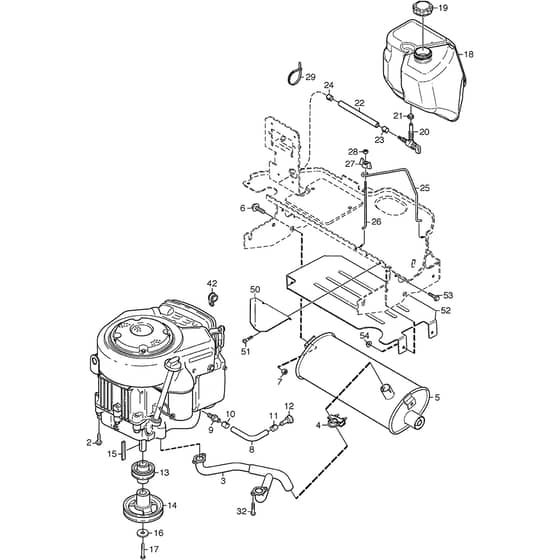

Stiga PARK 340 MWX Parts Diagram

Product Name - PARK 340 MWX

Model Year - 2015-2017

Model Type - P 901 C 4W

Art.N - 2F6130620/S15

Engine Model - B&S Vanguard 18

	Part No.	Details
1	MO9955-3725-16 Available to backorder	Screw	£2.53 £2.11
3	MO118738277/0 Available to backorder	Exhaust Pipe	£153.44 £127.87
4	MO9578-0011-01 Available to backorder	Tube Clamp	£14.22 £11.85
5	MO187751507/0 Available to backorder	Muffler Assy	£344.90 £287.42
6	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
7	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
8	MO1134-5827-04 Available to backorder	Oil Drain Assy Inkl. pos 9 - 12	£33.79 £28.16
9	MO1134-5825-01 Available to backorder	Nipple	£70.38 £58.65
10	MO9578-0023-04 Available to backorder	Hose Clamp	£6.05 £5.04
11	MO1134-3499-02 Available to backorder	Hose Clamp	£3.25 £2.71
12	MO1134-5826-01 Available to backorder	Plug	£23.84 £19.87
13	MO1137-0206-01 Available to backorder	Engine Belt Pulley	£32.38 £26.98
14	MO1137-0208-01 Available to backorder	Engine Pulley	£43.63 £36.36
15	MO9600-0251-01 Available to backorder	Key	£6.46 £5.38
16	MO1134-5017-02 Available to backorder	Washer	£2.82 £2.35
17	MO9987-5332-16 Available to backorder	Screw	£2.11 £1.76
18	MO1134-5938-01 Available to backorder	Fuel Tank	£131.60 £109.67
19	MO125795001/1 In stock	Fuel Tank Cap	£7.97 £6.64
20	MO118563206/0 In stock	Fuel Shut-Off Valve	£23.65 £19.71
21	MO337260156/0 In stock	Grommet	£9.01 £7.51
22	MO1134-2975-15 Available to backorder	Fuel Tube Cutting length 1.1 mt	£16.10 £13.42
24	MO9578-0023-02 Available to backorder	Hose Clamp	£6.46 £5.38
25	MO1134-5942-01 Available to backorder	Tank Loop	£9.17 £7.64
26	MO1134-5996-01 Available to backorder	Tank Loop	£6.64 £5.53
27	MO1134-4481-02 Available to backorder	Wing Nut	£5.76 £4.80
28	MO112154510/0 In stock	Nut	£1.55 £1.29
29	MO133320027/0 Available to backorder	Cable	£1.55 £1.29
30	MO9852-8013-16 Available to backorder	Screw	£2.11 £1.76
32	MO112760515/0 Available to backorder	Screw	£1.63 £1.36
42	MO1134-0994-02 Available to backorder	Tube Clamp	£6.77 £5.64
50	MO1134-6234-01 Available to backorder	Heat Deflector	£17.54 £14.62
51	MO9943-0516-16 In stock	Screw	£1.26 £1.05
52	MO1134-6251-01 Available to backorder	Heat Deflector	£38.00 £31.67
53	MO9959-0612-16 Available to backorder	Screw	£1.46 £1.22
54	MO112292102/0 In stock	Nut	£1.70 £1.42
