PARK 340 GX - 2021 - 2F6130241/STX - Stiga Front Mower Transmission Diagram

Name: PARK 340 GX - 2021 - 2F6130241/STX - Stiga Front Mower Transmission Diagram
SKU: park_340_gx_2f6130241_stx_transmission-group
Price: 1.29 GBP
Availability: InStock

Part No. park_340_gx_2f6130241_stx_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

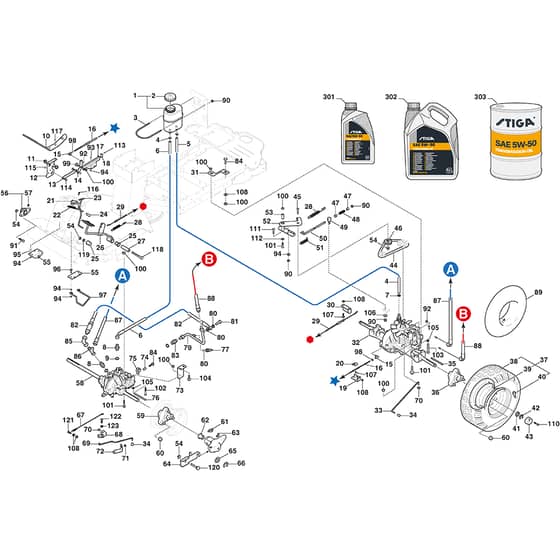

PARK 340 GX - 2021 - 2F6130241/STX - Stiga Front Mower Transmission Diagram

Description

Stiga PARK 340 GX Parts Diagram

Product Name - PARK 340 PGX

Model Year - 2021

Model Type - P 901 C

Art.N - 2F6130241/STX

Engine Model - ST500

	Part No.	Details
1	MO387735257/1 Available to backorder	Hydraulic Oil Tank Assy	£119.18 £99.32
2	MO1137-0272-01 Available to backorder	Tank Cap	£32.38 £26.98
3	MO1134-5943-01 Available to backorder	Tank Loop	£7.31 £6.09
4	MO9578-0036-01 Available to backorder	Hose Clamp	£3.66 £3.05
5	MO1134-2779-03 Available to backorder	Tube	£9.65 £8.04
6	MO387869523/1 Available to backorder	Hydraulic Hose	£81.66 £68.05
7	MO9578-0023-04 Available to backorder	Hose Clamp	£6.05 £5.04
8	MO1134-5810-01 Available to backorder	Hydraulic Coupling	£17.54 £14.62
9	MO9404-0029-01 Available to backorder	O-Ring	£5.06 £4.22
10	MO387500011/0 Available to backorder	Drive Pedal	£35.20 £29.33
11	MO1134-6313-01 Available to backorder	Bearing	£7.02 £5.85
12	MO387773583/0 Available to backorder	Bracket	£20.65 £17.21
12	MO387773583/1 Available to backorder	Bracket Replaced code 387773583.0	£22.36 £18.63
13	MO337056017/0 Available to backorder	Lever	£9.07 £7.56
14	MO337315023/0 Available to backorder	Lever	£4.93 £4.11
15	MO9570-0001-00 In stock	Elbow Link	£19.57 £16.31
16	MO187000222/0 Available to backorder	Clutch Control Cable	£73.20 £61.00
17	MO337785067/0 Available to backorder	Support	£8.17 £6.81
18	MO322981467/0 Available to backorder	Plate	£1.55 £1.29
19	MO1134-3395-01 Available to backorder	Attachment	£29.28 £24.40
20	MO1134-2021-01 Available to backorder	Clamp	£7.02 £5.85
21	MO1134-4002-01 Available to backorder	Brake Rod Attachment	£11.95 £9.96
22	MO1131-1497-01 Available to backorder	Brake Spring	£10.21 £8.51
23	MO1134-5353-01 Available to backorder	Brake Rod	£51.62 £43.02
24	MO1134-2786-01 Available to backorder	Knob	£6.05 £5.04
25	MO1134-9024-01 Available to backorder	Bearing Sats 4 st.kit of 4	£19.86 £16.55
26	MO1134-5655-01 Available to backorder	Clutch Pedal	£57.71 £48.09
27	MO1134-5677-02 Available to backorder	Spacer	£11.12 £9.27
28	MO4231-0013-00 In stock	Spring	£8.53 £7.11
29	MO187000211/1 In stock	Control Cable	£35.20 £29.33
30	MO1134-6467-01 Available to backorder	Cable Holder	£7.46 £6.22
31	MO1134-3913-01 Available to backorder	Strut	£17.17 £14.31
33	MO1134-4015-01 Available to backorder	Pull Rod	£11.26 £9.38
34	MO1134-4014-01 Available to backorder	Knob	£4.78 £3.98
35	MO1134-2471-01 Available to backorder	Key	£8.94 £7.45
36	MO1134-4844-02 Available to backorder	Wheel Hub Assy	£56.16 £46.80
37	MO387680311/0 Available to backorder	Wheel Assy	£140.77 £117.31
38	MO9545-0116-00 Available to backorder	Tyre	£85.15 £70.96
39	MO187000454/0 Available to backorder	Rim	£83.74 £69.78
40	MO9545-0500-00 Available to backorder	Valve Assy.	£5.34 £4.45
41	MO1134-0341-01 Available to backorder	Washer	£6.64 £5.53
42	MO9653-0001-04 Available to backorder	Lock Ring	£2.24 £1.87
43	MO1134-4796-01 Available to backorder	Hub Cap	£5.06 £4.22
44	MO1134-9058-01 In stock	Drive Belt	£19.50 £16.25
45	MO112794117/0 Available to backorder	Screw	£1.63 £1.36
46	MO387605028/0 In stock	Tension Roller	£44.70 £37.25
47	MO1134-3456-01 Available to backorder	Bushing	£5.76 £4.80
48	MO1134-4183-01 Available to backorder	Spring	£8.22 £6.85
49	MO1134-4171-01 Available to backorder	Pivot Pin Replaced by 137510345.0	£7.96 £6.63
49	MO137510345/0 Available to backorder	Pivot Pin	£7.96 £6.63
50	MO1134-3377-02 Available to backorder	Control Rod	£16.46 £13.72
51	MO1134-6414-01 In stock	Spring	£5.34 £4.45
52	MO387205001/0 Available to backorder	Tension Arm	£45.04 £37.53
53	MO137038008/0 Available to backorder	Spacer	£8.66 £7.22
303	MO1111-9300-01 Available to backorder	Transmission Oil Sae 5W-50 60L	£945.30 £787.75
