PARK 340 GX - 2021 - 2F6130241/STX - Stiga Front Mower PTO Diagram

Name: PARK 340 GX - 2021 - 2F6130241/STX - Stiga Front Mower PTO Diagram
SKU: park_340_gx_2f6130241_stx_pto-group
Price: 1.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

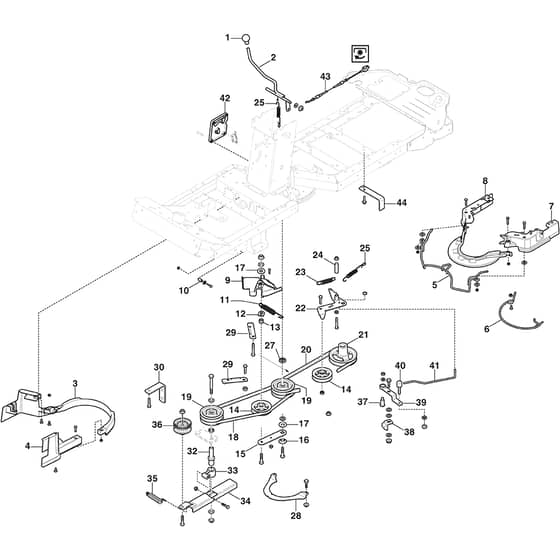

PARK 340 GX - 2021 - 2F6130241/STX - Stiga Front Mower PTO Diagram

Description

Stiga PARK 340 GX Parts Diagram

Product Name - PARK 340 PGX

Model Year - 2021

Model Type - P 901 C

Art.N - 2F6130241/STX

Engine Model - ST500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-2551-01 Available to backorder	Knob	£11.18 £9.32
2	MO1134-6301-01 Available to backorder	Engage Lever	£46.46 £38.72
3	MO337060002/0 Available to backorder	Belt Cover	£11.12 £9.27
4	MO337060036/1 Available to backorder	Belt Cover	£6.90 £5.75
5	MO337785113/1 Available to backorder	Support	£58.62 £48.85
6	MO137294105/0 Available to backorder	Belt Guide	£32.38 £26.98
7	MO337060001/1 Available to backorder	Belt Cover	£6.90 £5.75
8	MO337060000/2 Available to backorder	Belt Cover	£7.46 £6.22
9	MO337600001/2 Available to backorder	Protection	£9.28 £7.73
10	MO1134-1565-14 Available to backorder	Spacer	£1.82 £1.52
11	MO1134-5713-04 Available to backorder	Spring	£7.61 £6.34
12	MO337546545/0 Available to backorder	Spring	£5.21 £4.34
13	MO1134-1888-06 Available to backorder	Spacer	£8.94 £7.45
14	MO387605008/0 In stock	Tension Roller (Grey)	£35.20 £29.33
15	MO1134-1730-02 In stock	Tensioning Wheel Arm	Was £40.10 £33.42 Special Price £24.55 £20.46
16	MO1134-0222-00 Available to backorder	Washer	£16.88 £14.07
17	MO137038000/0 Available to backorder	Bush	£5.06 £4.22
18	MO1134-9239-01 In stock	Drive Belt Replacing Service code. 1134-9239-01	£62.56 £52.13
19	MO387605002/0 Available to backorder	Double Pulley Assy	£83.06 £69.22
20	MO1134-9047-01 In stock	V-Belt Service code for Belt. 9585-0088-00	£43.18 £35.98
21	MO1137-0208-01 Available to backorder	Engine Pulley	£43.64 £36.37
22	MO1134-2018-02 Available to backorder	Tension Arm	£39.42 £32.85
23	MO1135-3307-01 Available to backorder	Spring	£23.30 £19.42
24	MO1134-1565-10 Available to backorder	Spacer	£8.23 £6.86
25	MO4231-0013-00 In stock	Spring	£8.52 £7.10
27	MO1134-5548-01 Available to backorder	Spacer	£13.93 £11.61
28	MO1134-3654-01 Available to backorder	Guard	£35.05 £29.21
29	MO337546547/0 Available to backorder	Plate	£6.76 £5.63
30	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
31	MO1134-0052-00 Available to backorder	Spacer	£8.52 £7.10
32	MO1134-5663-01 Available to backorder	Shaft	£46.46 £38.72
33	MO1134-6314-01 Available to backorder	Tension Arm Attachment	£8.34 £6.95
34	MO1134-5660-01 Available to backorder	Tension Arm Assy	£45.04 £37.53
35	MO1134-5824-01 In stock	Spring	£5.48 £4.57
36	MO387605013/0 In stock	Tension Roller Assy	£42.23 £35.19
37	MO1134-4163-02 Available to backorder	Shoulder Bolt	£10.27 £8.56
38	MO1134-4164-03 Available to backorder	Brake Pad	£30.97 £25.81
39	MO387318251/0 Available to backorder	Brake Arm	£30.97 £25.81
40	MO1134-4170-01 Available to backorder	Nippel	£16.75 £13.96
41	MO137033100/0 Available to backorder	Brake Rod	£22.25 £18.54
42	MO1134-5368-01 Available to backorder	Dashboard	£38.14 £31.78
43	MO1134-3573-05 In stock	Control Cable	£30.97 £25.81
44	MO1134-3958-01 Available to backorder	Belt Guide	£17.04 £14.20
