PARK 320 W - 2017 - 2F6120620/S17 - Stiga Front Mower Steering Diagram

Name: PARK 320 W - 2017 - 2F6120620/S17 - Stiga Front Mower Steering Diagram
SKU: park_320_w_2f6120620_s17_steering-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 320 W - 2017 - 2F6120620/S17 - Stiga Front Mower Steering Diagram

Description

Stiga PARK 320 W Parts Diagram

Product Name - PARK 320 W

Model Year - 2017

Model Type - P 901 C

Art.N - 2F6120620/S17

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO337961200/0 Available to backorder	Steering Wheel	£344.89 £287.41
2	MO337580550/0 Available to backorder	Steering Plate	£8.74 £7.28
3	MO187593701/0 Available to backorder	Knob	£47.87 £39.89
4	MO112793102/0 In stock	Screw	£1.55 £1.29
5	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
6	MO112620299/0 Available to backorder	Elastic Pin	£1.82 £1.52
7	MO387520127/0 Available to backorder	Steering Rod	£97.14 £80.95
8	MO9595-0262-00 Available to backorder	Locating Pin	£1.69 £1.41
9	MO9699-0103-02 Available to backorder	Washer 0.5 mm	£2.12 £1.77
10	MO9699-0114-02 Available to backorder	Washer 1.0 mm	£1.97 £1.64
11	MO1134-5349-01 Available to backorder	Steering Console (Yellow) 1-00	£104.87 £87.39
12	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
13	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
14	MO1134-1901-01 Available to backorder	Bearing	£11.96 £9.97
15	MO387520125/0 Available to backorder	Steering Column.Lower	£38.02 £31.68
16	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77

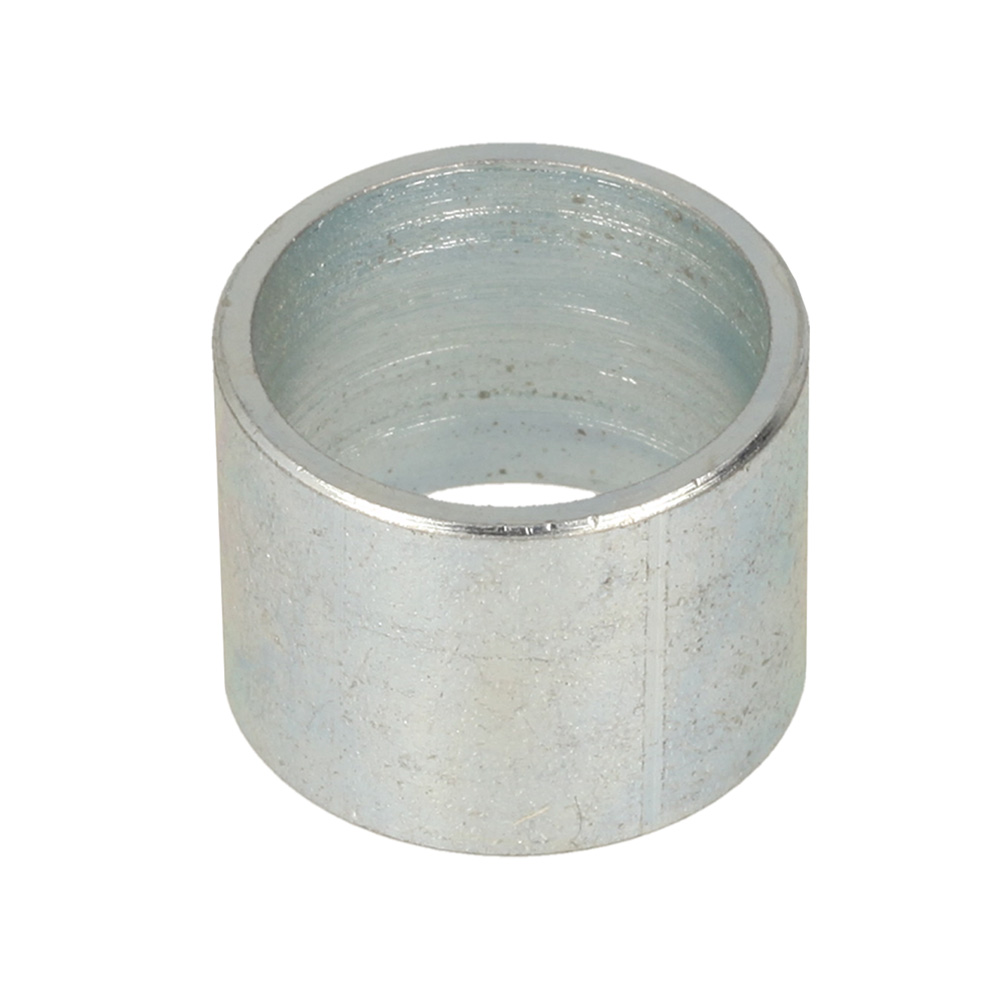

17	MO1134-2837-03 Available to backorder	Spacer	£11.06 £9.22
18	MO1137-0079-04 Available to backorder	Steering Rod Assy	£44.92 £37.43
19	MO9897-1060-12 Available to backorder	Screw	£3.52 £2.93

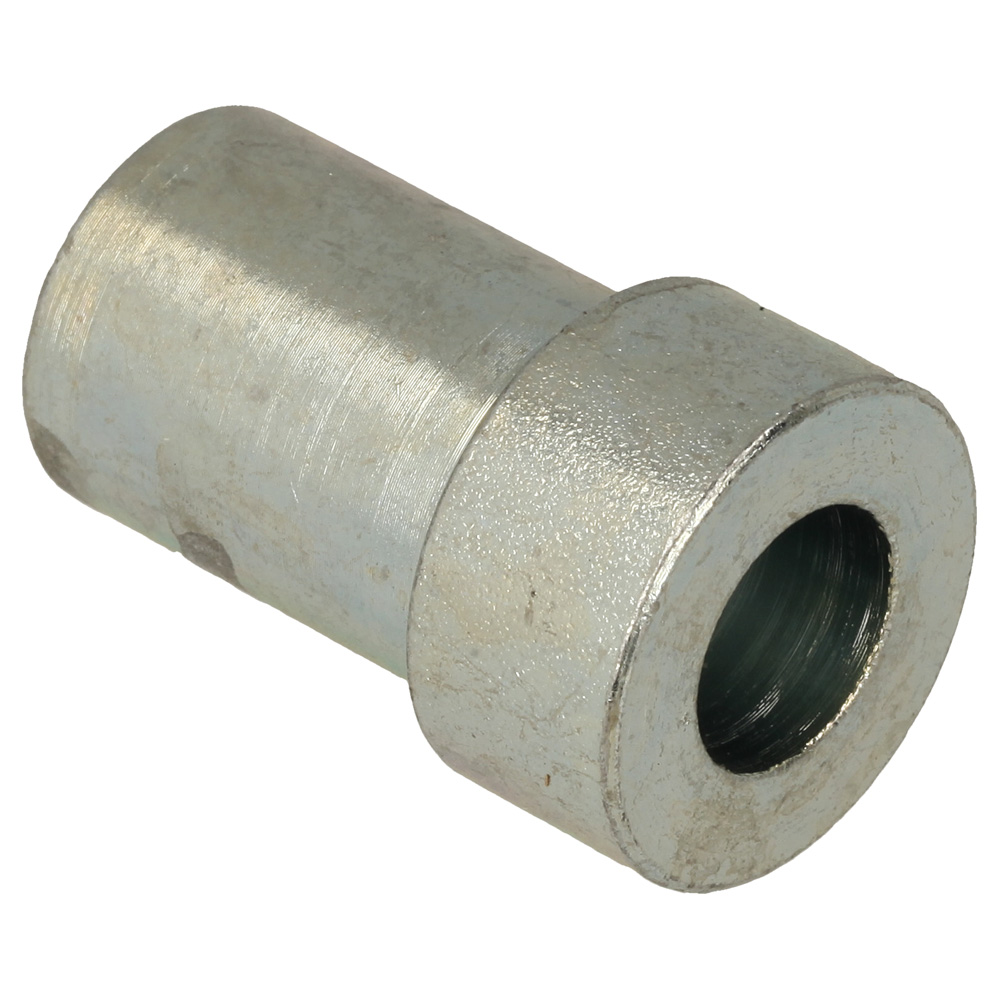

20	MO1134-5653-01 Available to backorder	Spacer	£10.56 £8.80
21	MO1134-2816-01 Available to backorder	Sprocket	£10.36 £8.63
23	MO9739-1031-22 In stock	Nut	£1.97 £1.64
24	MO112692395/2 In stock	Screw	£3.24 £2.70
25	MO112521360/0 In stock	Washer	£1.55 £1.29
26	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70

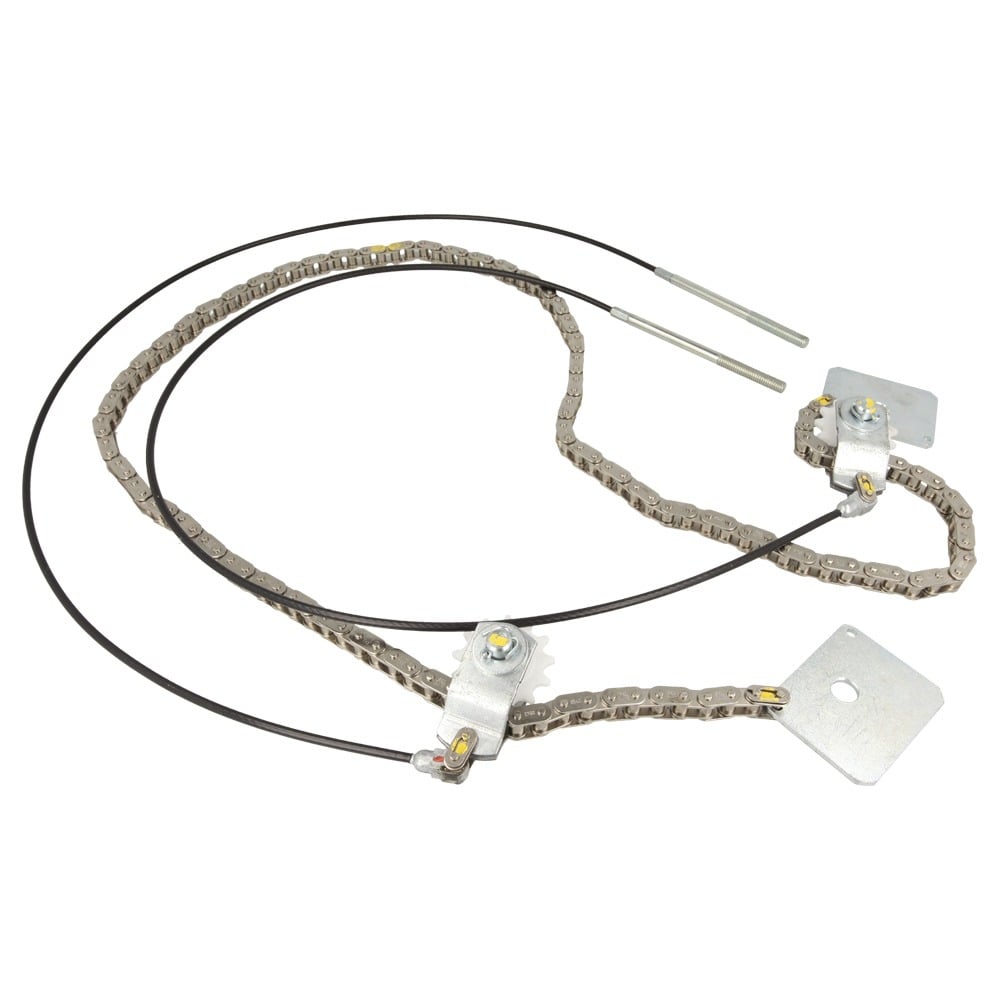

28	MO387106410/1 Available to backorder	Steering Chain Assy	£170.17 £141.81
29	MO1134-3817-01 In stock	Spring	Was £12.67 £10.56 Special Price £7.94 £6.62
30	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
31	MO112155000/0 In stock	Nut	£1.55 £1.29
32	MO1134-0072-02 Available to backorder	Steering Pulley	£7.39 £6.16
33	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
34	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
35	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
