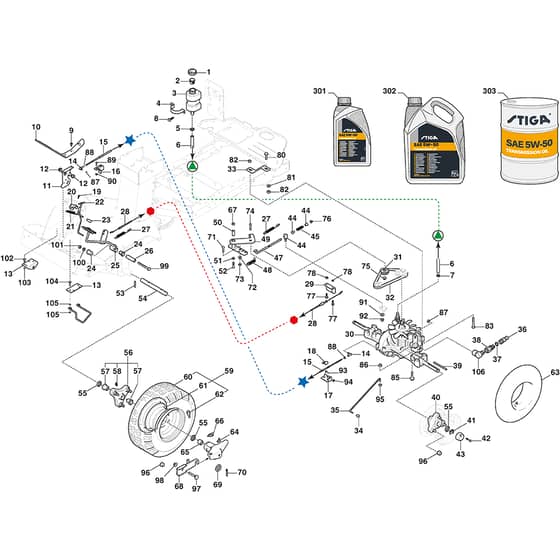

PARK 320 PW - 2021 - 2F6120645/ST1 - Stiga Front Mower Transmission Diagram

Name: PARK 320 PW - 2021 - 2F6120645/ST1 - Stiga Front Mower Transmission Diagram
SKU: park_320_pw_2f6120645_st1_transmission-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 320 PW - 2021 - 2F6120645/ST1 - Stiga Front Mower Transmission Diagram

Description

Stiga PARK 320 PW Parts Diagram

Product Name - PARK 320 PW

Model Year - 2021

Model Type - P 901 CW

Art.N - 2F6120645/ST1

Engine Model - ST550

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1134-3734-01 Available to backorder	Vent Plug	£12.60 £10.50

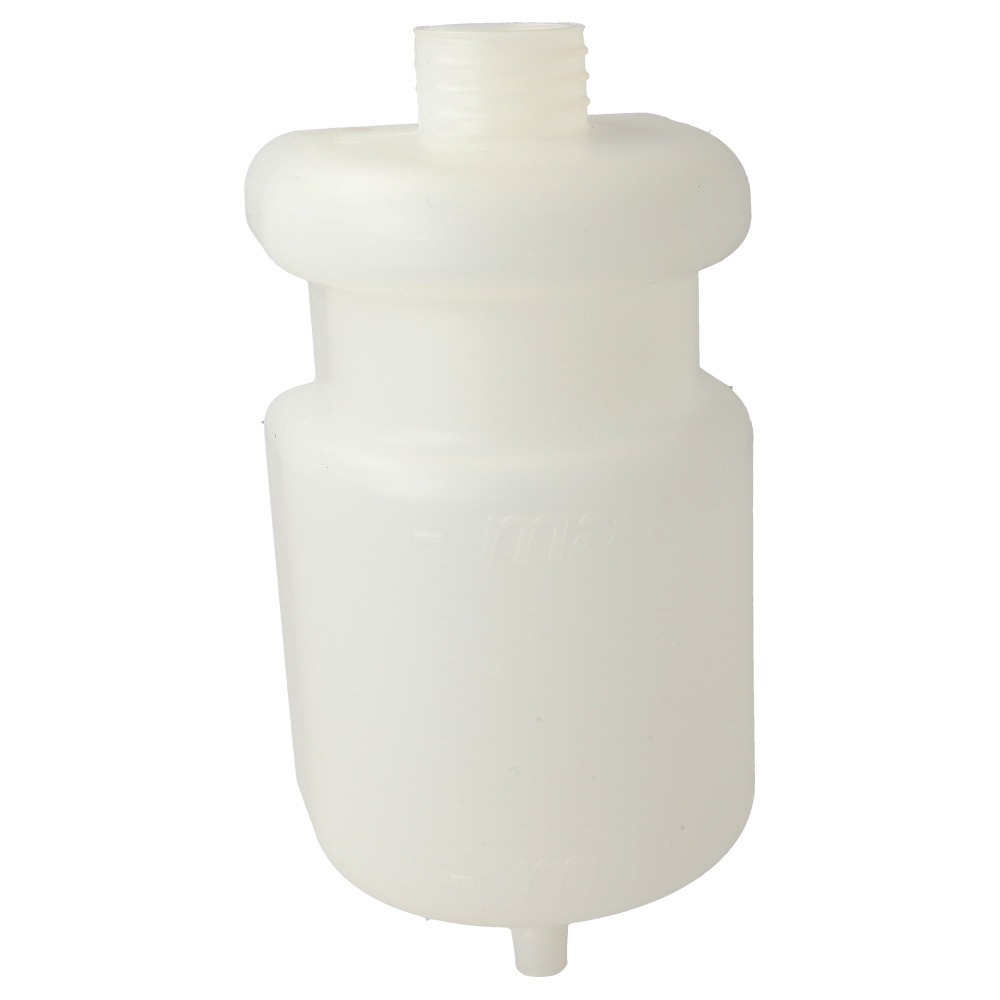

3	MO337735117/0 Available to backorder	Oil Tank	£41.99 £34.99
3	MO1134-2765-02 Available to backorder	Oil Tank Replaced by 337735117.0	£41.99 £34.99
4	MO1134-2778-01 Available to backorder	Band	£13.81 £11.51
5	MO9578-0036-01 Available to backorder	Hose Clamp	£3.67 £3.06
6	MO1134-2779-03 Available to backorder	Tube	£9.30 £7.75
7	MO9578-0023-04 Available to backorder	Hose Clamp	£6.05 £5.04
8	MO9852-8013-16 Available to backorder	Screw	£2.12 £1.77
9	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
10	MO387500011/0 Available to backorder	Drive Pedal	£35.20 £29.33
11	MO387773583/1 Available to backorder	Bracket	£22.36 £18.63
11	MO387773583/0 Available to backorder	Bracket Replaced by 387773583.1	£20.65 £17.21
12	MO1134-6313-01 Available to backorder	Bearing	£7.03 £5.86
13	MO337785069/0 Available to backorder	Support	£8.02 £6.68
14	MO9570-0001-00 In stock	Elbow Link	£19.57 £16.31
15	MO1134-2766-05 Available to backorder	Speed Control Cable	£75.31 £62.76
16	MO1134-6317-01 Available to backorder	Wire Bracket	£8.45 £7.04
17	MO1134-3395-01 Available to backorder	Attachment	£29.28 £24.40
18	MO1134-2021-01 Available to backorder	Clamp	£7.03 £5.86
19	MO112728697/0 In stock	Screw	£1.55 £1.29
20	MO1134-4002-01 Available to backorder	Brake Rod Attachment	£11.96 £9.97
21	MO1131-1497-01 Available to backorder	Brake Spring	£10.20 £8.50
22	MO1134-5353-01 Available to backorder	Brake Rod	£51.62 £43.02
23	MO1134-2786-01 Available to backorder	Knob	£6.05 £5.04
24	MO1134-9024-01 Available to backorder	Bearing Sats 4 st.kit of 4	£19.85 £16.54
25	MO1134-5655-01 Available to backorder	Clutch Pedal	£57.71 £48.09
26	MO1134-5677-02 Available to backorder	Spacer	£11.12 £9.27
27	MO4231-0013-00 In stock	Spring	£8.52 £7.10
28	MO187000211/1 In stock	Control Cable	£35.20 £29.33
29	MO1134-6467-01 Available to backorder	Cable Holder	£7.46 £6.22
30	MO1137-0126-01 Available to backorder	Transaxle K57V	£1,116.37 £930.31
31	MO387605028/0 In stock	Tension Roller	£44.70 £37.25
32	MO1134-9058-01 In stock	V-Belt Service code for Belt. 9585-0091-01	£21.67 £18.06
33	MO1134-3913-01 Available to backorder	Strut	£17.17 £14.31
34	MO1134-4014-01 Available to backorder	Knob	£4.78 £3.98
35	MO1134-4015-01 Available to backorder	Pull Rod	£11.27 £9.39
36	MO1134-6042-01 Available to backorder	Quick Coupling-Male	£30.97 £25.81
37	MO1134-4948-01 Available to backorder	Washer	£2.68 £2.23
38	MO1134-7245-01 Available to backorder	Hydraulic Coupling-Straight	£13.51 £11.26
39	MO1134-2471-01 Available to backorder	Key	£8.94 £7.45
40	MO1134-4844-02 Available to backorder	Wheel Hub Assy	£56.16 £46.80
41	MO9653-0001-04 Available to backorder	Lock Ring	£2.26 £1.88
42	MO9947-0540-19 Available to backorder	Screw	£1.97 £1.64
43	MO1134-4796-01 Available to backorder	Hub Cap	£5.06 £4.22
44	MO1134-3456-01 Available to backorder	Bushing	£5.76 £4.80
45	MO1134-4183-01 Available to backorder	Spring	£8.23 £6.86
46	MO1134-4171-01 Available to backorder	Pivot Pin Replaced by 137510345.0	£16.39 £13.66

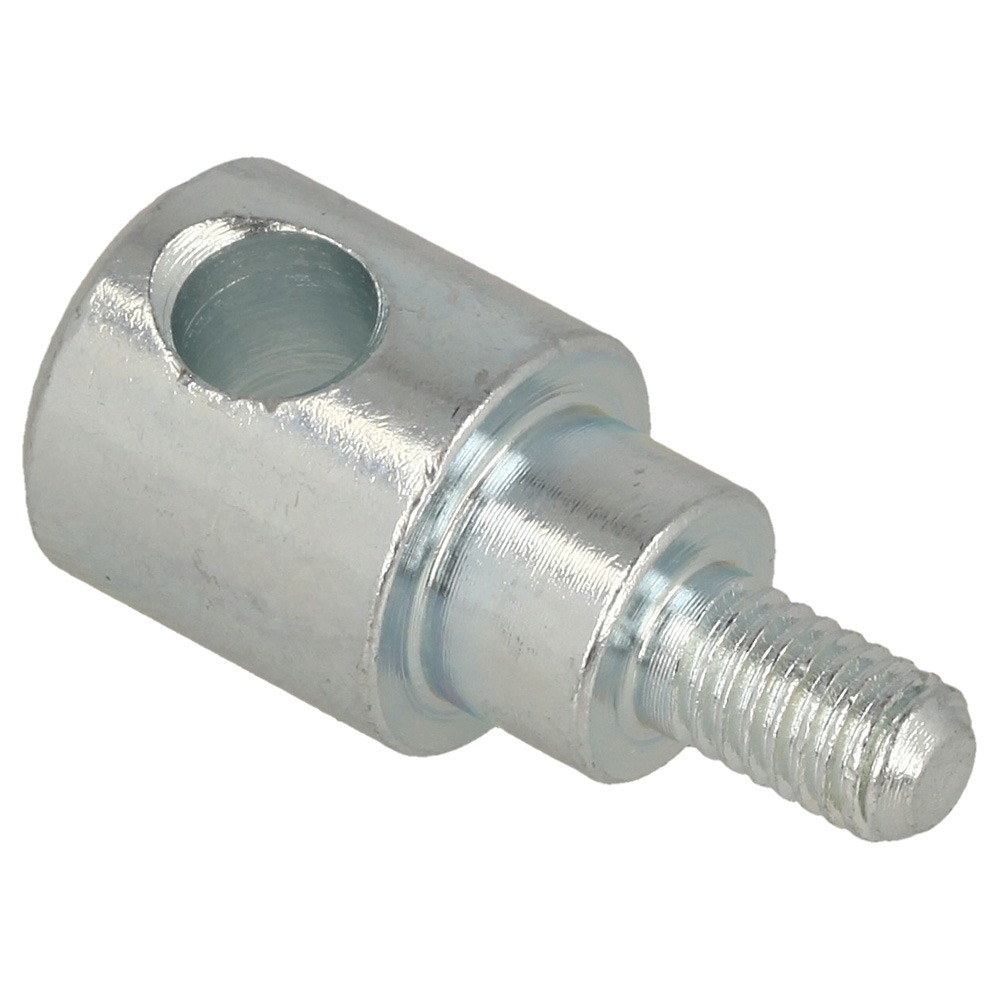

46	MO137510345/0 Available to backorder	Pivot Pin	£7.96 £6.63
47	MO1134-3377-02 Available to backorder	Control Rod	£16.46 £13.72
48	MO1134-6414-01 In stock	Spring	£5.35 £4.46
49	MO387205001/0 Available to backorder	Tension Arm	£45.04 £37.53
50	MO137038008/0 Available to backorder	Spacer	£8.65 £7.21
51	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
52	MO9960-0860-12 Available to backorder	Screw	£1.97 £1.64
53	MO112645710/0 Available to backorder	Locating Pin	£2.12 £1.77
54	MO1134-0075-00 Available to backorder	Front Axle	£18.72 £15.60
55	MO1134-0341-01 Available to backorder	Washer	£6.62 £5.52
56	MO1134-4844-05 In stock	Wheel Hub Assy	£59.12 £49.27
57	MO137038009/0 In stock	Bushing	£5.76 £4.80
58	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
59	MO387680311/0 Available to backorder	Wheel Assy	£140.77 £117.31
60	MO9545-0116-00 In stock	Tyre	£85.16 £70.97
61	MO187000454/0 Available to backorder	Rim	£83.75 £69.79
62	MO9545-0500-00 Available to backorder	Valve Assy.	£5.35 £4.46
63	MO9545-0203-00 Available to backorder	Inner Tube	£30.97 £25.81
64	MO9501-0505-01 Available to backorder	Grease Dispenser	£3.24 £2.70
65	MO9548-0026-01 Available to backorder	Bearing	£30.97 £25.81
66	MO1137-0077-01 In stock	Locking Pin	£3.52 £2.93
68	MO1134-7465-01 Available to backorder	Attachment Kit Support RH + LH	£63.35 £52.79
69	MO9699-0042-02 Available to backorder	Washer	£6.62 £5.52
70	MO9599-0080-02 Available to backorder	Cotter Pin	£2.12 £1.77
71	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
74	MO112794117/0 Available to backorder	Screw	£1.55 £1.29
80	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
81	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
83	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
85	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
86	MO112155000/0 In stock	Nut	£1.55 £1.29
87	MO112154330/0 In stock	Nut	£1.55 £1.29
88	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
89	MO9959-0620-16 Available to backorder	Screw	£1.97 £1.64
90	MO112292102/0 In stock	Nut	£1.69 £1.41
91	MO112523040/0 In stock	Washer	£1.49 £1.24
92	MO112154510/0 In stock	Nut	£1.55 £1.29
93	MO9959-0820-16 In stock	Screw	£1.55 £1.29
94	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
95	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
96	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
97	MO9898-1035-16 Available to backorder	Screw	£2.81 £2.34
98	MO9739-1031-22 In stock	Nut	£1.97 £1.64
99	MO9997-1070-12 In stock	Screw	£3.52 £2.93
100	MO9699-0030-02 In stock	Washer	£1.97 £1.64
303	MO1111-9300-01 Available to backorder	Transmission Oil Sae 5W-50 60L	£945.29 £787.74
