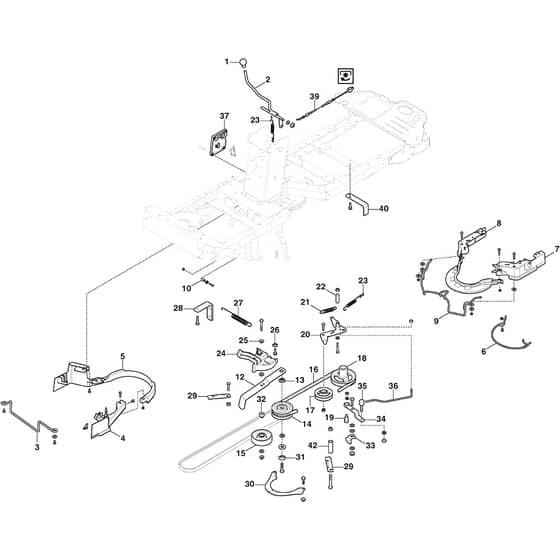

PARK 320 PG - 2020-2021 - 2F6120541/STX - Stiga Front Mower PTO Diagram

Name: PARK 320 PG - 2020-2021 - 2F6120541/STX - Stiga Front Mower PTO Diagram
SKU: park_320_pg_2f6120541_stx_pto-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 320 PG - 2020-2021 - 2F6120541/STX - Stiga Front Mower PTO Diagram

Description

Stiga PARK 320 PG Parts Diagram

Product Name - PARK 320 PG

Model Year - 2020-2021

Model Type - P 901 C

Art.N - 2F6120541/STX

Engine Model - ST500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-2551-01 Available to backorder	Knob	£11.18 £9.32
2	MO1134-6301-01 Available to backorder	Engage Lever	£46.46 £38.72
3	MO137294100/0 Available to backorder	Belt Guide	£26.96 £22.47
4	MO337060003/0 Available to backorder	Belt Cover	£6.76 £5.63
5	MO337060002/0 Available to backorder	Belt Cover	£11.12 £9.27
6	MO137294105/0 Available to backorder	Belt Guide	£32.38 £26.98
7	MO337060001/1 Available to backorder	Belt Cover	£6.90 £5.75
8	MO337060000/2 Available to backorder	Belt Cover	£7.46 £6.22
9	MO337785113/1 Available to backorder	Support	£58.62 £48.85
12	MO1137-1124-01 Available to backorder	Tension Wheel Arm	£81.66 £68.05
13	MO1134-5548-01 Available to backorder	Spacer	£13.93 £11.61
14	MO387605002/0 Available to backorder	Double Pulley Assy	£83.06 £69.22
15	MO387605007/0 Available to backorder	Tension Roller Assy	£59.12 £49.27
16	MO1134-9173-01 In stock	V-Belt Service code for Belt. 9585-0213-01	£28.28 £23.57
17	MO387605008/0 In stock	Tension Roller (Grey)	£35.20 £29.33
18	MO1137-0208-01 Available to backorder	Engine Pulley	£43.64 £36.37
19	MO1134-4163-02 Available to backorder	Shoulder Bolt	£10.27 £8.56
20	MO1134-2018-02 Available to backorder	Tension Arm	£39.42 £32.85
21	MO1135-3307-01 Available to backorder	Spring	£23.30 £19.42
22	MO1134-1565-10 Available to backorder	Spacer	£8.23 £6.86
23	MO4231-0013-00 In stock	Spring	£8.52 £7.10
24	MO337600000/1 Available to backorder	Protection	£7.61 £6.34
25	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
26	MO325160039/0 Available to backorder	Spacer	£1.55 £1.29
27	MO1134-5111-01 Available to backorder	Spring	£18.10 £15.08
28	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
29	MO337546547/0 Available to backorder	Plate	£6.76 £5.63
30	MO1134-3654-01 Available to backorder	Guard	£35.05 £29.21
31	MO1134-0222-00 Available to backorder	Washer	£16.88 £14.07
33	MO1134-4164-03 Available to backorder	Brake Pad	£30.97 £25.81
34	MO387318251/0 Available to backorder	Brake Arm	£30.97 £25.81
35	MO1134-4170-01 Available to backorder	Nippel	£16.75 £13.96
36	MO137033100/0 Available to backorder	Brake Rod	£22.25 £18.54
37	MO1134-5368-01 Available to backorder	Dashboard	£38.14 £31.78
39	MO1134-3573-05 In stock	Control Cable	£30.97 £25.81
40	MO1134-3958-01 Available to backorder	Belt Guide	£17.04 £14.20
42	MO1134-0041-03 Available to backorder	Bush	£11.27 £9.39
