PARK 320 PG - 2020-2021 - 2F6120541/STX - Stiga Front Mower Crankshaft Diagram

Name: PARK 320 PG - 2020-2021 - 2F6120541/STX - Stiga Front Mower Crankshaft Diagram
SKU: park_320_pg_2f6120541_stx_crankshaft-group
Price: 1.16 GBP
Availability: InStock

Part No. park_320_pg_2f6120541_stx_crankshaft-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

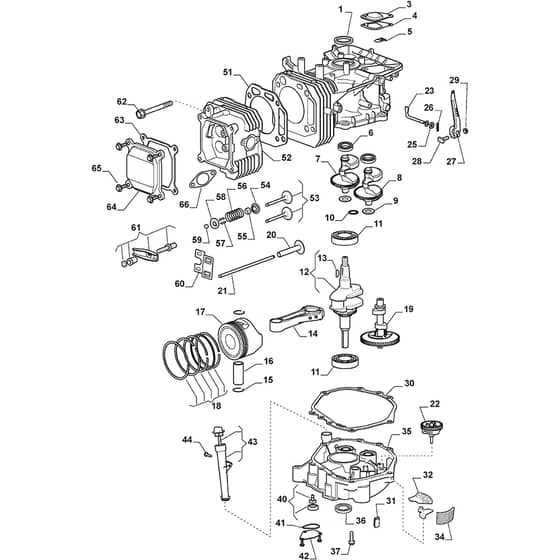

PARK 320 PG - 2020-2021 - 2F6120541/STX - Stiga Front Mower Crankshaft Diagram

Description

Stiga PARK 320 PG Parts Diagram

Product Name - PARK 320 PG

Model Year - 2020-2021

Model Type - P 901 C

Art.N - 2F6120541/STX

Engine Model - ST500

	Part No.	Details
1	MO118551418/0 Available to backorder	Oil Seal	£11.95 £9.96
4	MO118551229/0 Available to backorder	Gasket	£3.66 £3.05
6	MO118551284/0 Available to backorder	Bearing	£13.38 £11.15
7	MO118551242/0 Available to backorder	Counterweight	£52.08 £43.40
8	MO118551243/0 Available to backorder	Counterweight	£52.08 £43.40
9	MO118551282/0 Available to backorder	Washer	£1.97 £1.64
10	MO118551286/0 Available to backorder	O Ring	£1.70 £1.42
11	MO118550227/0 Available to backorder	Ball Bearing	£21.41 £17.84
12	MO118550232/0 Available to backorder	Crankshaft	£197.09 £164.24
13	MO118550288/0 Available to backorder	Woodruff Key	£6.20 £5.17
14	MO118550231/1 Available to backorder	Connecting Rod Assy	£56.32 £46.93
15	MO118551283/0 Available to backorder	Washer. Piston Pin	£1.39 £1.16
16	MO118551241/0 Available to backorder	Piston Pin	£7.31 £6.09
17	MO118551240/0 Available to backorder	Piston	£40.82 £34.02
18	MO118550510/0 Available to backorder	Piston. Ring Set	£10.30 £8.58
19	MO118551511/0 Available to backorder	Camshaft Assy	£111.90 £93.25
66	MO118551272/0 Available to backorder	Muffler Gasket	£2.53 £2.11
