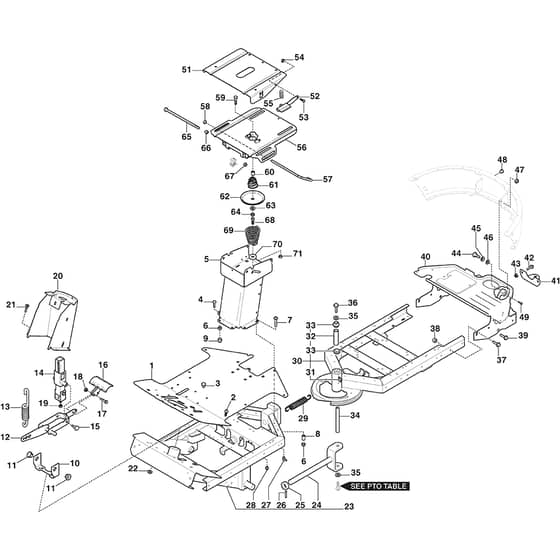

PARK 320 P - 2021 - 2F6120545/ST1P - Stiga Front Mower Frame Diagram

Name: PARK 320 P - 2021 - 2F6120545/ST1P - Stiga Front Mower Frame Diagram
SKU: park_320_p_2f6120545_st1p_frame-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 320 P - 2021 - 2F6120545/ST1P - Stiga Front Mower Frame Diagram

Description

Stiga PARK 320 P Parts Diagram

Product Name - PARK 320 P

Model Year - 2021

Model Type - P 901 C

Art.N - 2F6120545/ST1P

Engine Model - ST450

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387507505/0 Available to backorder	Floor Plate	£183.01 £152.51
1	MO387507505/1 Available to backorder	Floor Plate	£183.01 £152.51
3	MO9403-0048-70 Available to backorder	Cover Plug	£9.28 £7.73
5	MO387785275/0 Available to backorder	Seat Bracket Assy	£116.84 £97.37
7	MO9897-0880-12 Available to backorder	Screw	£1.97 £1.64
8	MO1134-1565-08 Available to backorder	Spacer	£8.65 £7.21
9	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
10	MO1134-4117-01 Available to backorder	Bracket	£30.97 £25.81
11	MO1134-2684-01 Available to backorder	Bearing	£6.76 £5.63
12	MO387256055/0 Available to backorder	Lift Fork	£93.61 £78.01
13	MO4231-0013-00 In stock	Spring	£8.52 £7.10
14	MO1134-4945-01 Available to backorder	Lift Catch Assy	£118.94 £99.12
16	MO387500013/0 Available to backorder	Lift Pedal	£25.90 £21.58
17	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
18	MO112292102/0 In stock	Nut	£1.69 £1.41
20	MO387785243/0 Available to backorder	Steering Column Cover	£147.80 £123.17
21	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
23	MO387800011/0 Available to backorder	Frame Front	£837.60 £698.00
24	MO1137-1119-02 Available to backorder	Fork	£168.92 £140.77
25	MO1134-0031-00 Available to backorder	Pivot Shaft Stop	£24.36 £20.30
26	MO9595-0262-00 Available to backorder	Locating Pin	£1.69 £1.41
27	MO9501-0505-01 Available to backorder	Grease Dispenser	£3.24 £2.70
29	MO1134-2171-01 Available to backorder	Spring	£19.30 £16.08
31	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
32	MO1134-5705-01 Available to backorder	Spacer	£22.81 £19.01
33	MO9547-0001-00 Available to backorder	Bearing	£29.56 £24.63
34	MO1134-5988-01 Available to backorder	Centre Shaft	£22.38 £18.65
35	MO112521360/0 In stock	Washer	£1.55 £1.29
36	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
39	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
40	MO1134-5944-01 Available to backorder	Tank Shelf Assy	£274.51 £228.76
41	MO1134-5512-01 Available to backorder	Towing Plate	£20.40 £17.00
42	MO9959-0820-16 In stock	Screw	£1.55 £1.29
43	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
44	MO1134-0240-00 In stock	Screw	£8.80 £7.33
45	MO9665-0002-00 Available to backorder	Washer	£2.26 £1.88
46	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
48	MO1134-4100-01 Available to backorder	Plug	£4.37 £3.64
49	MO9943-0516-16 In stock	Screw	£1.22 £1.02
51	MO1134-6090-01 Available to backorder	Slide Plate-Upper	£98.54 £82.12
52	MO1134-6073-01 Available to backorder	Handle Assy	£39.42 £32.85
53	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
54	MO112154510/0 In stock	Nut	£1.55 £1.29
55	MO1134-3262-01 Available to backorder	Spring	£8.45 £7.04
56	MO1134-6068-01 Available to backorder	Slide Plate-Lower	£116.84 £97.37
57	MO1134-5179-01 Available to backorder	Catch	£13.31 £11.09
58	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
59	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
60	MO1134-1565-06 Available to backorder	Spacer	£10.98 £9.15
61	MO1134-5302-01 Available to backorder	Spring	£8.52 £7.10
62	MO1134-5299-01 Available to backorder	Push Plate	£17.60 £14.67
63	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
66	MO1134-5626-03 Available to backorder	Spacer	£2.53 £2.11
67	MO112155000/0 In stock	Nut	£1.55 £1.29
68	MO9924-1235-19 Available to backorder	Screw	£3.79 £3.16
69	MO137430116/0 Available to backorder	Spring	£25.34 £21.12
70	MO137160001/0 Available to backorder	Spacer	£12.38 £10.32
71	MO112156603/0 Available to backorder	Self-Locking Nut M12	£1.55 £1.29
