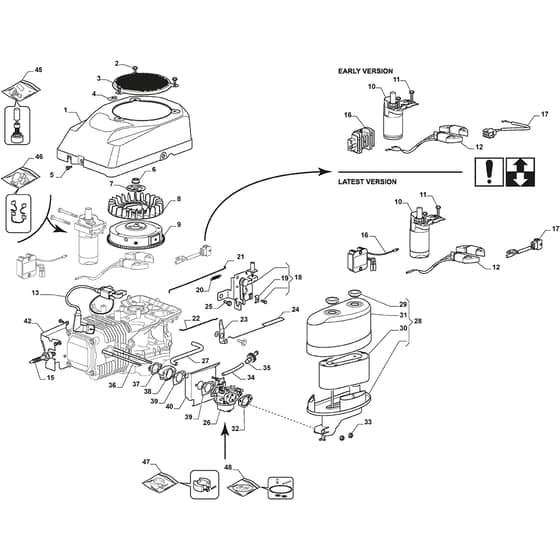

PARK 320 P - 2021 - 2F6120545/ST1P - Stiga Front Mower Carburettor Diagram

Name: PARK 320 P - 2021 - 2F6120545/ST1P - Stiga Front Mower Carburettor Diagram
SKU: park_320_p_2f6120545_st1p_carburettor-group
Price: 1.29 GBP
Availability: InStock

Part No. park_320_p_2f6120545_st1p_carburettor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 320 P - 2021 - 2F6120545/ST1P - Stiga Front Mower Carburettor Diagram

Description

Stiga PARK 320 P Parts Diagram

Product Name - PARK 320 P

Model Year - 2021

Model Type - P 901 C

Art.N - 2F6120545/ST1P

Engine Model - ST450

	Part No.	Details
1	MO118551261/0 Available to backorder	Cover Assy	£78.85 £65.71
2	MO112790500/0 Available to backorder	Screw	£1.97 £1.64
3	MO118550203/0 Available to backorder	Fan Cover	£43.63 £36.36
4	MO118551280/0 Available to backorder	Plate	£1.70 £1.42
5	MO112791213/1 In stock	Screw	£1.55 £1.29
6	MO118550237/0 Available to backorder	Nut	£3.38 £2.82
7	MO118550236/0 Available to backorder	Starter Cup	£6.06 £5.05
8	MO118550235/1 Available to backorder	Flywheel Fan	£24.05 £20.04
9	MO118550234/2 Available to backorder	Flywheel Ass.Y	£215.46 £179.55
10	MO118550214/0 In stock	Start Motor Assy early version	£154.86 £129.05
10	MO118552635/0 Available to backorder	Start Motor Assy latest version	£155.47 £129.56
11	MO112691100/0 Available to backorder	Screw latest version	£1.63 £1.36
12	MO118551441/0 Available to backorder	Coil Assy. Charge latest version	£49.70 £41.42
12	MO118550210/1 Available to backorder	Coil Assy. Charge early version	£56.56 £47.13
13	MO118550209/1 In stock	Elettronic Coil early version	£41.74 £34.78
13	MO118551438/0 In stock	Elettronic Coil latest version	£41.74 £34.78
15	3381 In stock	Spark Plug	£4.20 £3.50
48	MO118550442/0 Available to backorder	Carburettor Gasket Set	£15.78 £13.15
