PARK 320 MW - 2015-2018 - 2F6120620/S15 - Stiga Front Mower Transmission Diagram

Name: PARK 320 MW - 2015-2018 - 2F6120620/S15 - Stiga Front Mower Transmission Diagram
SKU: park_320_mw_2f6120620_s15_transmission-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

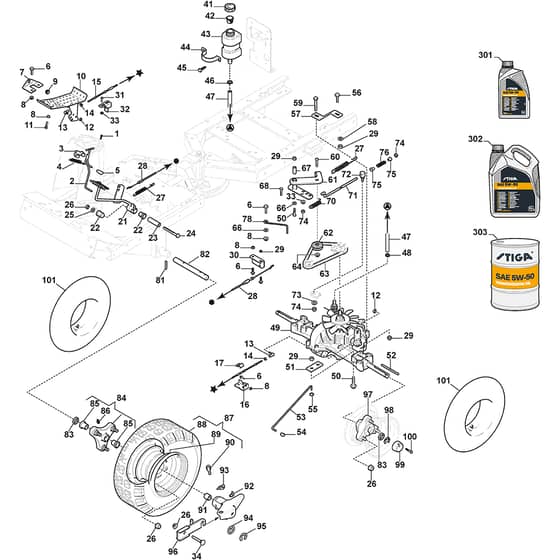

PARK 320 MW - 2015-2018 - 2F6120620/S15 - Stiga Front Mower Transmission Diagram

Description

Stiga PARK 320 MW Parts Diagram

Product Name - PARK 320 MW

Model Year - 2015-2018

Model Type - P 901 C

Art.N - 2F6120620/S15

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728697/0 In stock	Screw	£1.55 £1.29
2	MO1134-5353-01 Available to backorder	Brake Rod	£51.62 £43.02
3	MO1134-4002-01 Available to backorder	Brake Rod Attachment	£11.96 £9.97
4	MO1131-1497-01 Available to backorder	Brake Spring	£10.20 £8.50
5	MO1134-2786-01 Available to backorder	Knob	£6.05 £5.04
6	MO9959-0820-16 In stock	Screw	£1.55 £1.29
7	MO1134-2700-01 Available to backorder	Bracket	£17.04 £14.20
8	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
9	MO1134-6313-01 Available to backorder	Bearing	£7.03 £5.86
10	MO1134-6353-01 Available to backorder	Drive Pedal	£46.46 £38.72
11	MO9997-0835-16 Available to backorder	Screw	£1.90 £1.58
12	MO112154330/0 In stock	Nut	£1.55 £1.29
13	MO9570-0001-00 In stock	Elbow Link	£19.57 £16.31
14	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
15	MO1134-2766-05 Available to backorder	Speed Control Cable	£75.31 £62.76
16	MO1134-3395-01 Available to backorder	Attachment	£29.28 £24.40
17	MO1134-2021-01 Available to backorder	Clamp	£7.03 £5.86
21	MO1134-5655-01 Available to backorder	Clutch Pedal	£57.71 £48.09
22	MO1134-9024-01 Available to backorder	Bearing Sats 4 st.kit of 4	£19.85 £16.54
23	MO1134-5677-02 Available to backorder	Spacer	£11.12 £9.27
24	MO9997-1070-12 In stock	Screw	£3.52 £2.93
25	MO9699-0030-02 In stock	Washer	£1.97 £1.64
26	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
27	MO4231-0013-00 In stock	Spring	£8.52 £7.10
28	MO187000211/1 In stock	Control Cable	£35.20 £29.33
29	MO112155000/0 In stock	Nut	£1.55 £1.29
30	MO1134-6467-01 Available to backorder	Cable Holder	£7.46 £6.22
31	MO9959-0620-16 Available to backorder	Screw	£1.97 £1.64
32	MO1134-6317-01 Available to backorder	Wire Bracket	£8.45 £7.04
33	MO112292102/0 In stock	Nut	£1.69 £1.41
41	MO1134-2777-02 Available to backorder	Filler Cap	£16.40 £13.67
42	MO1134-3734-01 Available to backorder	Vent Plug	£12.60 £10.50
43	MO1134-2765-02 Available to backorder	Oil Tank	£41.99 £34.99
44	MO1134-2778-01 Available to backorder	Band	£13.81 £11.51
45	MO9852-8013-16 Available to backorder	Screw	£2.12 £1.77
46	MO9578-0036-01 Available to backorder	Hose Clamp	£3.67 £3.06
47	MO1134-2779-03 Available to backorder	Tube L . 290 mm	£9.30 £7.75
48	MO9578-0023-04 Available to backorder	Hose Clamp 15x8	£6.05 £5.04
49	MO1137-0123-01 Available to backorder	Transaxle K46Ci Kanzaki K46CI	£1,554.77 £1,295.64
50	MO9960-0860-12 Available to backorder	Screw L . 60 mm	£1.97 £1.64
51	MO1134-3376-01 Available to backorder	Spacer Plate	£16.12 £13.43
52	MO1134-2471-01 Available to backorder	Key	£8.94 £7.45
52	MO9898-1035-16 Available to backorder	Screw	£2.81 £2.34
53	MO1134-4015-01 Available to backorder	Pull Rod	£11.27 £9.39
54	MO1134-4014-01 Available to backorder	Knob	£4.78 £3.98
55	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
56	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
303	MO1111-9300-01 Available to backorder	Transmission Oil Sae 5W-50 60L	£945.29 £787.74
