PARK 320 MW - 2015-2018 - 2F6120620/S15 - Stiga Front Mower Steering Diagram

Name: PARK 320 MW - 2015-2018 - 2F6120620/S15 - Stiga Front Mower Steering Diagram
SKU: park_320_mw_2f6120620_s15_steering-group
Price: 1.29 GBP
Availability: InStock

Part No. park_320_mw_2f6120620_s15_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

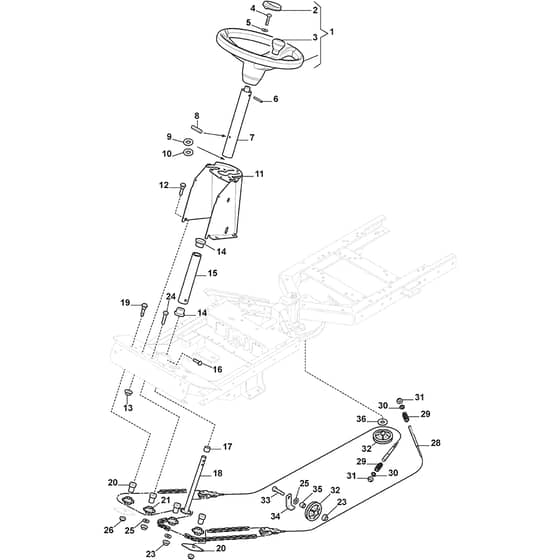

PARK 320 MW - 2015-2018 - 2F6120620/S15 - Stiga Front Mower Steering Diagram

Description

Stiga PARK 320 MW Parts Diagram

Product Name - PARK 320 MW

Model Year - 2015-2018

Model Type - P 901 C

Art.N - 2F6120620/S15

Engine Model - B&S Vanguard 18

	Part No.	Details
2	MO337580550/0 Available to backorder	Steering Plate	£8.72 £7.27
3	MO187593701/0 Available to backorder	Knob	£47.87 £39.89
4	MO112793102/0 In stock	Screw	£1.55 £1.29
5	MO112583500/0 In stock	Grower	£1.55 £1.29
6	MO112620299/0 Available to backorder	Elastic Pin	£1.84 £1.53
7	MO387520127/0 Available to backorder	Steering Rod	£97.14 £80.95
8	MO9595-0262-00 In stock	Locating Pin	£1.79 £1.49
9	MO9699-0103-02 Available to backorder	Washer 0.5 mm	£2.12 £1.77
10	MO9699-0114-02 Available to backorder	Washer 1.0 mm	£1.97 £1.64
11	MO1134-5349-01 Available to backorder	Steering Console (Yellow) 1-00	£104.86 £87.38
12	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
13	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
14	MO1134-1901-01 Available to backorder	Bearing	£11.95 £9.96
15	MO387520125/0 Available to backorder	Steering Column.Lower	£38.00 £31.67
16	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
17	MO1134-2837-03 Available to backorder	Spacer	£11.06 £9.22
18	MO1137-0079-04 Available to backorder	Steering Rod Assy	£44.93 £37.44
19	MO9897-1060-12 Available to backorder	Screw	£3.52 £2.93
20	MO1134-5653-01 Available to backorder	Spacer	£10.56 £8.80
21	MO1134-2816-01 In stock	Sprocket	£10.37 £8.64
23	MO9739-1031-22 In stock	Nut	£1.97 £1.64
24	MO112692395/2 In stock	Screw	£3.25 £2.71
25	MO112521360/0 In stock	Washer	£1.55 £1.29
26	MO9731-1031-22 Available to backorder	Nut	£2.22 £1.85
28	MO387106410/1 Available to backorder	Steering Chain Assy	£170.18 £141.82
29	MO1134-3817-01 In stock	Spring	Was £12.67 £10.56 Special Price £7.94 £6.62
30	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
31	MO112155000/0 In stock	Nut	£1.55 £1.29
32	MO1134-0072-02 Available to backorder	Steering Pulley	£7.39 £6.16
33	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
34	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
35	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
