PARK 320 MW - 2015-2018 - 2F6120620/S15 - Stiga Front Mower Body Diagram

Name: PARK 320 MW - 2015-2018 - 2F6120620/S15 - Stiga Front Mower Body Diagram
SKU: park_320_mw_2f6120620_s15_body-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

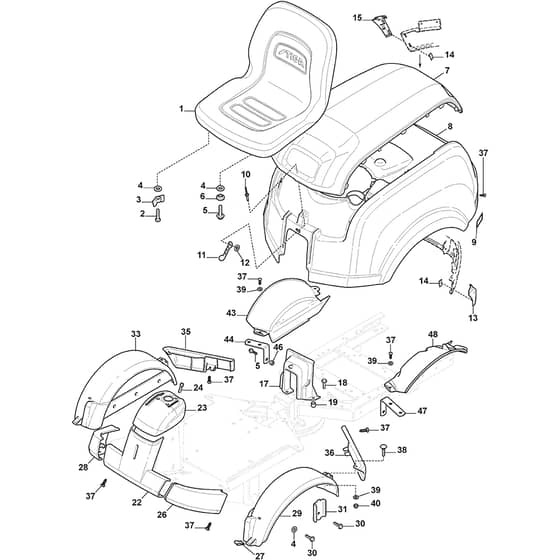

PARK 320 MW - 2015-2018 - 2F6120620/S15 - Stiga Front Mower Body Diagram

Description

Stiga PARK 320 MW Parts Diagram

Product Name - PARK 320 MW

Model Year - 2015-2018

Model Type - P 901 C

Art.N - 2F6120620/S15

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO137722604/0 Available to backorder	Seat	£337.86 £281.55
2	MO112793102/0 In stock	Screw	£1.55 £1.29
3	MO1134-4481-01 Available to backorder	Wing Nut	£1.55 £1.29
4	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
5	MO9959-0820-16 In stock	Screw	£1.55 £1.29
6	MO1134-4185-01 Available to backorder	Flange Washer	£6.47 £5.39
7	MO337110334/0 Available to backorder	Engine Cover	£76.73 £63.94
8	MO337076805/0 Available to backorder	Engine Hood	£309.70 £258.08
9	MO337580302/0 Available to backorder	Plate	£7.19 £5.99
10	MO9632-0513-00 Available to backorder	Pop Rivet	£1.39 £1.16
11	MO1134-9028-01 Available to backorder	Rubber Strap (3 Pcs) Sats 3 st.kit of 3	£25.86 £21.55
12	MO9699-0120-02 Available to backorder	Washer	£2.40 £2.00
13	MO337110336/0 Available to backorder	Bumper End-Lh	£14.64 £12.20
14	MO1134-6310-01 Available to backorder	Clip	£1.90 £1.58
15	MO337110335/0 Available to backorder	Bumper End-Rh	£13.93 £11.61
17	MO1134-6241-01 Available to backorder	Hood Support	£42.23 £35.19
18	MO112735594/0 Available to backorder	Screw	£1.55 £1.29
19	MO1137-0020-02 Available to backorder	Spacer	£5.21 £4.34
22	MO1134-5305-01 Available to backorder	Lower Hood Yellow	£84.47 £70.39
23	MO337110358/0 Available to backorder	Cover	£47.22 £39.35
24	MO9946-0525-16 Available to backorder	Screw	£2.12 £1.77
26	MO337502509/0 Available to backorder	Bumper Front-Lh (Grey)	£52.08 £43.40
27	MO1134-4176-01 Available to backorder	Clips	£4.78 £3.98
28	MO337502508/0 Available to backorder	Bumper Front-Rh (Grey)	£53.50 £44.58
29	MO337491255/0 Available to backorder	Mudguard-Lh (Grey)	£113.32 £94.43
30	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
31	MO1137-0088-01 Available to backorder	Support Plate	£2.26 £1.88
33	MO337491254/0 Available to backorder	Mudguard-Rh (Grey)	£113.32 £94.43
35	MO337110332/0 Available to backorder	Moulding Right-Grey	£53.50 £44.58
36	MO337110331/0 Available to backorder	Moulding-Left (Grey)	£56.32 £46.93
37	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
38	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
39	MO112523040/0 In stock	Washer	£1.49 £1.24
40	MO112154510/0 In stock	Nut	£1.55 £1.29
43	MO337491256/0 Available to backorder	Inner Mud Guard-Rh (Park)	£104.18 £86.82
44	MO1134-4012-03 Available to backorder	Support. Right	£18.43 £15.36
46	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
47	MO1134-4012-04 Available to backorder	Support. Left	£18.43 £15.36
48	MO337491257/0 Available to backorder	Inner Mudguard-Lh (Park)	£104.18 £86.82
