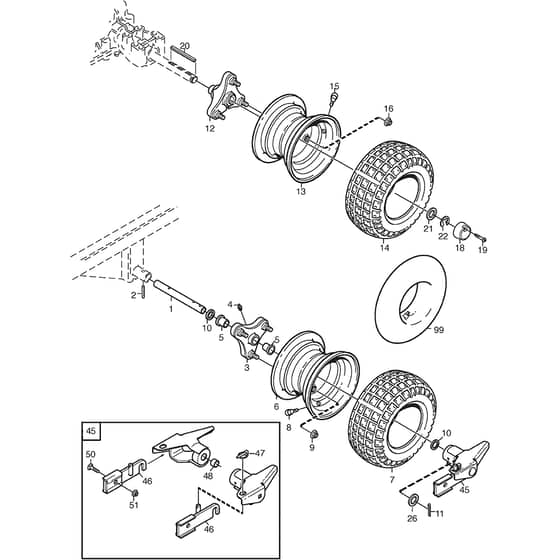

PARK 320 M - 2015 - 2F6120520/S15 - Stiga Front Mower Wheel Diagram

Description

Stiga PARK 320 M Parts Diagram

Product Name - PARK 320 M

Model Year - 2015

Model Type - P 901 C

Art.N - 2F6120520/S15

Engine Model - B&S PowerBuilt 4155 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-0075-01 Available to backorder	Front Axle	£43.64 £36.37
2	MO112645710/0 Available to backorder	Locating Pin	£2.12 £1.77
3	MO1134-4844-05 Available to backorder	Wheel Hub Assy	£59.12 £49.27
4	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
5	MO137038009/0 In stock	Bushing	£5.76 £4.80
10	MO1134-0341-01 Available to backorder	Washer	£6.62 £5.52
11	MO9599-0080-02 Available to backorder	Cotter Pin	£2.12 £1.77
12	MO1134-4844-02 Available to backorder	Wheel Hub Assy	£56.16 £46.80
13	MO187000454/0 Available to backorder	Rim	£83.75 £69.79
14	MO9545-0116-00 In stock	Tyre 16 x 7.50 - 8	£85.16 £70.97
15	MO9545-0500-00 Available to backorder	Valve Assy.	£5.35 £4.46
16	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
18	MO1134-4796-01 Available to backorder	Hub Cap	£5.06 £4.22
19	MO9947-0540-19 Available to backorder	Screw	£1.97 £1.64
20	MO1134-2471-01 Available to backorder	Key	£8.94 £7.45
22	MO9653-0001-04 Available to backorder	Lock Ring	£2.26 £1.88
26	MO9699-0042-02 Available to backorder	Washer	£6.62 £5.52
46	MO1134-7465-01 Available to backorder	Attachment Kit Inkl. Support RH + LH + pos 50-51	£63.35 £52.79
47	MO1137-0077-01 In stock	Locking Pin	£3.52 £2.93
48	MO9548-0026-01 Available to backorder	Bearing	£30.97 £25.81
50	MO9898-1035-16 Available to backorder	Screw	£2.81 £2.34
51	MO9739-1031-22 In stock	Nut	£1.97 £1.64
99	MO9545-0203-00 Available to backorder	Inner Tube 16 X 6.50	£30.97 £25.81
