PARK 320 M - 2015 - 2F6120520/S15 - Stiga Front Mower Frame Diagram

Description

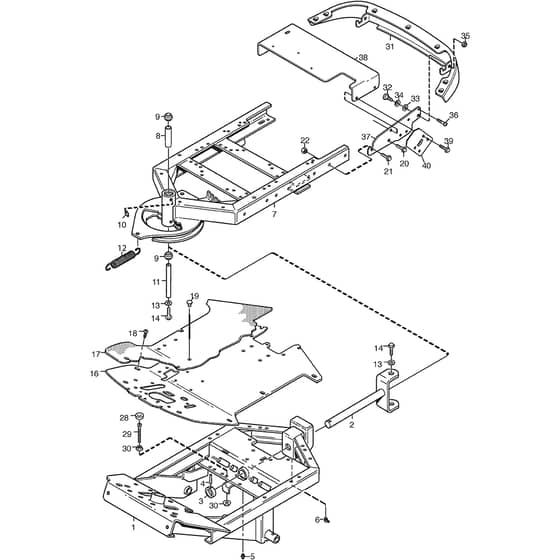

Stiga PARK 320 M Parts Diagram

Product Name - PARK 320 M

Model Year - 2015

Model Type - P 901 C

Art.N - 2F6120520/S15

Engine Model - B&S PowerBuilt 4155 AVS

	Part No.	Details
1	MO387800011/0 Available to backorder	Frame Front	£837.60 £698.00
2	MO1137-1119-02 Available to backorder	Fork	£168.91 £140.76
3	MO1134-0031-00 In stock	Pivot Shaft Stop	£24.36 £20.30
4	MO9595-0262-00 In stock	Locating Pin	£1.79 £1.49
6	MO9501-0504-01 Available to backorder	Grease Nipple M6 90 90°	£3.25 £2.71
8	MO1134-5705-01 Available to backorder	Spacer	£22.81 £19.01
9	MO9547-0001-00 In stock	Bearing	£29.56 £24.63
10	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
11	MO1134-5988-01 Available to backorder	Centre Shaft	£22.38 £18.65
12	MO1134-2171-01 In stock	Spring	£19.28 £16.07
13	MO112521360/0 In stock	Washer	£1.55 £1.29
14	MO9959-1025-16 Available to backorder	Screw	£2.69 £2.24
16	MO1134-6586-01 Available to backorder	Floor Plate	£168.91 £140.76
17	MO114369182/3 Available to backorder	Floor Mat Hst	£63.34 £52.78
18	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
19	MO9403-0048-70 Available to backorder	Cover Plug	£9.28 £7.73
21	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
22	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
30	MO9739-0531-22 Available to backorder	Nut	£2.22 £1.85
31	MO1134-5337-02 Available to backorder	Bumper Assy-Rear Grey	£204.13 £170.11
32	MO1134-0240-00 In stock	Screw	£8.80 £7.33
33	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
34	MO9665-0002-00 Available to backorder	Washer	£2.24 £1.87
35	MO112155000/0 In stock	Nut	£1.55 £1.29
36	MO9943-0516-16 In stock	Screw	£1.26 £1.05
39	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
