PARK 320 G - 2018-2020 - 2F6120241/ST1 - Stiga Front Mower K46CI Diagram

Name: PARK 320 G - 2018-2020 - 2F6120241/ST1 - Stiga Front Mower K46CI Diagram
SKU: park_320_g_2f6120241_st1_k46ci-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

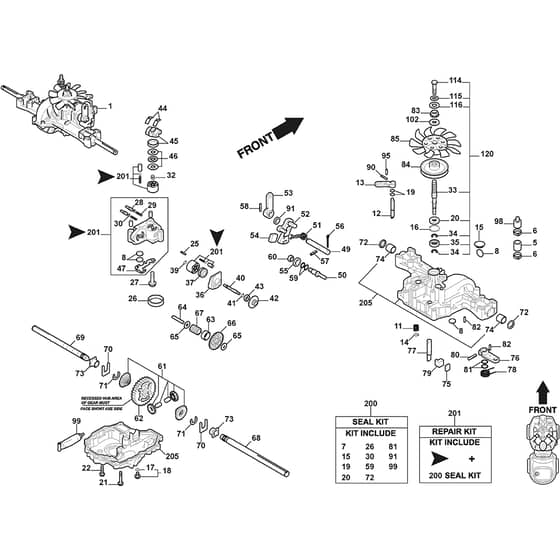

PARK 320 G - 2018-2020 - 2F6120241/ST1 - Stiga Front Mower K46CI Diagram

Description

Stiga PARK 320 G Parts Diagram

Product Name - PARK 320 G

Model Year - 2018-2020

Model Type - P 901 C

Art.N - 2F6120241/ST1

Engine Model - ST450

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1137-0123-01 Available to backorder	Transaxle K46Ci	£1,554.77 £1,295.64
5	MO1139-1301-01 Available to backorder	Tube	£10.90 £9.08
6	MO1139-1336-01 Available to backorder	Cobra Clip	£6.76 £5.63
8	MO1139-1150-01 Available to backorder	Magnet	£8.24 £6.87
11	MO1139-1347-01 Available to backorder	Spring	£4.52 £3.77
13	MO1139-1189-01 Available to backorder	By-Pass Lever	£9.19 £7.66
14	MO1139-1161-01 Available to backorder	Ring	£1.55 £1.29
15	MO1139-1735-01 In stock	Bore Plug	£9.61 £8.01
16	MO1139-1104-01 Available to backorder	Snap Ring	£4.52 £3.77
17	MO1139-1103-01 Available to backorder	Washer	£6.31 £5.26
18	MO1139-1500-01 Available to backorder	Drain Bolt Kit	£6.60 £5.50
19	MO1139-1117-01 Available to backorder	O-Ring	£4.52 £3.77
20	MO1139-1119-01 Available to backorder	Seal 15357	£6.10 £5.08
21	MO1139-1295-01 Available to backorder	Screw	£4.94 £4.12
25	MO1139-1158-01 Available to backorder	Pin	£4.52 £3.77
26	MO1139-1405-01 Available to backorder	Filter	£22.76 £18.97
28	MO1139-1468-01 Available to backorder	Ids Valve	£13.87 £11.56
29	MO1139-1243-01 Available to backorder	Spring	£4.36 £3.63
30	TT168T2084770 Available to backorder	Filter	£2.46 £2.05
32	MO1139-1245-01 Available to backorder	Pump Spring	£4.81 £4.01
34	MO1139-1750-01 Available to backorder	Ring	£4.52 £3.77
35	MO1139-1110-01 Available to backorder	Ball Bearing	£17.98 £14.98
36	MO1139-1157-01 Available to backorder	Housing	£18.31 £15.26
37	MO1139-1501-01 Available to backorder	Bearing	£48.10 £40.08
39	MO1139-1160-01 Available to backorder	Washer	£4.52 £3.77
40	MO1139-1353-01 Available to backorder	Motor Shaft	£39.61 £33.01
41	MO1139-1021-01 Available to backorder	Snap Ring	£4.52 £3.77
42	MO1139-1272-01 Available to backorder	Motor Gear	£23.20 £19.33
43	MO1139-1453-01 Available to backorder	Bearing	£18.77 £15.64
45	MO1139-2691-01 Available to backorder	Swash Plate	£45.26 £37.72
46	MO1139-1508-01 Available to backorder	Thrust Bearing Kit	£69.31 £57.76
51	MO1139-1407-01 Available to backorder	Torsion Spring	£12.16 £10.13
52	MO1139-1409-01 Available to backorder	Lever	£56.11 £46.76
53	MO1139-1325-01 Available to backorder	Control Lever	£27.17 £22.64
55	MO1139-1102-01 Available to backorder	Washer	£5.76 £4.80
56	MO1139-1355-01 Available to backorder	Cotter Pin	£4.52 £3.77
57	MO1139-1329-01 Available to backorder	Pin	£4.82 £4.02
58	MO1139-1285-01 Available to backorder	Pin	£4.52 £3.77
59	MO1139-1115-01 Available to backorder	O-Ring	£4.52 £3.77
60	MO1139-1127-01 Available to backorder	Nut	£4.52 £3.77
61	MO1139-1404-01 Available to backorder	Diff.Gear Kit	£73.56 £61.30
62	MO1139-1258-01 Available to backorder	Final Gear	£111.76 £93.13
63	MO1139-1255-01 Available to backorder	Collar	£9.89 £8.24
64	MO1139-1256-01 Available to backorder	Reduction Shaft	£14.70 £12.25
205	MO1139-2756-01 Available to backorder	Upper.Lower Housing Kit	£615.36 £512.80
