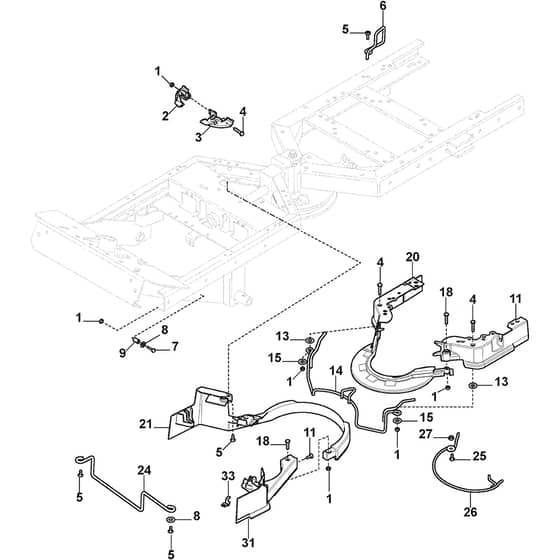

PARK 320 - 2016-2019 - 2F6120511/S16 - Stiga Front Mower Belt Protection Diagram

Name: PARK 320 - 2016-2019 - 2F6120511/S16 - Stiga Front Mower Belt Protection Diagram
SKU: park_320_2f6120511_s16_belt_protection-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 320 - 2016-2019 - 2F6120511/S16 - Stiga Front Mower Belt Protection Diagram

Description

Stiga PARK 320 Parts Diagram

Product Name - PARK 320

Model Year - 2016-2019

Model Type - P 901 C

Art.N - 2F6120511/S16

Engine Model - B&S Intek 4155 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112154510/0 In stock	Nut	£1.55 £1.29
2	MO337600010/0 Available to backorder	Protection	£4.08 £3.40
3	MO337600011/0 Available to backorder	Protection	£3.94 £3.28
4	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
5	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
7	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
8	MO112523050/0 In stock	Washer	£1.55 £1.29
9	MO1134-1565-14 Available to backorder	Spacer	£1.82 £1.52
11	MO337060001/1 Available to backorder	Belt Cover	£6.90 £5.75
13	MO112524010/0 Available to backorder	Washer	£1.82 £1.52
14	MO337785113/1 Available to backorder	Support	£58.62 £48.85
15	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
18	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
20	MO337060000/2 Available to backorder	Belt Cover	£7.46 £6.22
21	MO337060002/0 Available to backorder	Belt Cover	£11.12 £9.27
24	MO137294100/0 Available to backorder	Belt Guide	£26.96 £22.47
25	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
26	MO137294105/0 Available to backorder	Belt Guide	£32.38 £26.98
27	MO112154330/0 In stock	Nut	£1.55 £1.29
31	MO337060003/0 Available to backorder	Belt Cover	£6.76 £5.63
33	MO322545159/0 Available to backorder	Fixing Plate	£1.55 £1.29
