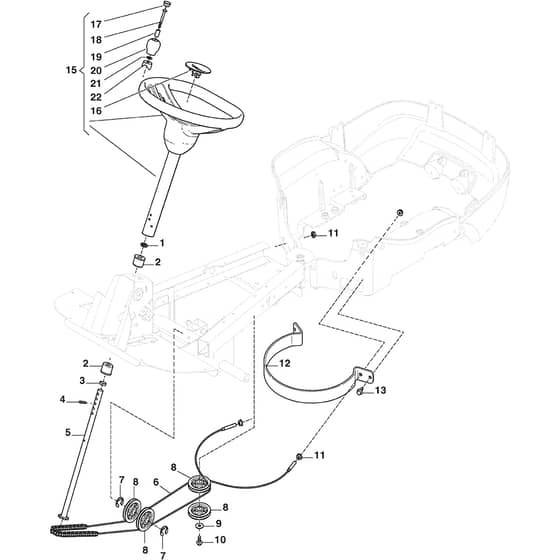

PARK 300 MC - 2024-2025 - 2F5820245/ST1 - Stiga Front Mower Steering Diagram

Description

Stiga PARK 300 MC Parts Diagram

Product Name - PARK 300 MC

Model Year - 2024-2025

Model Type - V 302 S

Art.N - 2F5820245/ST1

Engine Model -

	Part No.	Details
1	MO9699-0103-02 Available to backorder	Washer	£2.12 £1.77
2	MO1134-1901-01 Available to backorder	Bearing	£11.95 £9.96
3	MO1134-2837-01 Available to backorder	Spacer	£9.17 £7.64
4	MO9595-0210-00 Available to backorder	Locating Pin	£7.87 £6.56
5	MO1137-0905-01 Available to backorder	Steering Column	£42.22 £35.18
6	MO387283200/1 In stock	Chain	£57.71 £48.09
7	MO9653-0001-04 Available to backorder	Lock Ring	£2.24 £1.87
8	MO1134-9025-01 Available to backorder	Steering Pulley Sats 2 st.kit of 2	£20.69 £17.24
9	MO112523060/0 In stock	Washer	£1.55 £1.29
11	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
12	MO1137-0749-01 Available to backorder	Bracket	£53.22 £44.35
13	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
15	MO387962001/1 Available to backorder	Steering Wheel	£183.01 £152.51
16	MO1137-1000-01 Available to backorder	Steering Plate Cover	£14.35 £11.96
17	MO9403-0062-01 Available to backorder	Cap	£1.39 £1.16
18	MO9997-0680-12 Available to backorder	Screw	£1.73 £1.44
19	MO1134-1565-14 Available to backorder	Spacer	£1.84 £1.53
20	MO1134-3751-01 Available to backorder	Knob	£8.45 £7.04
21	MO112523040/0 In stock	Washer Replaced by 112523040.0	£1.55 £1.29
22	MO1137-1005-01 Available to backorder	Support	£1.55 £1.29
