PARK 300 MC - 2024-2025 - 2F5820245/ST1 - Stiga Front Mower PTO Diagram

Name: PARK 300 MC - 2024-2025 - 2F5820245/ST1 - Stiga Front Mower PTO Diagram
SKU: park_300_mc_2f5820245_st1_pto-group
Price: 1.29 GBP
Availability: InStock

Part No. park_300_mc_2f5820245_st1_pto-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 300 MC - 2024-2025 - 2F5820245/ST1 - Stiga Front Mower PTO Diagram

Description

Stiga PARK 300 MC Parts Diagram

Product Name - PARK 300 MC

Model Year - 2024-2025

Model Type - V 302 S

Art.N - 2F5820245/ST1

Engine Model -

	Part No.	Details
1	MO1137-0791-01 Available to backorder	Lever	£18.08 £15.07
2	MO387605008/0 In stock	Tension Roller (Grey)	£35.20 £29.33
3	MO9959-1025-16 Available to backorder	Screw	£2.69 £2.24
4	MO1134-5548-01 In stock	Spacer	£13.94 £11.62
5	MO1137-0918-01 Available to backorder	Lever	£20.69 £17.24
6	MO1134-5824-01 In stock	Spring	£5.48 £4.57
7	MO1134-9167-02 In stock	Belt	£31.20 £26.00
8	MO387605005/0 Available to backorder	Belt Pulley	£87.28 £72.73
11	MO1134-9172-01 Available to backorder	Belt	£32.11 £26.76
12	MO118399074/0 Available to backorder	Magnet Clutch REACH	£344.90 £287.42
16	MO387605006/0 Available to backorder	Belt Pulley	£147.79 £123.16
17	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
20	MO387773515/0 Available to backorder	Bracket	£12.67 £10.56
22	MO112794400/0 Available to backorder	Screw Replaced by 9997-1040-16	£6.90 £5.75
22	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
23	MO387205002/1 Available to backorder	Lever	£88.69 £73.91
24	MO1134-6314-01 In stock	Tension Arm Attachment	£8.66 £7.22
25	MO112792410/0 Available to backorder	Screw	£1.63 £1.36
25	MO112689500/0 Available to backorder	Screw Replaced by 112792410.0	£1.63 £1.36
26	MO112154510/0 In stock	Nut Replaced by 9930-1050-12	£1.55 £1.29
27	MO112794987/0 Available to backorder	Screw	£1.97 £1.64
27	MO9930-1050-12 Available to backorder	Screw	£2.56 £2.13
28	MO9699-0030-02 In stock	Washer	£1.97 £1.64
29	MO1134-4619-01 Available to backorder	Spacer	£9.17 £7.64
30	MO9739-1031-22 In stock	Nut	£1.97 £1.64
33	MO1137-1029-01 Available to backorder	Spring	£3.52 £2.93

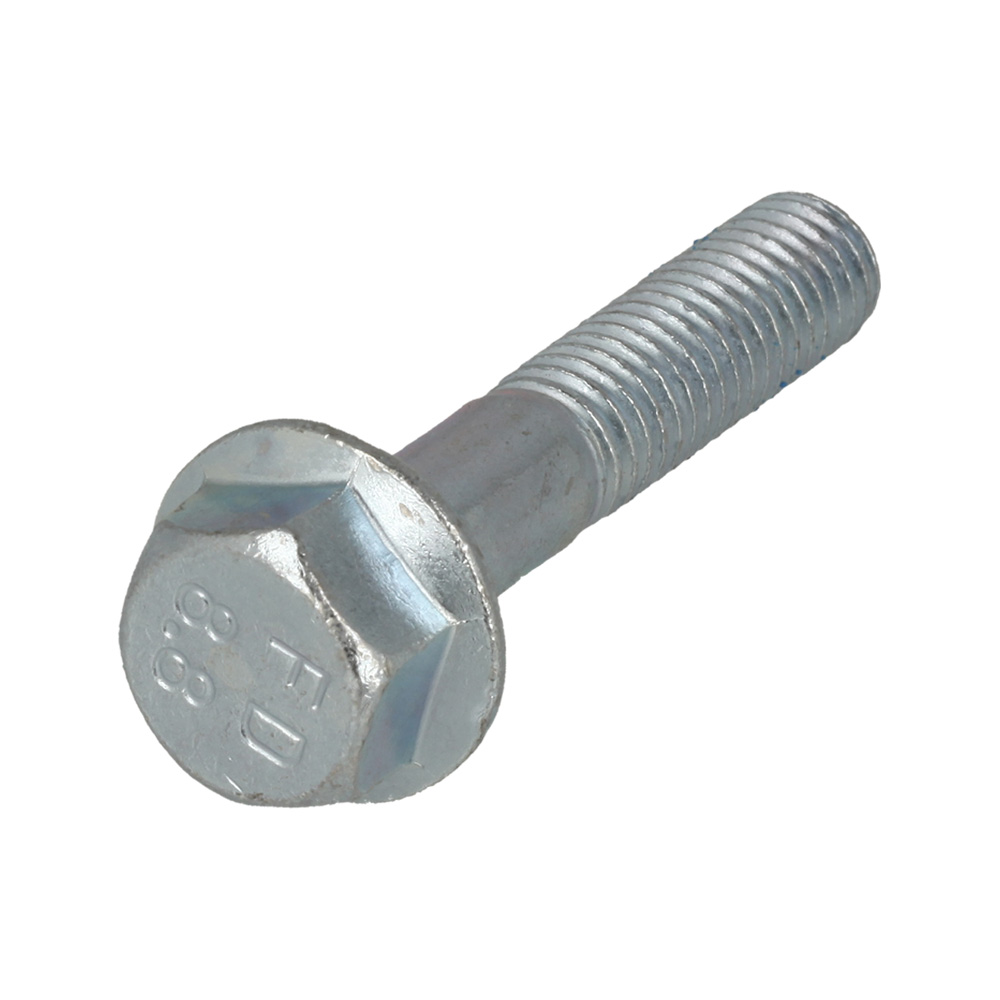

34	MO1134-7829-01 Available to backorder	Screw	£1.97 £1.64

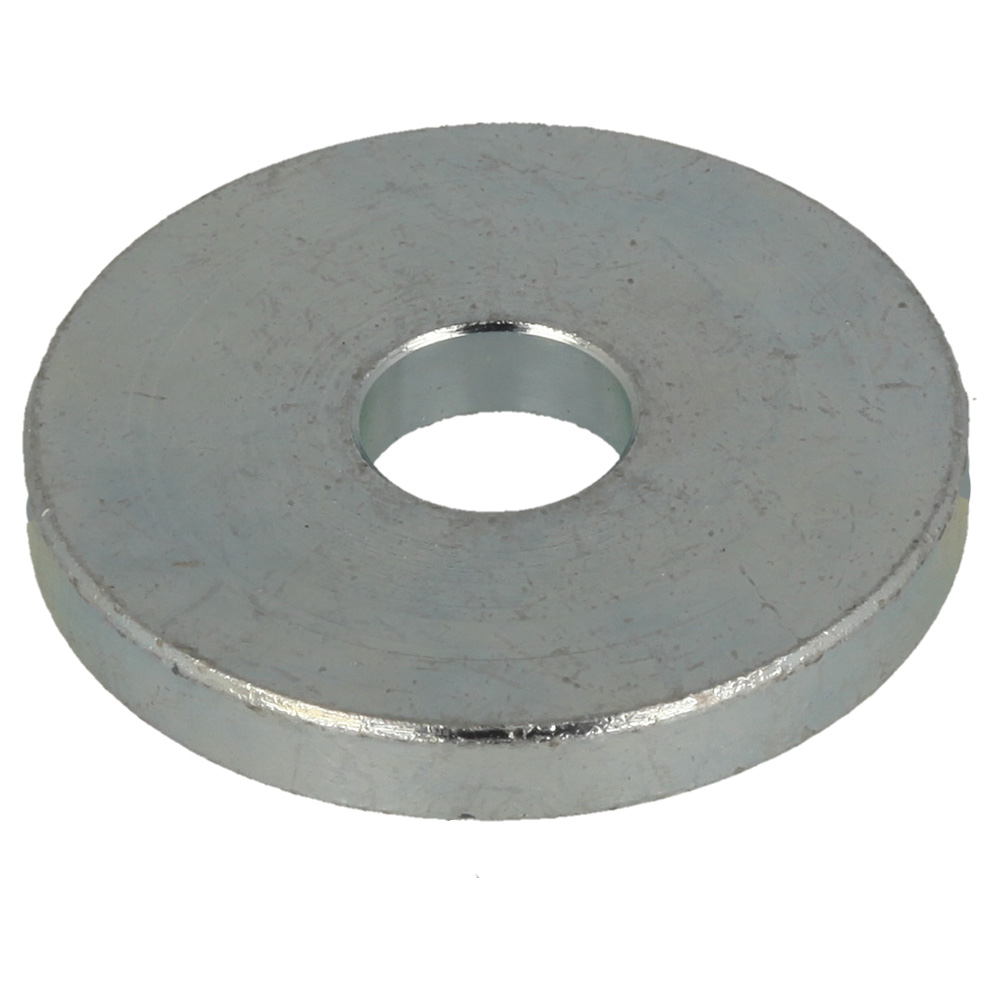

35	MO1134-5127-01 Available to backorder	Washer	£5.06 £4.22

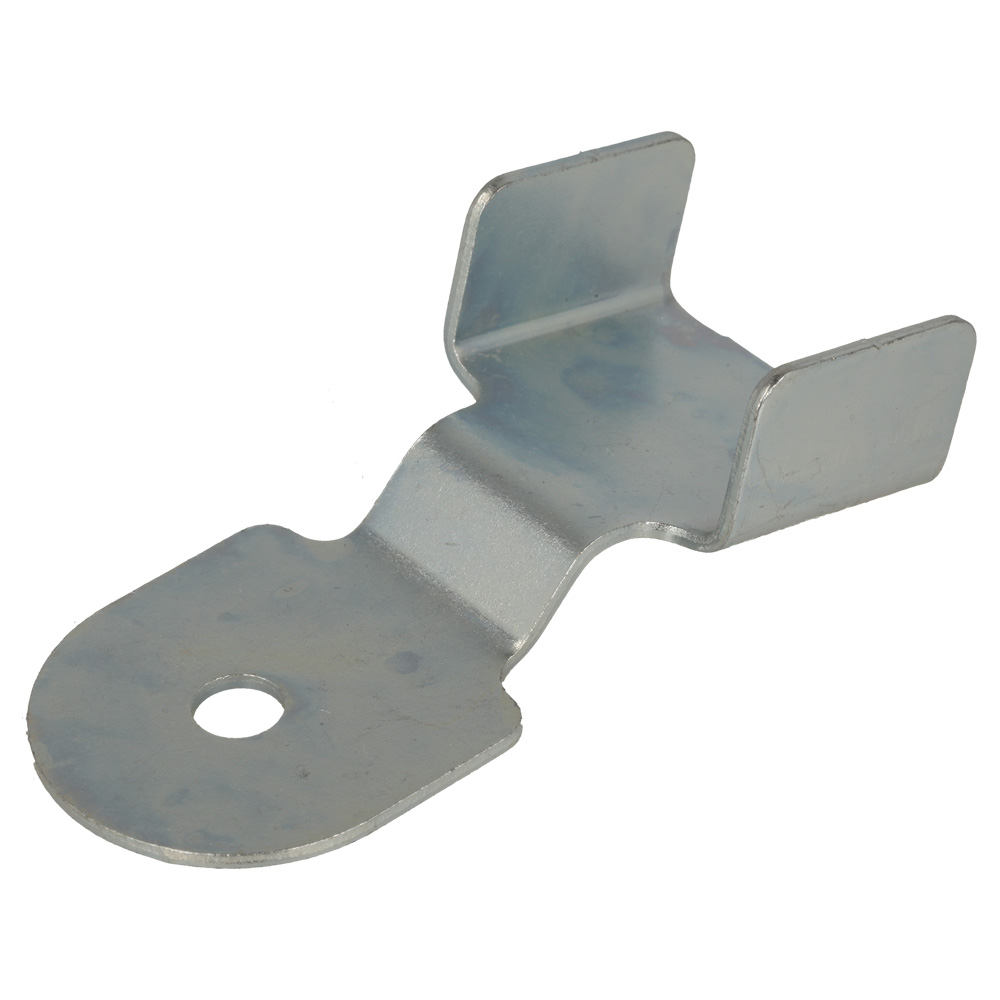

36	MO1137-0800-01 Available to backorder	Bracket	£6.34 £5.28
37	MO112521350/0 In stock	Washer	£1.55 £1.29
38	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
39	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
