PARK 300 MC - 2024-2025 - 2F5820245/ST1 - Stiga Front Mower Controls Diagram

Name: PARK 300 MC - 2024-2025 - 2F5820245/ST1 - Stiga Front Mower Controls Diagram
SKU: park_300_mc_2f5820245_st1_controls-group
Price: 1.29 GBP
Availability: InStock

Part No. park_300_mc_2f5820245_st1_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 300 MC - 2024-2025 - 2F5820245/ST1 - Stiga Front Mower Controls Diagram

Description

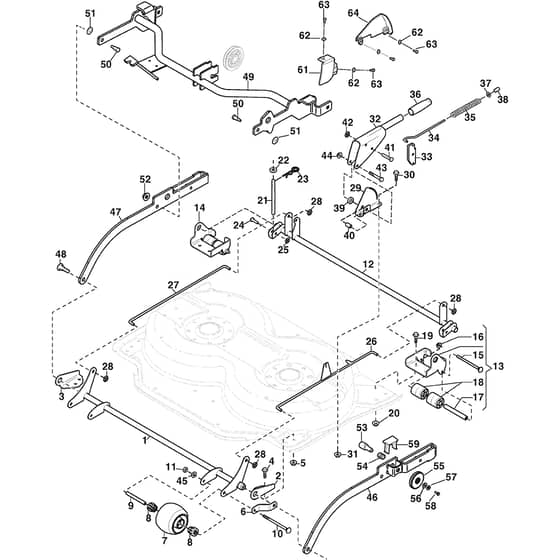

Stiga PARK 300 MC Parts Diagram

Product Name - PARK 300 MC

Model Year - 2024-2025

Model Type - V 302 S

Art.N - 2F5820245/ST1

Engine Model -

	Part No.	Details
1	MO387000160/0 Available to backorder	Front Axle (Grey)	£98.56 £82.13
2	MO387773609/0 Available to backorder	Front Bracket. Lh (Grey)	£11.20 £9.33
3	MO387773607/0 Available to backorder	Front Bracket. Rh (Grey)	£11.20 £9.33
6	MO387318275/0 Available to backorder	Guide-Grey	£5.22 £4.35
7	MO1134-4284-01 In stock	Wheel	£30.77 £25.64
8	MO1134-4319-01 In stock	Bearing	£6.64 £5.53
12	MO387000161/0 Available to backorder	Rear Axle (Grey)	£82.36 £68.63
13	MO1134-6282-01 Available to backorder	Roller-Lh W.Bracket	£56.32 £46.93
14	MO1134-6282-02 Available to backorder	Roller-Rh W.Bracket	£56.32 £46.93
15	MO9897-0813-02 Available to backorder	Screw	£4.93 £4.11
17	MO1134-4318-01 In stock	Wheel Axle	£10.20 £8.50
18	MO1134-9126-01 In stock	Support Rollers Sats 2 st.kit of 2	£52.08 £43.40
21	MO137510321/0 Available to backorder	Pin	£7.97 £6.64
22	MO112521390/0 Available to backorder	Washer	£1.84 £1.53
23	MO9598-2001-02 In stock	Spring Pin	£4.78 £3.98
24	MO9646-0098-22 Available to backorder	Rivet	£2.40 £2.00
25	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
26	MO387000309/0 Available to backorder	Push Rod. Left	£38.00 £31.67
27	MO137033105/0 Available to backorder	Push Rod. Right	£23.58 £19.65
28	MO112604903/0 In stock	Washer	£1.55 £1.29
29	MO1137-0259-01 Available to backorder	Height Adjust Quadrant	£22.26 £18.55
30	MO112800815/0 Available to backorder	Screw	£1.63 £1.36
31	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
32	MO387318273/0 Available to backorder	Height Adjust Lever-Grey	£47.87 £39.89
33	MO1134-6254-01 Available to backorder	Catch Assy	£10.98 £9.15
34	MO1134-5444-01 Available to backorder	Push Rod	£14.00 £11.67
35	MO1134-5445-01 Available to backorder	Spring	£16.82 £14.02
36	MO1134-5503-01 Available to backorder	Handle	£26.56 £22.13
37	MO9699-0087-02 In stock	Washer	£2.22 £1.85
38	MO1134-3051-01 Available to backorder	Locking Knob	£9.17 £7.64
39	MO1134-6286-03 Available to backorder	Spacer	£1.84 £1.53
40	MO1134-1565-16 Available to backorder	Spacer	£7.02 £5.85
41	MO9646-0105-22 Available to backorder	Rivet	£2.94 £2.45
42	MO9672-0006-02 Available to backorder	Lock Washer	£1.97 £1.64
43	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
44	MO112155000/0 In stock	Nut	£1.55 £1.29
45	MO112521350/0 In stock	Washer	£1.55 £1.29
46	MO387785233/0 Available to backorder	Grey Mower Deck Arm. Left	£114.74 £95.62
47	MO387106279/0 Available to backorder	Grey Mower Deck Arm. Right	£130.91 £109.09
48	MO1134-6279-01 Available to backorder	Shoulder Bolt	£2.24 £1.87
49	MO387800021/2 Available to backorder	Rear Axle-Yellow	£429.34 £357.78
50	MO137510305/1 Available to backorder	Pin	£5.34 £4.45
51	MO322672151/0 Available to backorder	Antifriction Washer	£1.84 £1.53
52	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
53	MO137510306/0 Available to backorder	Pin	£9.42 £7.85
54	MO137430104/0 Available to backorder	Spring	£4.08 £3.40
55	MO337394207/0 Available to backorder	Knob	£5.92 £4.93
57	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
58	MO112727807/0 In stock	Screw	£1.55 £1.29
59	MO337110339/1 In stock	Cover	£4.37 £3.64
61	MO337060026/0 Available to backorder	Belt Cover	£6.46 £5.38
62	MO112523040/0 In stock	Washer	£1.55 £1.29
63	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
64	MO337060027/0 Available to backorder	Side Cover	£7.31 £6.09
